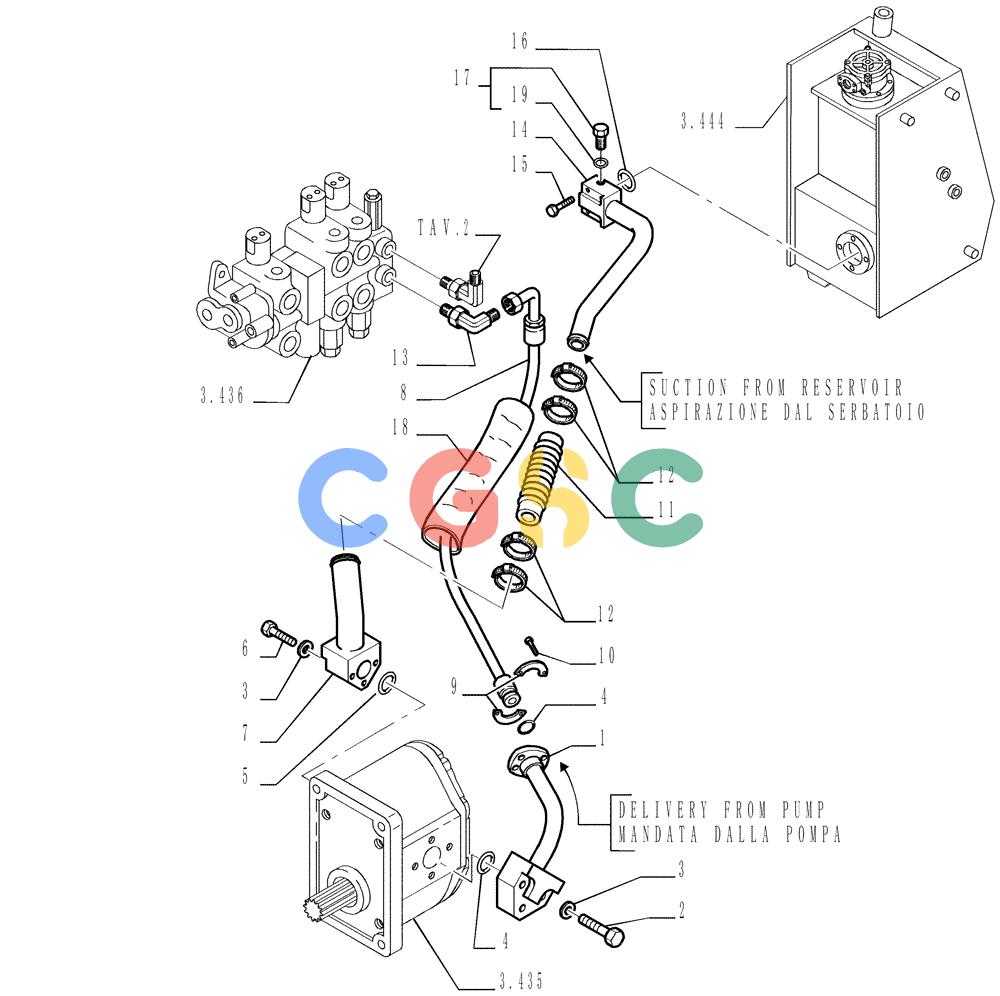

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.434[01]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
523 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76042567 | [1] | RIGID TUBE | TOR- INLET |
| 2. | 11107231 | [3] | SCREW,Hex, M10 x 50mm, Cl 10.9 | LEC Superseded by part number: 75205092, 43249 |
| 3. | 14496631 | [7] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 4. | 70924200 | [2] | O-RING | LEC3,53X32,92 Superseded by part number: 14463780 |
| 5. | 78100250 | [1] | O-RING,39.34mm ID x 2.62mm Width | LEC2,62X39,34 |
| 6. | 11107731 | [3] | SCREW,Hex, M10 x 75mm, Cl 10.9 | LEC Superseded by part number: 86624979 |
| 7. | 76042571 | [1] | RIGID TUBE,46 mm ID, 50 mm OD, 180, 35 mm Length | TOR- SUCTION |
| 8. | 76054828 | [1] | HOSE | TOR- INLET |
| 9. | 76033345 | [2] | FLANGE | LEC |
| 10. | 14420331 | [4] | HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd | LEC |
| 11. | 76054831 | [1] | FLEXIBLE HOSE | TOR |
| 12. | 79083847 | [4] | HOSE CLAMP,M50-70 | LEC |
| 13. | 76046695 | [1] | HYD CONNECTOR | TORA 90° |
| 14. | 76054833 | [1] | RIGID TUBE | TOR |
| 15. | 11107631 | [4] | SCREW,Hex, M10 x 70mm, Cl 10.9 | LEC Superseded by part number: 828-10070 |
| 16. | 70924274 | [1] | O-RING,0.103" Thk x 2.359" ID, -229, Cl 6, 90 Duro | CMI3,53X59,92 Superseded by part number: 9848676 |
| 17. | 10118540 | [1] | PLUG,M10 x 1 x 11, Brass | LECAssy |
| 18. | 76038826 | [1] | BOOT | LEC |
| 19. | 14437585 | [1] | O-RING,8.00mm ID x 1.50mm | IMO |
