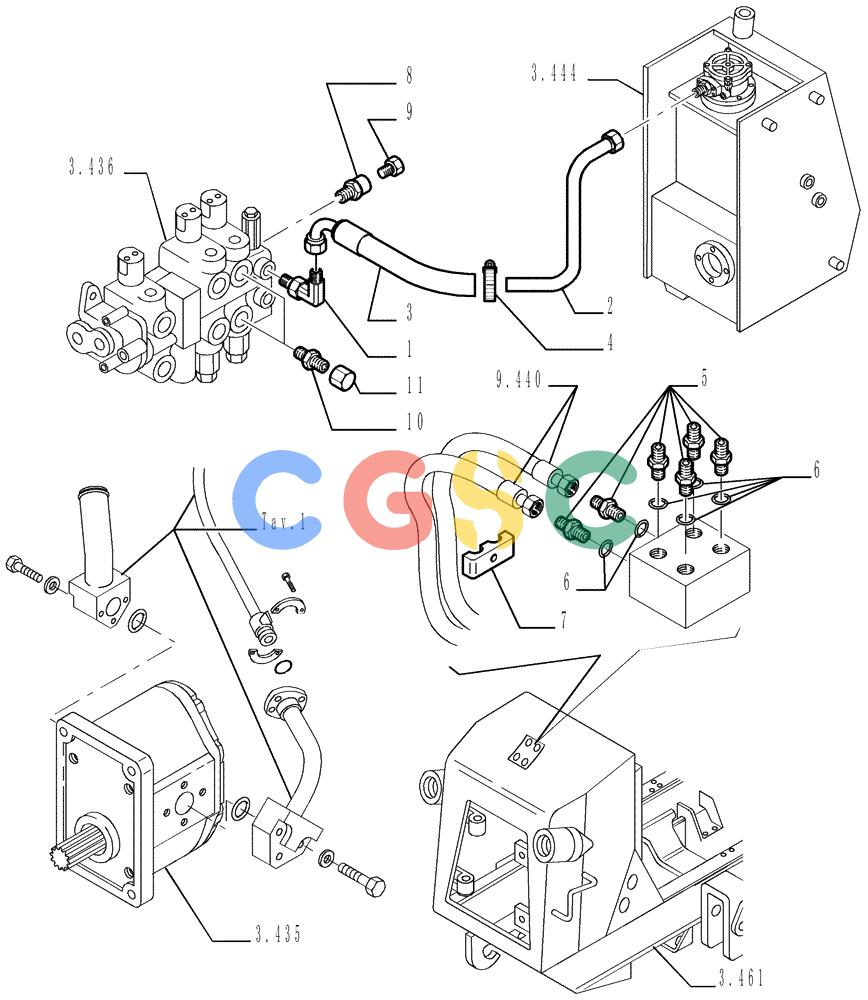

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.434[02]) - HYDRAULIC SYSTEM PIPING New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
921 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76043755 | [1] | HYD CONNECTOR | LECA 90° |
| 2. | 76053699 | [1] | RIGID TUBE | TOR |
| 3. | 76054829 | [1] | HOSE | TOR |
| 4. | 79083845 | [1] | HOSE CLAMP,32mm - 50mm, Worm Gear | LEC32-50 Superseded by part number: 71404506 |
| 5. | 78100321 | [6] | HYD CONNECTOR | TOR16-M22X1,5 Superseded by part number: 86579680 |
| 6. | 70930357 | [6] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | LEC Superseded by part number: 9992069 |
| 7. | 71425615 | [4] | CLIP | TOR Superseded by part number: 84551293 |
| 8. | 76054684 | [1] | HYD CONNECTOR | LEC |
| 9. | 79054460 | [1] | PLUG | LEC |
| 10. | 76042342 | [2] | HYD CONNECTOR | LEC |
| 11. | 78100137 | [2] | PLUG | LEC20 |
