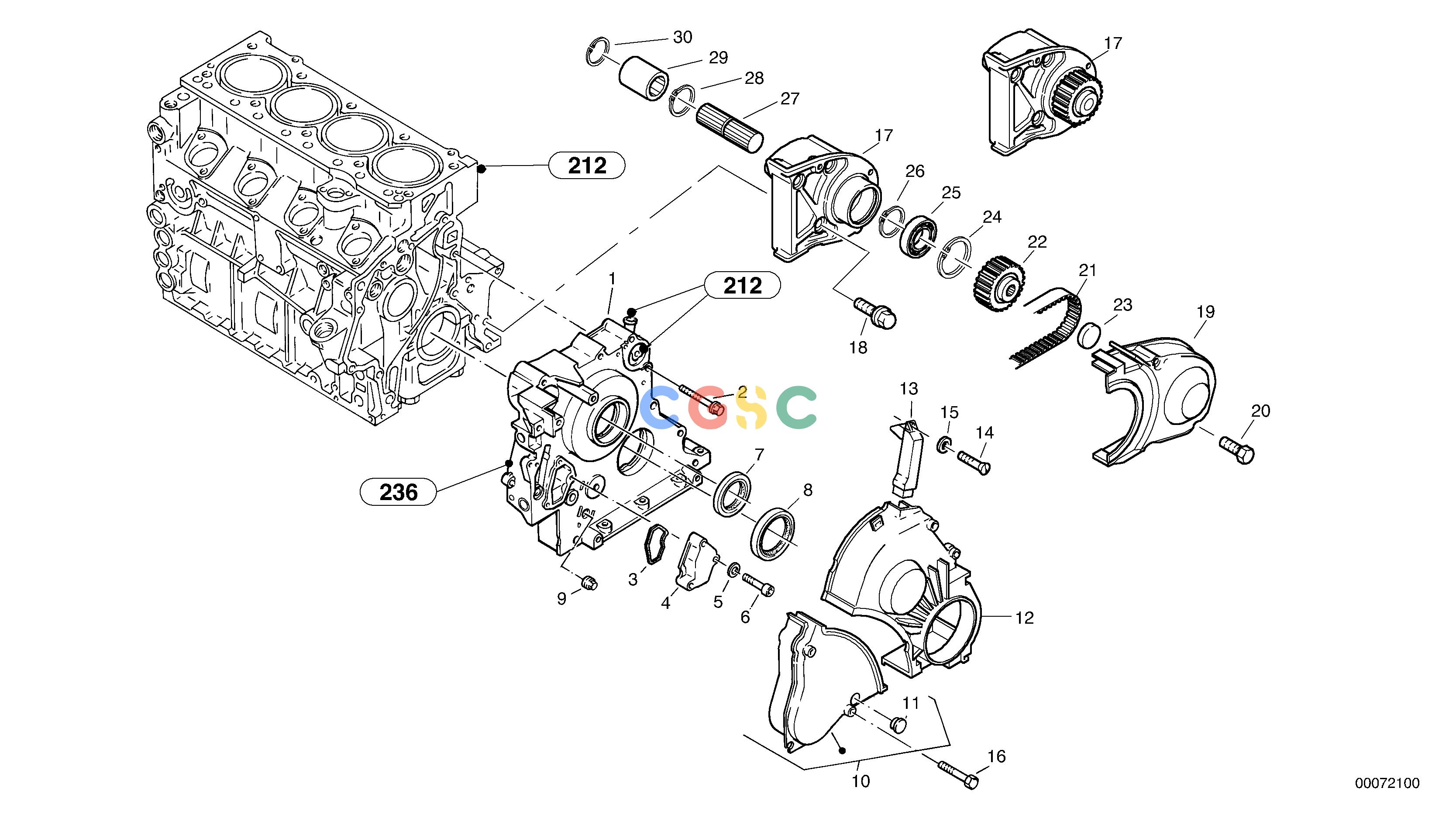

沃尔沃零件查询L35B Timing gear housing (front cover)TYPE 186, 187, 188, 189 SER NO - 29991862201--1872201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
486 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904069
|
[1] |
Front cover
|
|
| 10. |
ZM2290486
|
[1] |
Protective hood
|
|
| 11. |
ZM2904072
|
[1] |
Plug
|
|
| 12. |
ZM2905383
|
[1] |
Protecting casing
|
|
| 13. |
ZM2900130
|
[1] |
Air duct
|
|
| 14. |
ZM2900131
|
[1] |
Screw
|
M4x12
|
| 15. |
VOE955891
|
[1] |
Plain washer
|
A4,3
|
| 16. |
VOE955282
|
[4] |
Hexagon screw
|
M6x70
|
| 17. |
ZM2910193
|
[1] |
Conversion kit
|
|
| 17. |
ZM2910193
|
[1] |
Conversion kit
|
|
| 18. |
ZM2906901
|
[3] |
Screw
|
|
| 2. |
ZM2904100
|
[11] |
Screw
|
|
| 19. |
ZM2906902
|
[1] |
Protecting casing
|
|
| 20. |
ZM7095113
|
[2] |
Screw
|
|
| 21. |
ZM2905399
|
[1] |
Toothed belt
|
|
| 22. |
ZM2905398
|
[1] |
Pulley
|
|
| 23. |
ZM2905397
|
[1] |
Cover
|
|
| 24. |
ZM7094944
|
[1] |
Lock Ring
|
68x2,5
|
| 25. |
ZM2905396
|
[1] |
Bearing
|
|
| 26. |
ZM4332271
|
[1] |
Lock Ring
|
|
| 27. |
ZM2910193
|
[1] |
Conversion kit
|
|
| 28. |
ZM7094951
|
[1] |
Snap ring
|
16x1
|
| 3. |
ZM2904068
|
[1] |
Profil gasket
|
|
| 29. |
ZM4076320
|
[1] |
Plate
|
|
| 29. |
ZM2909959
|
[1] |
Sleeve
|
|
| 30. |
VOE955970
|
[1] |
Retaining ring
|
14x1
|
| 4. |
ZM2904070
|
[1] |
Cover
|
|
| 5. |
VOE955892
|
[3] |
Plain washer
|
B6,4
|
| 6. |
ZM7096552
|
[3] |
Screw
|
M6x35
|
| 7. |
ZM2291470
|
[1] |
Seal
|
|
| 8. |
ZM2290458
|
[1] |
Seal
|
|
| 9. |
ZM8096511
|
[1] |
Screw plug
|
M14x1,5
|
