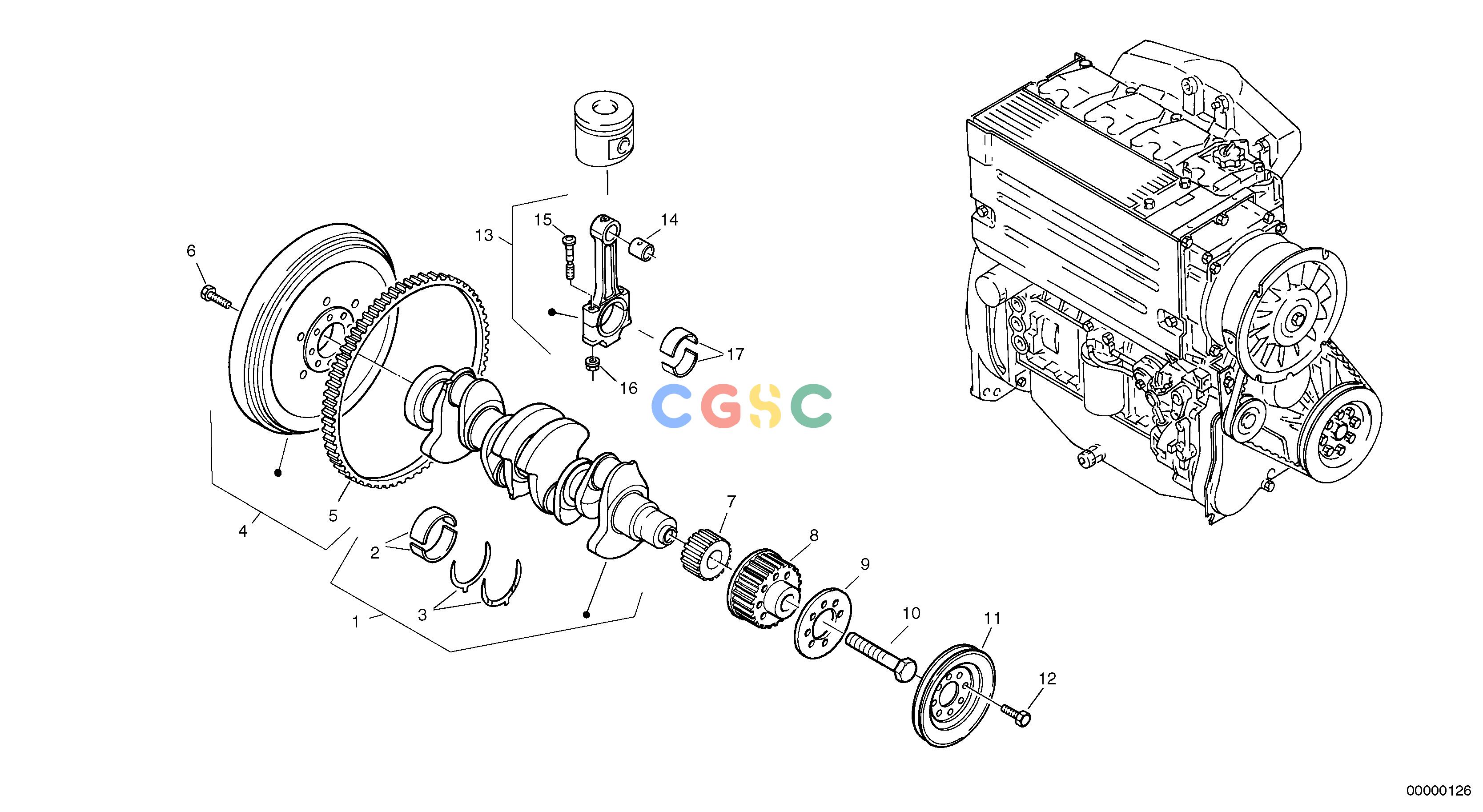

沃尔沃零件查询L35B CrankshaftTYPE 186, 187, 188, 189 SER NO - 29991862201--1872201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2905351
|
[1] |
Crankshaft
|
|
| 5. |
VOE17471748
|
[1] |
Starter Gear Ri
|
1862359-/1872211-/
1882221-/1892243-
|
| 6. |
ZM2290407
|
[8] |
Screw
|
|
| 7. |
ZM2290408
|
[1] |
Toothed belt wheel
|
|
| 8. |
ZM2290409
|
[1] |
Toothed belt wheel
|
|
| 9. |
ZM2290410
|
[1] |
Intermediate piece
|
|
| 10. |
ZM2290411
|
[1] |
Screw
|
|
| 11. |
ZM2905385
|
[1] |
V-belt pulley
|
|
| 12. |
ZM2908482
|
[8] |
Screw
|
|
| 13. |
VOE11715310
|
[4] |
Connecting rod
|
|
| 14. |
ZM2290431
|
[1] |
Bushing
|
33,07 - 33,11 mm
|
| 2. |
ZM2290402
|
[REQ] |
Crankshaft bearing
|
69,50 mm
|
| 14. |
ZM2900544
|
[REQ] |
Bushing
|
33,32 - 33,36 mm
|
| 15. |
ZM2904106
|
[2] |
Screw
|
|
| 16. |
ZM2290415
|
[2] |
Nut
|
|
| 17. |
ZM2900543
|
[REQ] |
Big end bearing
|
54,50 mm
|
| 17. |
ZM2900542
|
[REQ] |
Big end bearing
|
54,75 mm
|
| 17. |
ZM2290432
|
[4] |
Big end bearing
|
55,00 mm
|
| 2. |
ZM2900539
|
[REQ] |
Crankshaft bearing
|
69,75 mm
|
| 2. |
ZM2290400
|
[5] |
Crankshaft bearing
|
70,00 mm
|
| 3. |
VOE20944762
|
[1] |
Thrust Washer
|
2,40 mm
|
| 3. |
VOE20944769
|
[REQ] |
Thrust Washer
|
2,60 mm
|
| 4. |
ZM2904103
|
[1] |
Fly wheel
|
-1862358/-1872210/
-1882221/-1892242
|
| 4. |
ZM2908532
|
[1] |
Flywheel
|
1862359-/1872211-/
1882221-/1892243-
|
| 5. |
ZM2904104
|
[1] |
Gear ring
|
-1862358/-1872210/
-1882220/-1892242
|
