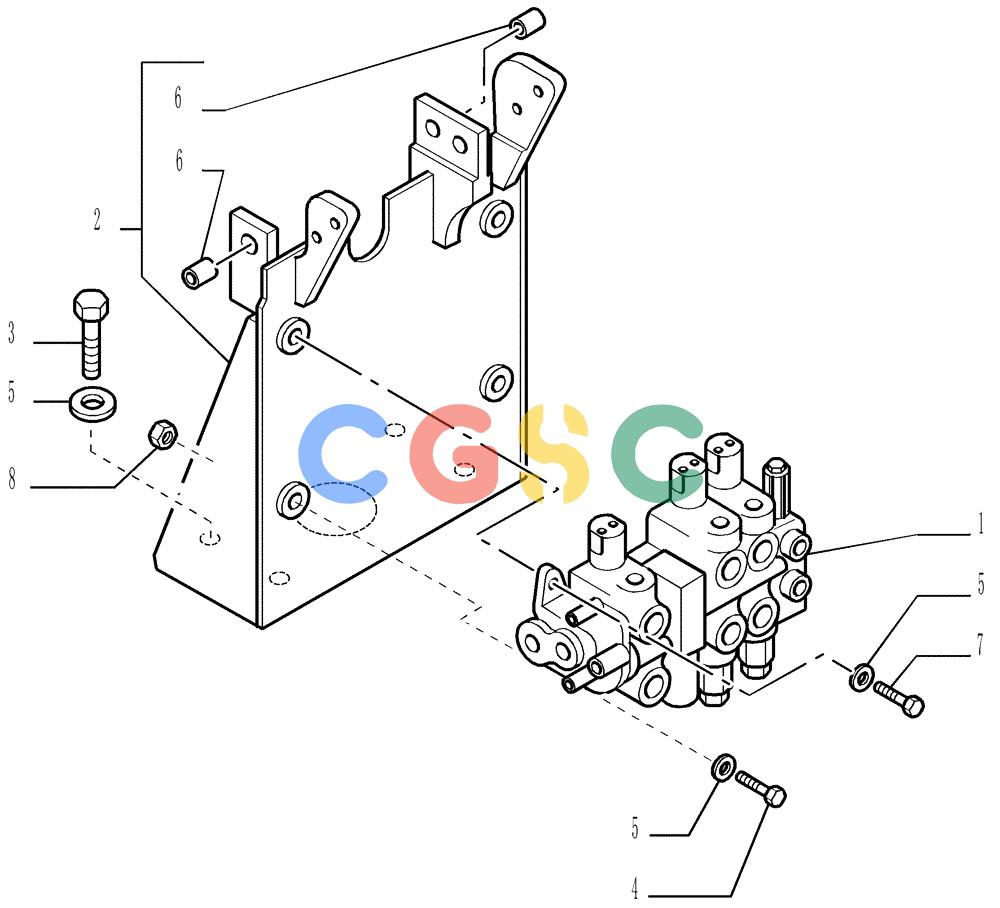

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.436[01]) - EQUIPMENT CONTROL VALVE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054834 | [1] | CONTROL VALVE | TOR |
| 2. | 76066376 | [1] | SUPPORT | TOR- ASSY |
| 3. | 11112431 | [4] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 4. | 11112831 | [3] | SCREW,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11125434 |
| 5. | 14496731 | [8] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 6. | 79087112 | [2] | BUSHING,Needle, 10mm ID x 14mm OD x 10mm W | LEC |
| 7. | 11113231 | [1] | BOLT,Hex, M12 x 50mm, Cl 10.9 | BHB Superseded by part number: 337476 |
| 8. | 11702921 | [1] | NUT,M12, Cl 10 | LEC Superseded by part number: 17038425 |
