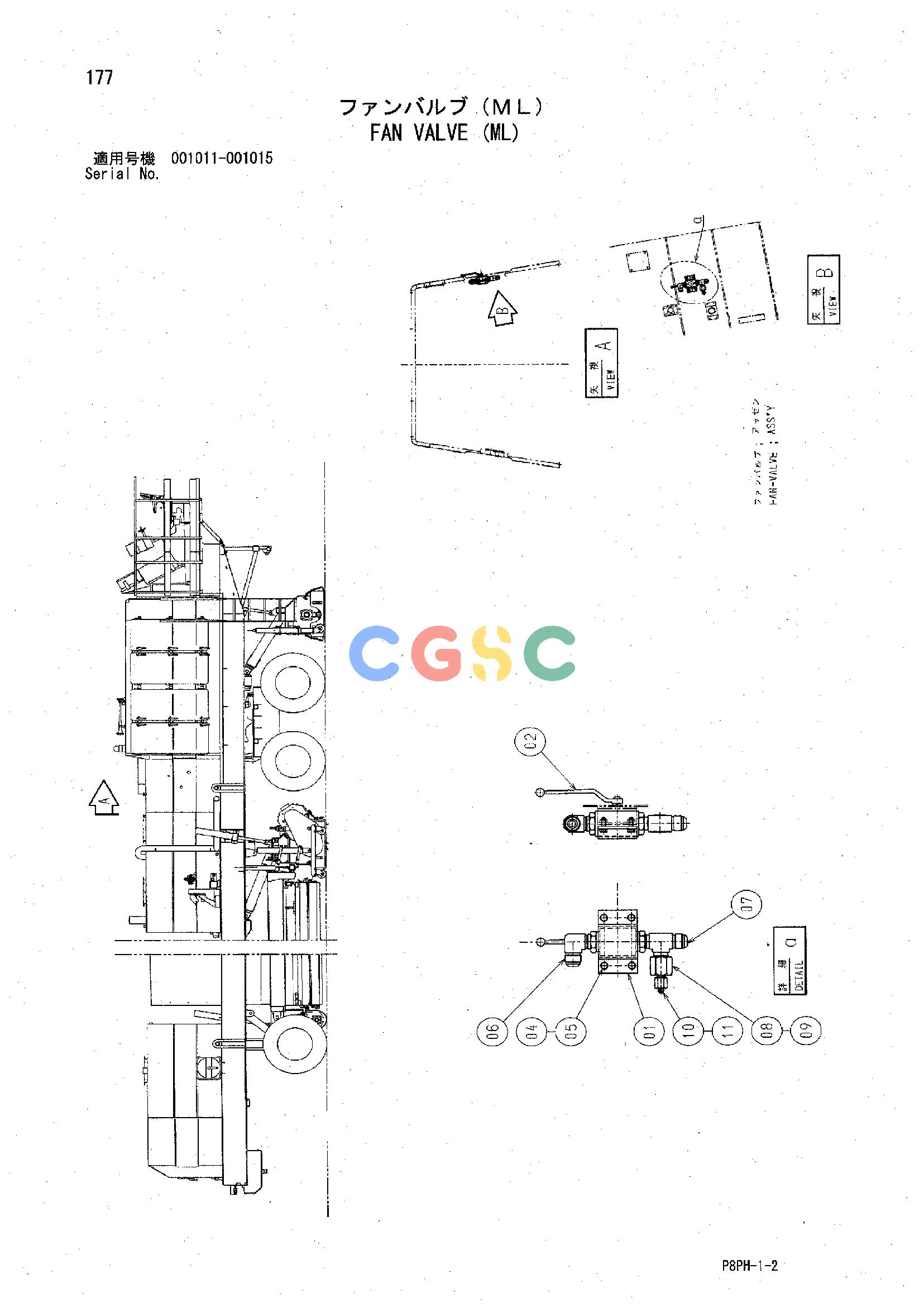

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | Y407981 | [1] | CLAMPING RING | |
| 02. | 88-0133 | [1] | VALVE;BALL | HYCON KHB-25-SAE-1-1-1-4 |
| 04. | A590908 | [4] | WASHER;SPRING | |
| 05. | J900825 | [4] | BOLT | |
| 06. | 88-2103 | [1] | ELBOW | PARKER 16C50MXSS |
| 07. | 88-2104 | [1] | TEE | PARKER 16R50XSS |
| 08. | 88-2100 | [1] | REDUCER | PARKER 16-8TRTXSS |
| 09. | 88-2101 | [1] | NUT | PARKER 16BMTXSS |
| 10. | 88-2062 | [1] | REDUCER | PARKER 8-4TRTXSS |
| 11. | 88-2001 | [1] | NUT | PARKER 8BMTXSS |
