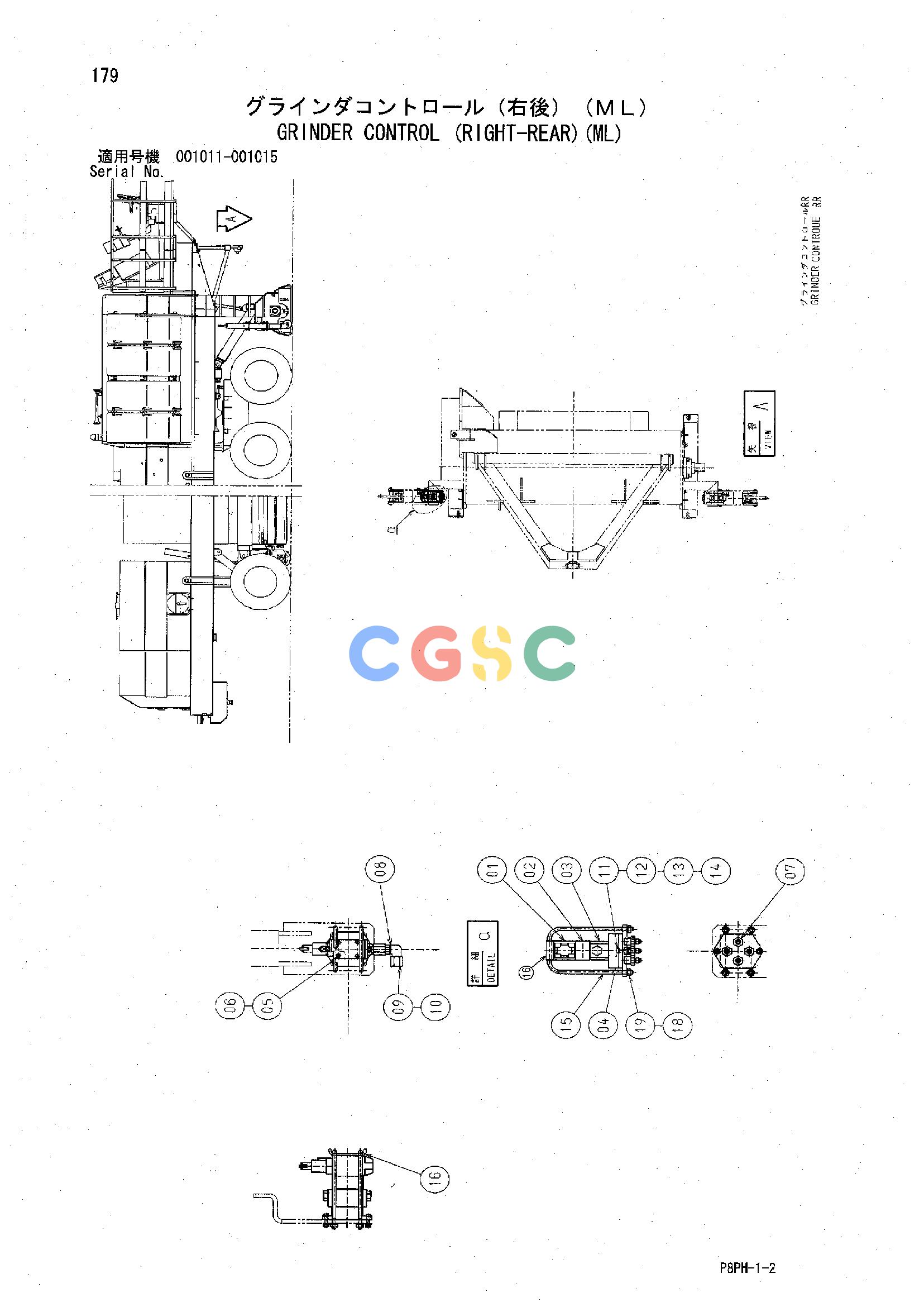

日立零件查询（AR2000）GRINDER CONTROL (RIGHT-REAR)(ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
556 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | 88-0081 | [1] | VALVE;DIRECTIONAL | REXROTH 4WRM6D5X |
| 02. | 88-0078 | [1] | VALVE;SHUTTLE | SUN CDAA-EBN-GBS |
| 03. | 88-0077 | [1] | VALVE;CHECK | REXROTH Z2S 6-1-6X/V |
| 04. | Y410334 | [1] | SUB PLATE | |
| 05. | M340502 | [4] | BOLT;SOCKET | |
| 06. | A590905 | [4] | WASHER;SPRING | |
| 07. | 4215649 | [4] | ADAPTER;S | |
| 08. | 88-2012 | [1] | ELBOW | PARKER 8C50MXS |
| 09. | 88-2001 | [1] | NUT | PARKER 8BTMXS |
| 10. | 88-2062 | [1] | REDUCER | PARKER 8-4TRTXS |
| 11. | J780625 | [2] | BOLT;SOCKET | |
| 12. | A590106 | [2] | WASHER;PLANE | |
| 13. | A590906 | [2] | WASHER;SPRING | |
| 14. | M500605 | [2] | NUT | |
| 15. | Y410353 | [2] | BOLT;U | |
| 16. | Y410354 | [1] | PLATE | |
| 18. | A590908 | [4] | WASHER;SPRING | |
| 19. | M500807 | [4] | NUT | |
