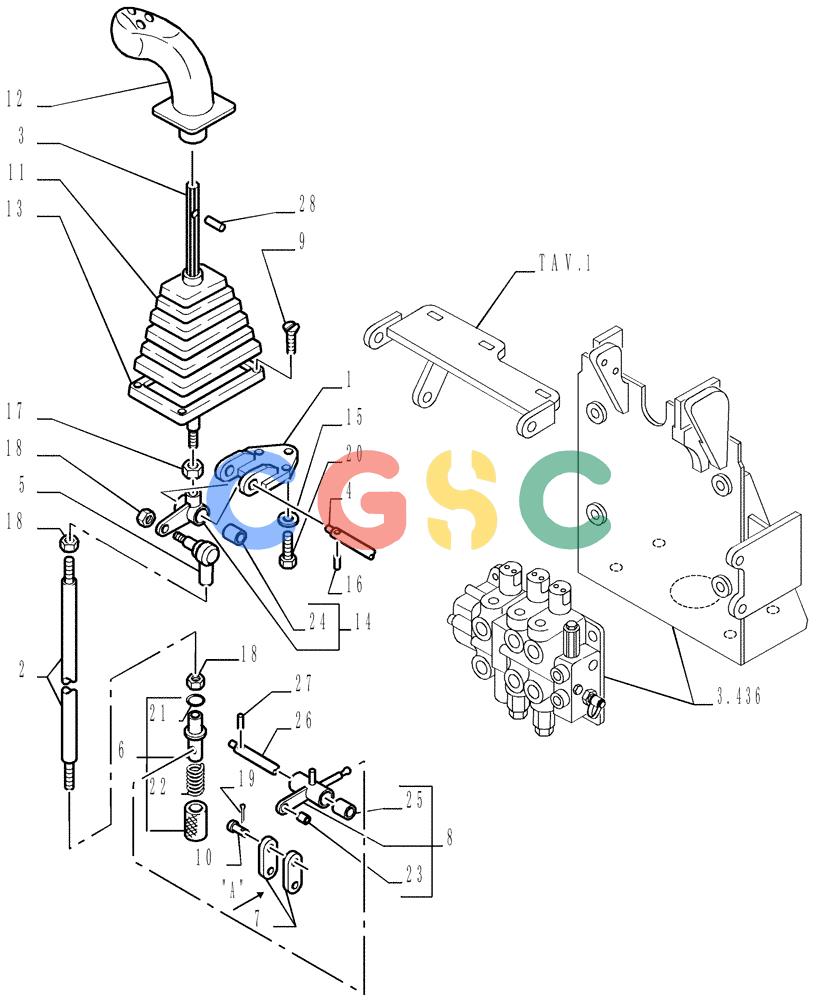

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.437[03]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
801 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046991 | [1] | SUPPORT | TOR |
| 2. | 76046993 | [1] | THREADED TIE-ROD | TOR |
| 3. | 76053973 | [1] | ROD | TOR |
| 4. | 76046996 | [1] | PIN | TOR |
| 5. | 79092808 | [1] | ARTICULATION | LEC |
| 6. | 79083370 | [1] | QUICK MALE COUPLING | LECASSY |
| 7. | 76046730 | [2] | TIE-ROD | TOR |
| 8. | 76046928 | [1] | LEVER | TORASSY |
| 9. | 13313417 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 10. | 76046733 | [2] | PIN | TOR |
| 11. | 76053968 | [1] | BOOT | LEC |
| 12. | 76054507 | [1] | HANDLE GRIP | LEC |
| 13. | 76053972 | [1] | RETAINING PLATE | LEC |
| 14. | 76046997 | [1] | HUB | TORASSY |
| 15. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 16. | 14164771 | [1] | ROLL PIN | MKT4X40 Superseded by part number: 14164770 |
| 17. | 16101521 | [1] | NUT,M12 x 1.25, Cl 10 | ZED Superseded by part number: |
| 18. | 11701721 | [3] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 19. | 10802801 | [2] | COTTER PIN,M2.5 x 25 | LEC |
| 20. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 21. | 13420776 | [1] | RING | LEC |
| 22. | 79086837 | [1] | SPRING | LEC |
| 23. | 76046726 | [1] | BUSHING | TOR |
| 24. | 79084568 | [2] | BEARING ASSY,Needle, 16mm ID x 22mm OD x 14mm W | LEC |
| 26. | 76046932 | [1] | PIN | TOR |
| 27. | 14164370 | [1] | LOCK PIN,M4 x 30, Slotted | FOR4,4X30 |
| 28. | 14601271 | [1] | ROLL PIN | LEC5X28 Superseded by part number: 14601270 |
