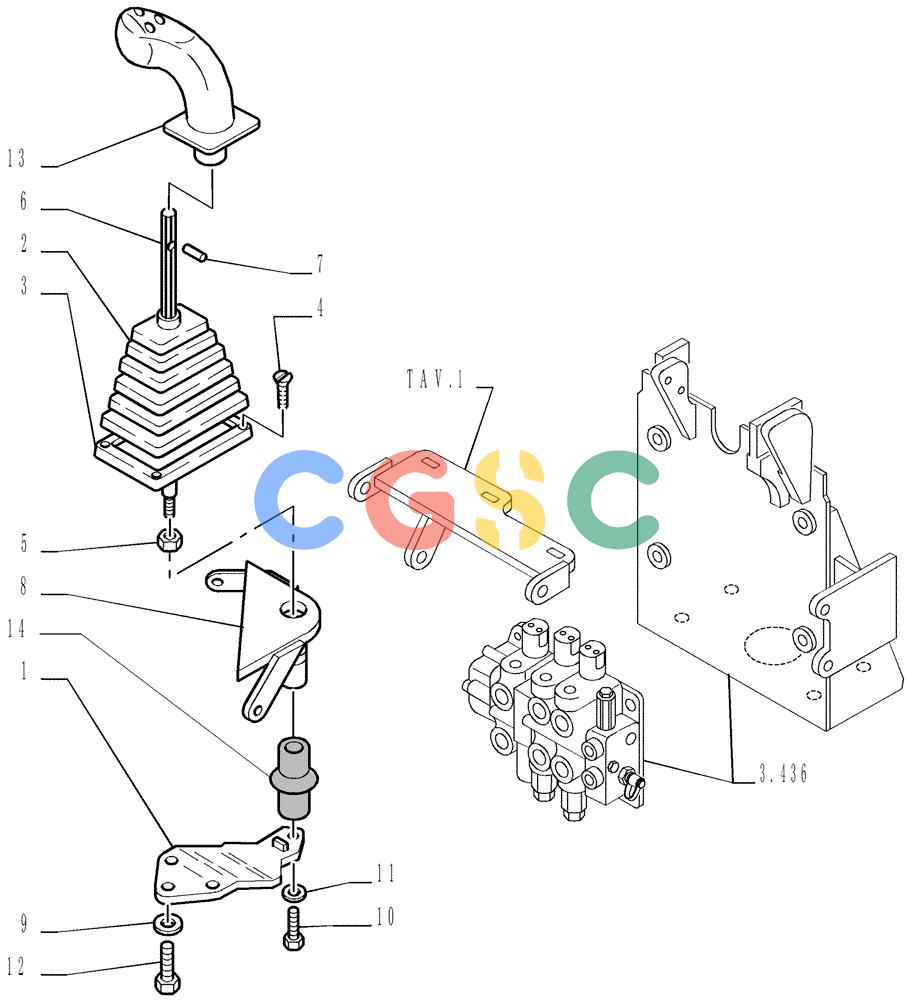

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (3.437[02]) - CONTROL VALVE LINKAGE New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
386 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046994 | [1] | SUPPORT | TOR- EQUIPMENT CONTROL |
| 2. | 76053968 | [1] | BOOT | LEC |
| 3. | 76053972 | [1] | RETAINING PLATE | LEC |
| 4. | 13313417 | [4] | SCREW,Pozidriv Oval Hd, Csk, M6 x 25mm, Cl 5.8, Full Thd | IMO |
| 5. | 16101521 | [1] | NUT,M12 x 1.25, Cl 10 | ZED Superseded by part number: |
| 6. | 76053973 | [1] | ROD | TOR |
| 7. | 14601271 | [1] | ROLL PIN | LEC5X28 Superseded by part number: 14601270 |
| 8. | 76046966 | [1] | CONTROL | TOR |
| 9. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 10. | 15540231 | [1] | SCREW,Hex, M12 x 1.25 x 20mm, Cl 10.9, Full Thd | MKT |
| 11. | 14496731 | [1] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 12. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 13. | 76054507 | [1] | HANDLE GRIP | LEC |
| 14. | 76046091 | [1] | BOOT | TOR |
