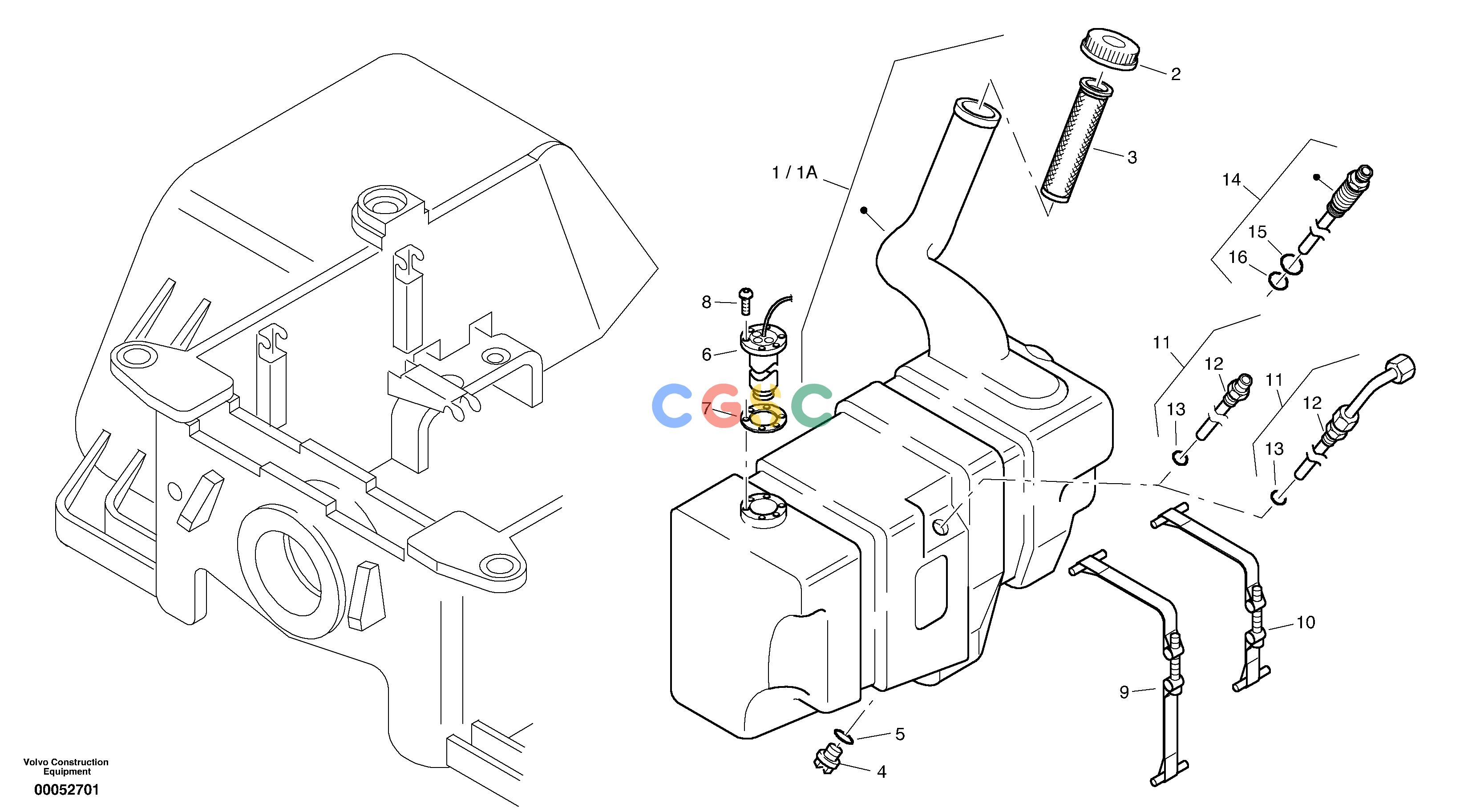

沃尔沃零件查询L35B Fuel tankTYPE 186, 187, 188, 189 SER NO - 29991862201--1872201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
601 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370525
|
[1] |
Conversion kit
|
-1862629, -1872283
-1882261, -1892350
|
| 1A. |
VOE11306084
|
[1] |
Fuel reservoir
|
1862630-, 1872284-
1882262-, 1892351-
|
| 2. |
ZM2804113
|
[1] |
Filler cap
|
|
| 3. |
ZM2804112
|
[1] |
Fuel strainer
|
|
| 4. |
ZM7099428
|
[1] |
Screw plug
|
M18x1,5
|
| 5. |
ZM1086268
|
[1] |
O-ring
|
16x3
|
| 6. |
ZM2805649
|
[1] |
Fuel level sensor
|
|
| 7. |
ZM2906069
|
[1] |
Gasket
|
|
| 8. |
VOE11305438
|
[6] |
Screw
|
M4x12
|
| 9. |
ZM2811413
|
[1] |
Clamp
|
|
| 10. |
ZM2811414
|
[1] |
Clamp
|
|
| 11. |
VOE15622108
|
[1] |
Suction pipe
|
-1862371/-1872216/
-1882224/-1892247
|
| 11. |
ZM2816077
|
[1] |
Suction line
|
1862372-/1872217-/
1882225-/1892248-
|
| 12. |
ZM2811249
|
[1] |
Pipe end
|
|
| 13. |
ZM2906070
|
[1] |
O-ring
|
13,4x2,1
|
| 14. |
VOE11306081
|
[1] |
Suction pipe
|
1862630-, 1872284-
1882262-, 1892351-
|
| 15. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 16. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
