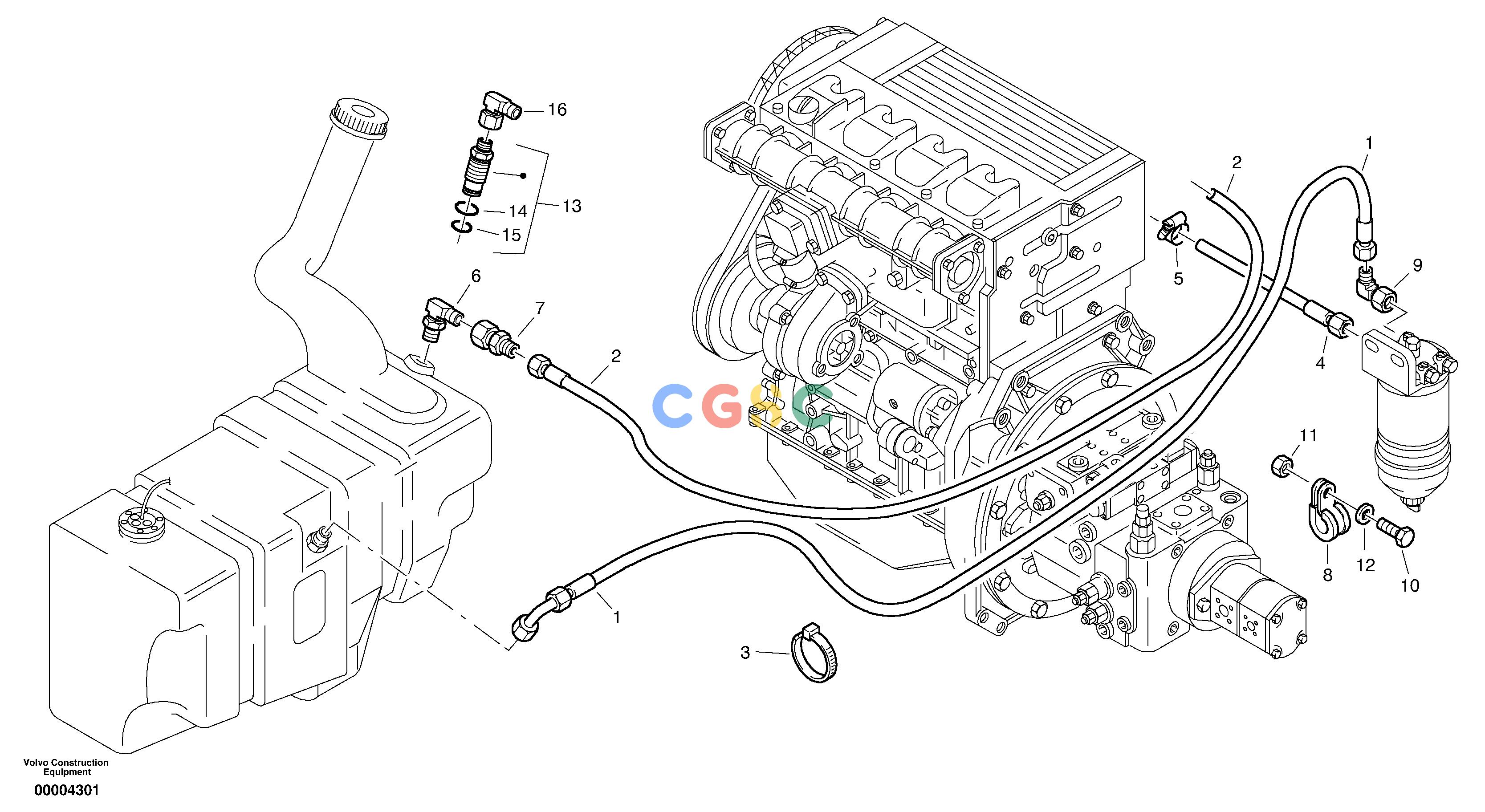

沃尔沃零件查询L35B Fuel pipesTYPE 186, 187, 188, 189 SER NO - 29991862201--1872201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
133 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2811482
|
[1] |
Fuel hose
|
-1862371/-1872216/
-1882224/-1892247
|
| 1. |
ZM2814822
|
[1] |
Fuel hose
|
1862372-/1872217-/
1882225-/1892248-
|
| 2. |
ZM2811484
|
[1] |
Fuel hose
|
-1862371/-1872216/
-1872224/-1892247
|
| 2. |
ZM2814635
|
[1] |
Fuel hose
|
1862371-/1872217-/
1882225-/1892248-
|
| 3. |
VOE14016673
|
[2] |
Strip clamp
|
|
| 4. |
ZM2811483
|
[1] |
Fuel hose
|
|
| 5. |
VOE943470
|
[1] |
Hose clamp
|
12x9
|
| 6. |
ZM2800658
|
[1] |
Fitting
|
|
| 7. |
VOE11307078
|
[1] |
Fitting
|
|
| 8. |
VOE952634
|
[1] |
Clamp
|
1862372-/1872217-/
1882225-/1892248-
|
| 9. |
VOE13945357
|
[1] |
Elbow nipple
|
1862372-/1872217-/
1882225-/1892248-
|
| 10. |
VOE13948356
|
[1] |
Flange screw
|
M6x30
1862372-/1872217-/
|
| 11. |
VOE945407
|
[1] |
Flange nut
|
M6
1862372-/1872217-/
|
| 12. |
VOE60110304
|
[1] |
Washer
|
B6,4
1862372-/1872217-/
|
| 13. |
VOE11306079
|
[1] |
Fitting
|
1862630-, 1872284-
1882262-, 1892351-
|
| 14. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 15. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
| 16. |
VOE13945357
|
[1] |
Elbow nipple
|
1862630-, 1872284-
1882262-, 1892351-
|
