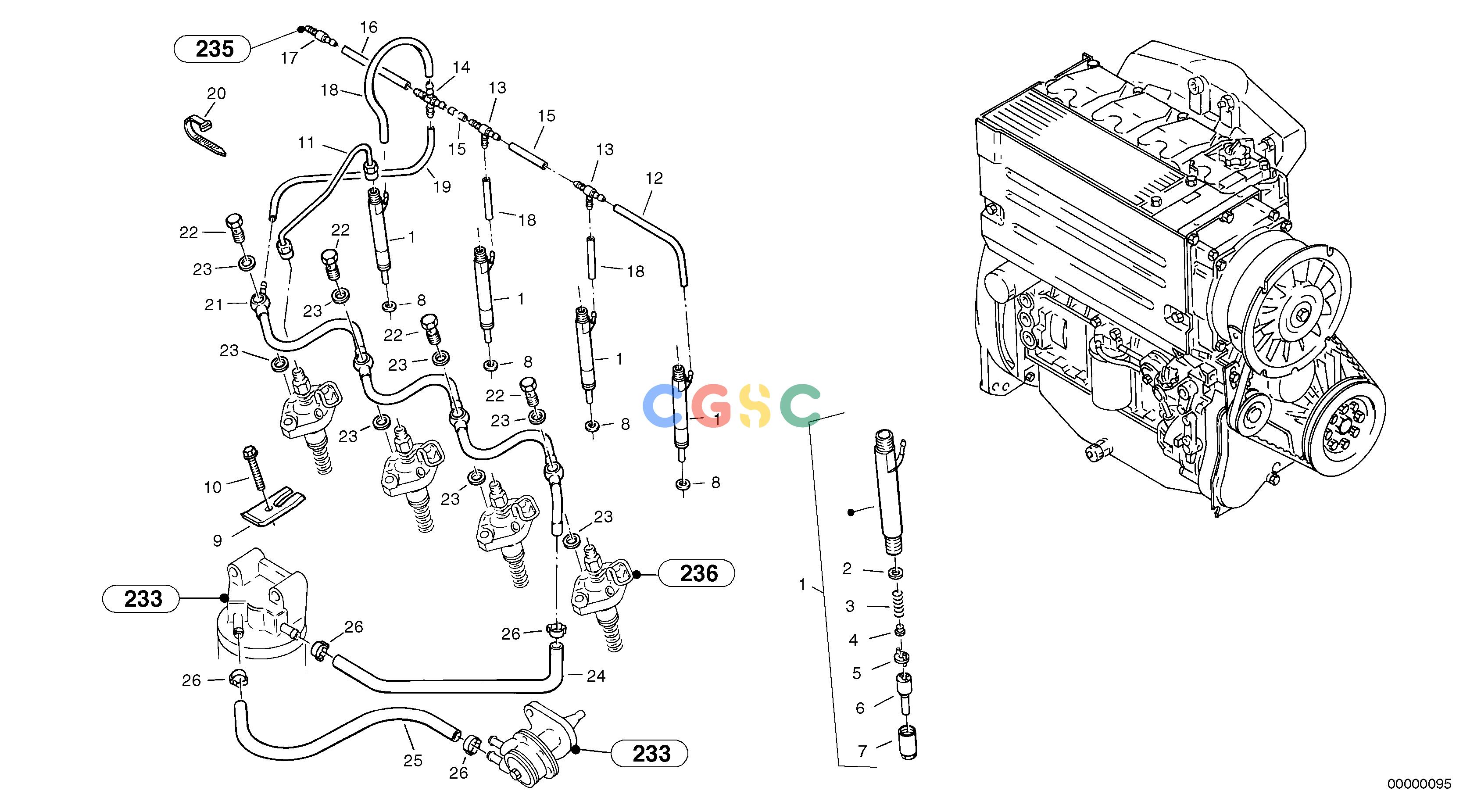

沃尔沃零件查询L35B Injection pipes, Injection valveTYPE 186, 187, 188, 189 SER NO - 29991862201--1872201-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
195 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2904138
|
[4] |
Injection valve
|
|
| 2. |
ZM2901186
|
[REQ] |
Spacer
|
1,24 mm
|
| 2. |
VOE11705724
|
[REQ] |
Shim
|
1,28 mm
|
| 2. |
ZM2901188
|
[REQ] |
Spacer
|
1,30 mm
|
| 2. |
VOE11705726
|
[REQ] |
Shim
|
1,34 mm
|
| 2. |
ZM2901190
|
[REQ] |
Spacer
|
1,38 mm
|
| 2. |
ZM2901191
|
[REQ] |
Spacer
|
1,40 mm
|
| 2. |
ZM2901192
|
[REQ] |
Spacer
|
1,44 mm
|
| 2. |
ZM2901193
|
[REQ] |
Spacer
|
1,48 mm
|
| 2. |
ZM2901194
|
[REQ] |
Spacer
|
1,50 mm
|
| 2. |
ZM2901195
|
[REQ] |
Spacer
|
1,54 mm
|
| 2. |
VOE11705716
|
[1] |
Shim
|
1,00 mm
|
| 2. |
ZM2901196
|
[REQ] |
Spacer
|
1,58 mm
|
| 2. |
ZM2901197
|
[REQ] |
Spacer
|
1,60 mm
|
| 2. |
ZM2901198
|
[REQ] |
Spacer
|
1,64 mm
|
| 2. |
ZM2901199
|
[REQ] |
Spacer
|
1,68 mm
|
| 2. |
VOE11705737
|
[REQ] |
Shim
|
1,70 mm
|
| 2. |
VOE11705738
|
[REQ] |
Shim
|
1,74 mm
|
| 2. |
VOE11705739
|
[REQ] |
Shim
|
1,78 mm
|
| 2. |
ZM2901203
|
[REQ] |
Spacer
|
1,80 mm
|
| 2. |
VOE11705741
|
[REQ] |
Shim
|
1,84 mm
|
| 2. |
VOE11705742
|
[REQ] |
Shim
|
1,88 mm
|
| 2. |
ZM2901180
|
[REQ] |
Spacer
|
1,04 mm
|
| 2. |
VOE11705743
|
[REQ] |
Shim
|
1,90 mm
|
| 2. |
ZM2901207
|
[REQ] |
Spacer
|
1,94 mm
|
| 2. |
VOE11700462
|
[REQ] |
Shim
|
1,98 mm
|
| 3. |
ZM2904141
|
[1] |
Pressure spring
|
|
| 4. |
VOE20405525
|
[1] |
Bolt
|
|
| 5. |
VOE11700430
|
[1] |
Washer
|
|
| 6. |
ZM2904140
|
[1] |
Nozzle element
|
|
| 7. |
VOE11700432
|
[1] |
Cap nut
|
|
| 8. |
VOE11700426
|
[4] |
Sealing ring
|
|
| 9. |
ZM2904139
|
[4] |
Stabilisor
|
|
| 2. |
VOE11705718
|
[REQ] |
Shim
|
1,08 mm
|
| 10. |
ZM2908518
|
[4] |
Screw
|
|
| 11. |
ZM2904751
|
[4] |
Injection pipes
|
|
| 12. |
ZM2908047
|
[1] |
Leak-off line
|
|
| 13. |
VPE20775904
|
[2] |
T-piece
|
|
| 14. |
ZM2908047
|
[1] |
Leak-off line
|
|
| 15. |
ZM2908047
|
[2] |
Leak-off line
|
|
| 16. |
ZM2908047
|
[1] |
Leak-off line
|
|
| 17. |
ZM2290388
|
[1] |
Connecting piece
|
|
| 18. |
ZM2908047
|
[3] |
Leak-off line
|
|
| 19. |
VOE20405864
|
[1] |
Fuel hose
|
|
| 2. |
ZM2901182
|
[REQ] |
Spacer
|
1,10 mm
|
| 20. |
ZM2905336
|
[1] |
Holder ribbon
|
|
| 21. |
ZM2904146
|
[1] |
Fuel pipe
|
|
| 22. |
ZM2290272
|
[4] |
Hollow screw
|
8
|
| 23. |
VOE13947282
|
[8] |
Gasket
|
A12x18
|
| 24. |
VOE60113926
|
[0REQ] |
Hose
|
|
| 25. |
VOE60113926
|
[0REQ] |
Hose
|
|
| 26. |
VOE20914426
|
[4] |
Hose Clamp
|
|
| 2. |
ZM2901183
|
[REQ] |
Spacer
|
1,14 mm
|
| 2. |
ZM2901184
|
[REQ] |
Spacer
|
1,18 mm
|
| 2. |
VOE11705722
|
[REQ] |
Shim
|
1,20 mm
|
| 2. |
ZM2904144
|
[REQ] |
Spacer
|
1,22 mm
|
