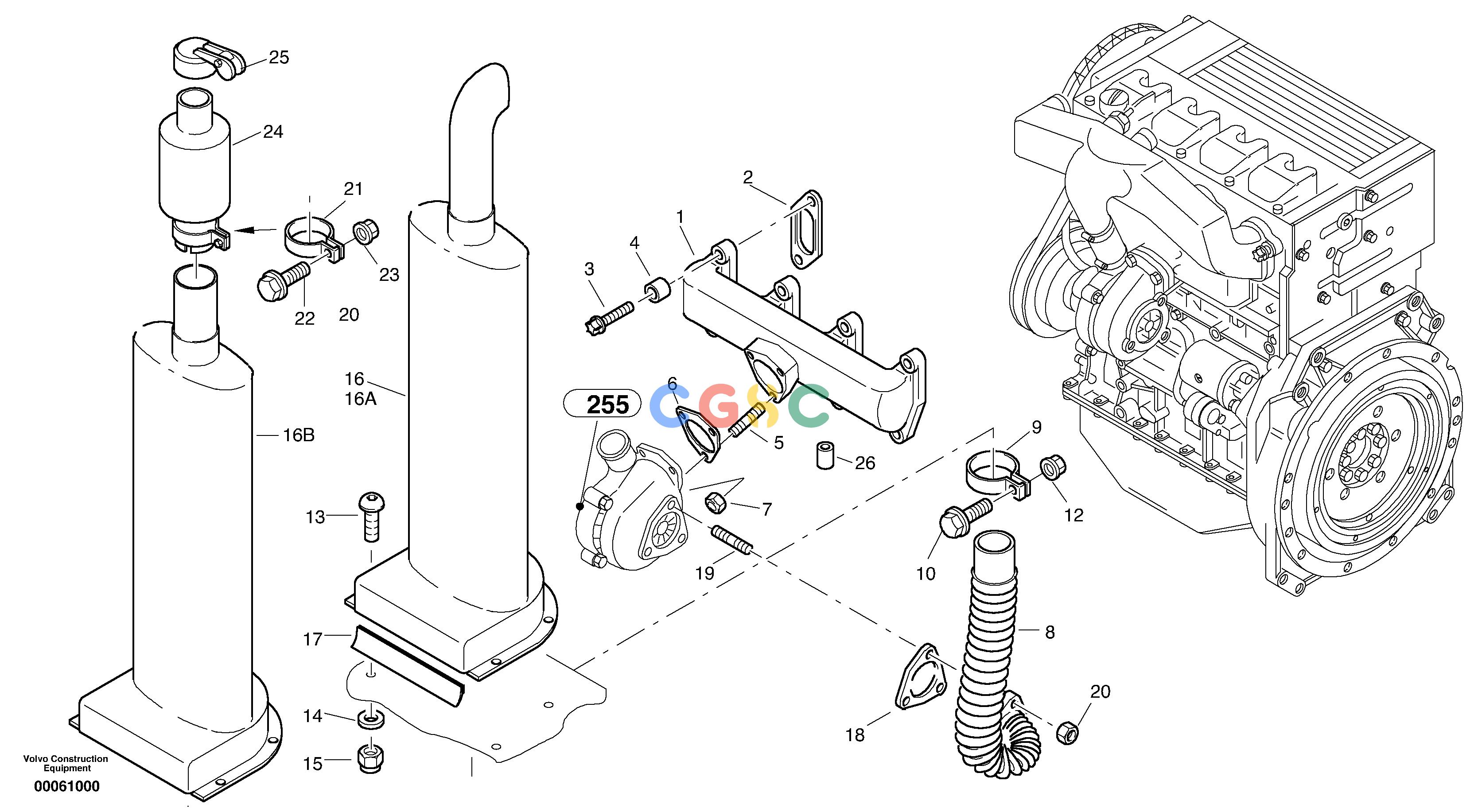

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE17443562
|
[1] |
Exhaust manifold
|
|
| 2. |
ZM4083910
|
[4] |
Stiffener
|
|
| 3. |
VOE20481810
|
[8] |
Screw
|
|
| 4. |
ZM2904412
|
[8] |
Bushing
|
|
| 5. |
VOE20834041
|
[3] |
Ball pin
|
M8x20
|
| 6. |
ZM2900459
|
[1] |
Gasket
|
|
| 7. |
ZM7098010
|
[3] |
Nut
|
M8
|
| 8. |
ZM2810937
|
[1] |
Exhaust hose
|
|
| 9. |
VOE11306075
|
[1] |
Clamp
|
58,5
|
| 10. |
VOE13945444
|
[1] |
Screw
|
M8x25
|
| 12. |
VOE945408
|
[1] |
Flange nut
|
M8
|
| 13. |
ZM2810334
|
[4] |
Screw
|
M10x25
|
| 14. |
VOE13960143
|
[4] |
Washer
|
|
| 15. |
VOE13971098
|
[4] |
Flange nut
|
M10
|
| 16. |
ZM2810936
|
[1] |
Muffler
|
|
| 16A. |
ZM2878810
|
[1] |
Catalyser
|
|
| 16B. |
VOE11306289
|
[1] |
Silencer
|
|
| 17. |
VOE11306373
|
[1] |
Sealing moulding
|
L = 300MM
|
| 18. |
ZM4083930
|
[1] |
Stiffener
|
|
| 19. |
VOE20834041
|
[3] |
Ball pin
|
M8x20
|
| 20. |
ZM7098010
|
[3] |
Nut
|
M8
|
| 21. |
VOE11306314
|
[1] |
Clamp
|
|
| 22. |
VOE946329
|
[1] |
Flange screw
|
|
| 23. |
VOE13971095
|
[1] |
Flange nut
|
|
| 24. |
VOE11306290
|
[1] |
Spark arrester
|
|
| 25. |
VOE11306286
|
[1] |
Cap
|
|
| 26. |
ZM2908435
|
[REQ] |
Gasket compound
|
|
