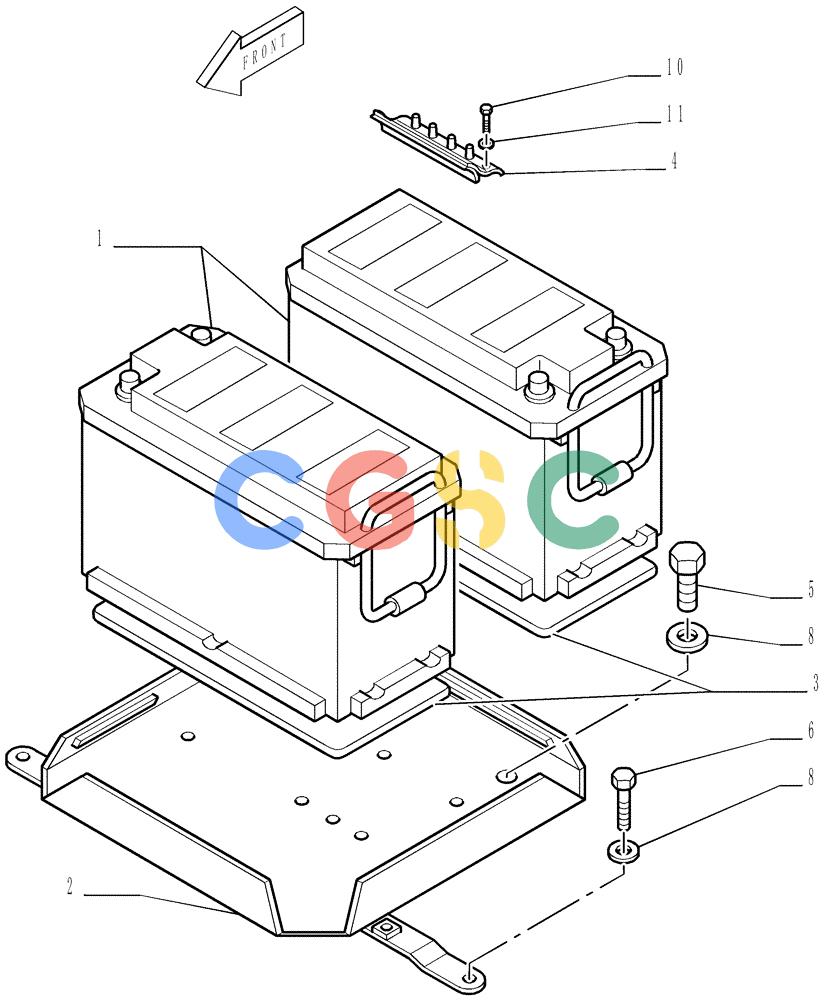

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (6.701[01]) - BATTERY - SEAT AND SUPPORT New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
164 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 71418183 | [2] | DRY BATTERY | TOR12V - 100AH - 440A 12V 440A Superseded by part number: 73325162 |
| 2. | 76054986 | [1] | SUPPORT | TOR |
| 3. | 4991458 | [2] | SUPPORT | LEC |
| 4. | 79084347 | [3] | BRACKET | LEC |
| 5. | 10979331 | [4] | BOLT,Hex, M10 x 14mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87547661 |
| 6. | 11106431 | [4] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 8. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 10. | 16043631 | [6] | SCREW,Hex, M8 x 25mm, Cl 10.9, Full Thd | BHB Superseded by part number: 43234 |
| 11. | 14496531 | [6] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
