| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

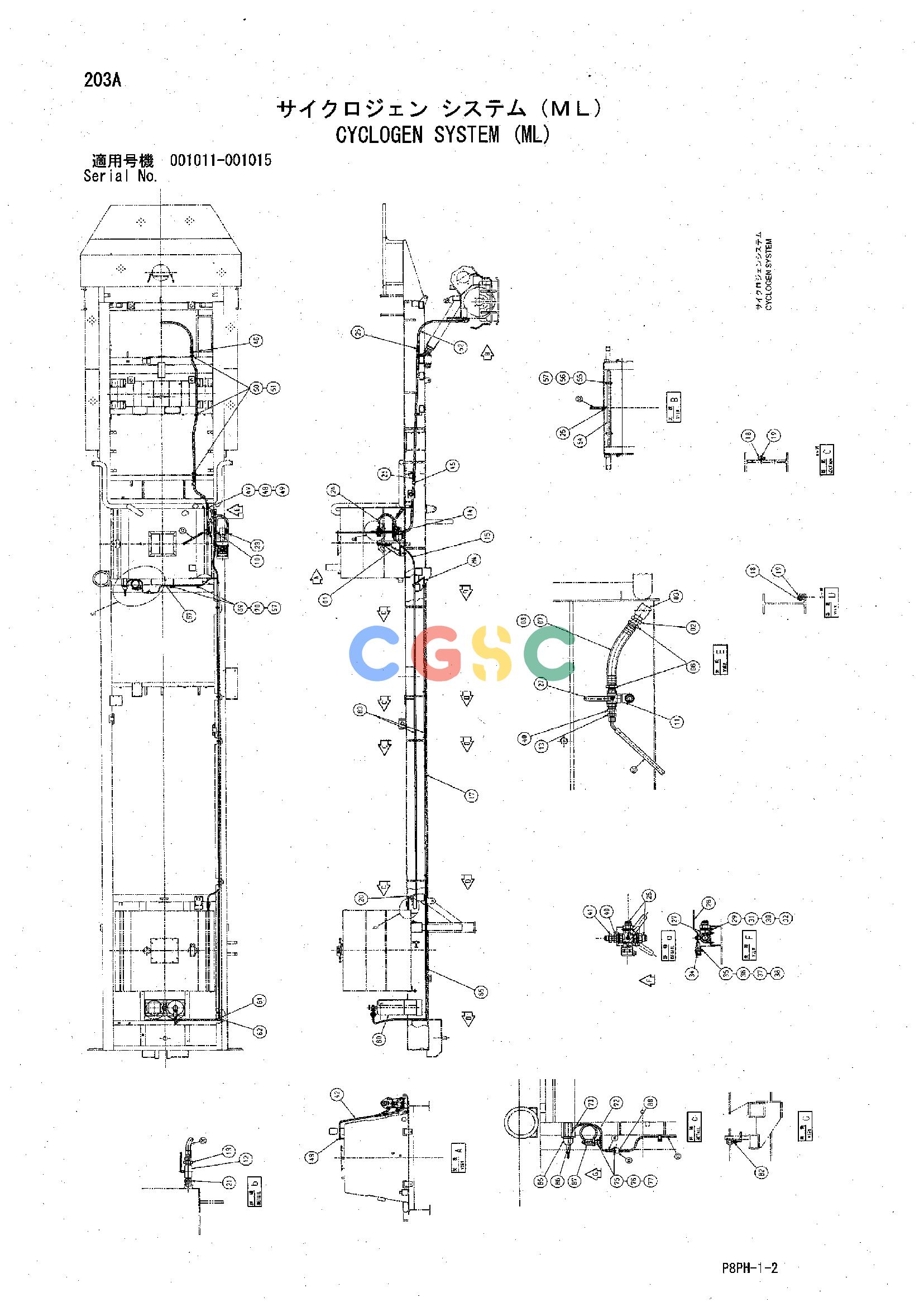

| 01. | +++++++ | [1] | CYCLOGEN PUMP | (ML) <for details: see separate page> |
| 02. | 94-1605 | [1] | REDUCER | |
| 03. | 94-0635 | [1] | ELBOW;S | |
| 06. | Y971061 | [2] | FITTING;HOSE | |
| 07. | Y410188 | [1] | HOSE;RUBBER | |
| 08. | 4011675 | [4] | CLAMP;HOSE | |
| 10. | Y410182 | [1] | ADAPTER;S | |
| 11. | 94-0650 | [1] | ELBOW | |
| 12. | 94-4029 | [1] | COCK | |
| 13. | 4317015 | [2] | ADAPTER;S | |
| 14. | 94-0634 | [1] | ELBOW;S | |
| 15. | Y410190 | [1] | HOSE | |
| 17. | Y970951 | [4] | TUBE | |
| 18. | 4190125 | [9] | CLAMP;PIPE | |
| 20. | Y409604 | [1] | HOSE | |
| 21. | 94-1704 | [1] | ADAPTER;S | |
| 23. | Y410183 | [1] | ELBOW;S | |
| 24. | Y410191 | [1] | HOSE | |
| 25. | 4221279 | [5] | ADAPTER;S | |
| 27. | Y410185 | [2] | VALVE | |
| 28. | Y971058 | [1] | LEVER | |
| 29. | Y410184 | [3] | CLAMP | |
| 30. | A590905 | [6] | WASHER;SPRING | |
| 31. | A590105 | [6] | WASHER;PLANE | |
| 32. | M500504 | [6] | NUT | |
| 34. | Y410187 | [1] | MANIATURE CONNC | |
| 35. | M430435 | [2] | SCREW | |
| 36. | A590104 | [2] | WASHER;PLANE | |
| 37. | A590904 | [2] | WASHER;SPRING | |
| 38. | M500403 | [2] | NUT | |
| 40. | 94-1604 | [2] | REDUCER | |
| 41. | 4221278 | [1] | ADAPTER;S | |
| 42. | Y971062 | [1] | PIPE | |
| 43. | 4156433 | [1] | ELBOW | |
| 45. | Y410193 | [1] | HOSE | |
| 46. | Y801854 | [1] | PIPE | |
| 47. | 4190264 | [1] | CLIP | |
| 48. | J901225 | [1] | BOLT | |
| 49. | A590912 | [1] | WASHER;SPRING | |
| 50. | 4190127 | [3] | CLAMP;PIPE | |
| 51. | J011270 | [3] | BOLT;SEMS | |
| 52. | Y410194 | [1] | HOSE | |
| 54. | Y971056 | [1] | PIPE | |
| 55. | 4053865 | [2] | CLAMP;PIPE | |
| 56. | J901016 | [4] | BOLT | |
| 57. | A590910 | [6] | WASHER;SPRING | |
| 60. | Y410497 | [1] | GAS;PROPANE | |
| 61. | 4154653 | [1] | ADAPTER;S | |
| 62. | 94-0617 | [1] | ELBOW;S | |
| 65. | Y970949 | [1] | TUBE | |
| 67. | Y410993 | [1] | HOSE | |
| 69. | 4190274 | [2] | CLIP | |
| 70. | J901020 | [2] | BOLT | |
| 72. | Y410196 | [1] | HOSE | |
| 73. | Y410197 | [1] | HOSE | |
| 75. | Y410181 | [2] | CLAMP | |
| 76. | A590908 | [4] | WASHER;SPRING | |
| 77. | J950008 | [4] | NUT | |
| 83. | 88-2005 | [5] | UNION | PARKER 8HMTXS |
| 84. | 88-0231 | [1] | UNION | PARKER 8-6HMTXS |
| 85. | Y412659 | [1] | VALVE;GAS-CONTROL | |
| 86. | 88-XXXX | [2] | CONNECTOR | PARKER 6GTXS |
| 87. | Y411232 | [1] | GAS BURNER | |
| 88. | 88-XXXX | [1] | CONNECTOR | PARKER 6FMTXS |
| 89. | J011045 | [9] | BOLT;SEMS |
