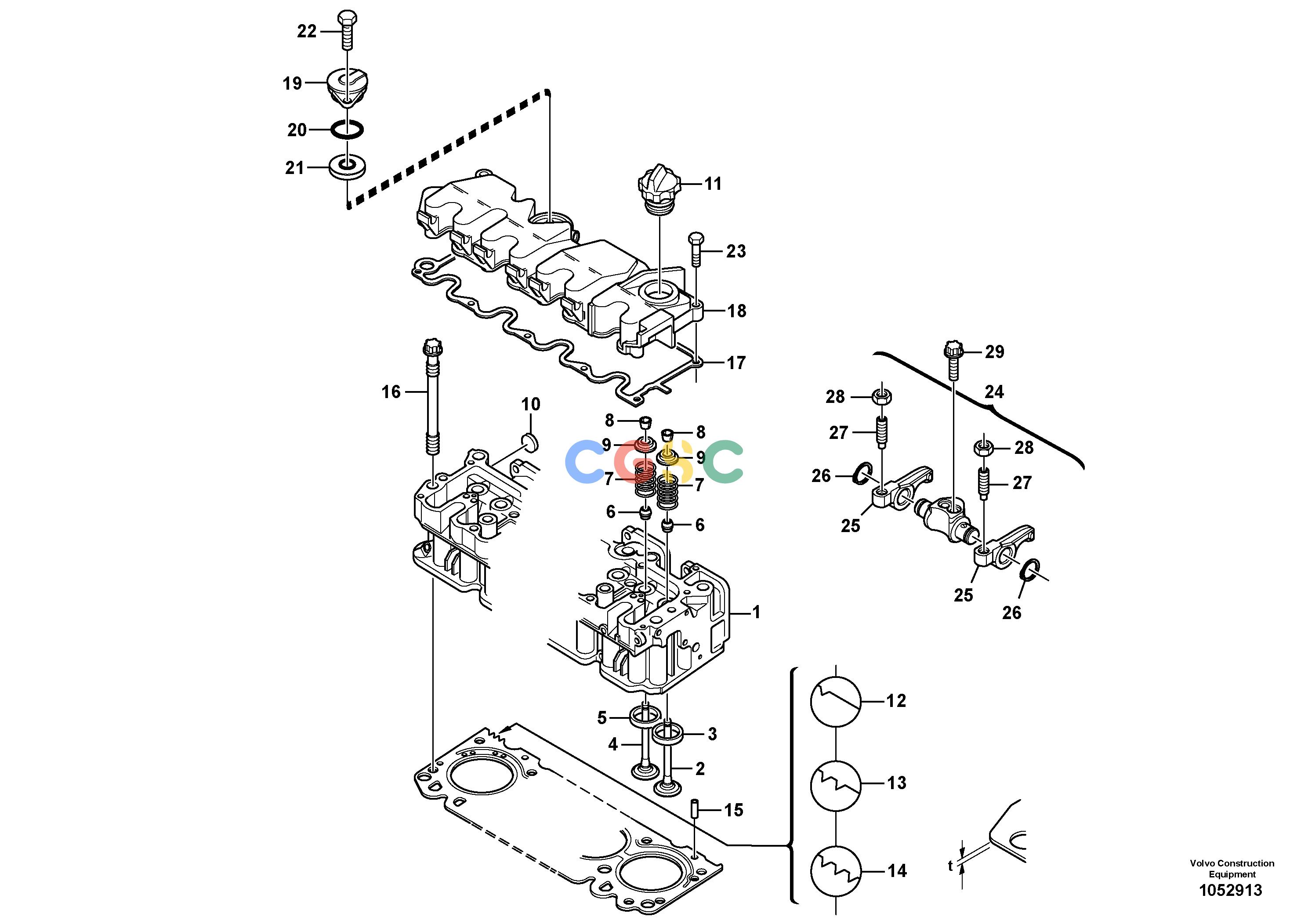

沃尔沃零件查询L35B Cylinder head, timing gearsTYPE 186, 187, 188, 189 SER NO 3000 - 600011306228,11309261-11308624NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
206 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11715744
|
[1] |
Cylinder head
|
|
| 1. |
VOE15052891
|
|
Cylinder head
|
|
| 2. |
VOE11715747
|
[4] |
Inlet valve
|
|
| 3. |
VOE15052905
|
[4] |
Valve seat
|
|
| 3. |
VOE15052905
|
|
Valve seat
|
|
| 4. |
ZM2908492
|
[4] |
Exhaust Valve
|
|
| 5. |
VOE11370184
|
[4] |
Valve seat ring
|
37,07 mm
|
| 5. |
ZM2290500
|
[REQ] |
Valve seat ring
|
37,27 mm
|
| 5. |
VOE15052901
|
|
Valve seat
|
|
| 6. |
VOE20459855
|
[8] |
Valve seal
|
|
| 7. |
ZM2904091
|
[8] |
Pressure spring
|
|
| 8. |
VOE20459857
|
[16] |
Valve sleeve
|
|
| 9. |
VOE15053220
|
[8] |
Washer
|
|
| 10. |
ZM2906743
|
[3] |
Cover
|
|
| 11. |
ZM2904064
|
[1] |
Filler cap
|
|
| 12. |
VOE11715533
|
[1] |
Cylinder head gasket
|
THICK = 1,48 MM
|
| 12. |
VOE15052907
|
|
Cylinder head gasket
|
THICK = 1,47 MM
|
| 13. |
VOE11715534
|
[1] |
Cylinder head gasket
|
THICK = 1,55 MM
|
| 13. |
VOE15052909
|
|
Cylinder head gasket
|
THICK = 1,52 MM
|
| 14. |
VOE15052909
|
[1] |
Cylinder head gasket
|
THICK = 1,60 MM
|
| 14. |
VOE15052899
|
|
Cylinder head gasket
|
THICK = 1,57 MM
|
| 15. |
VOE21033924
|
[2] |
Guide pin
|
|
| 16. |
ZM2904092
|
[10] |
Cylinder head screw
|
|
| 17. |
VOE15163264
|
[1] |
Valve cover gasket
|
|
| 18. |
VOE17217734
|
[1] |
Valve Cover
|
|
| 19. |
VOE11370605
|
[1] |
Release valve
|
|
| 20. |
ZM2904066
|
[1] |
O-ring
|
|
| 21. |
VOE15154076
|
[1] |
Oil separator
|
|
| 22. |
VOE11370258
|
[1] |
Hexagon screw
|
|
| 23. |
ZM2908485
|
[10] |
Screw
|
|
| 24. |
ZM2290529
|
[4] |
Valve rocker support
|
|
| 25. |
ZM2290526
|
[2] |
Rocker Arm
|
|
| 26. |
ZM7094952
|
[2] |
Safety ring
|
18x1,2
|
| 27. |
ZM2290527
|
[2] |
Adjusting screw
|
|
| 28. |
VOE11700373
|
[2] |
Nut
|
|
| 29. |
VOE20459853
|
[8] |
Screw
|
|
