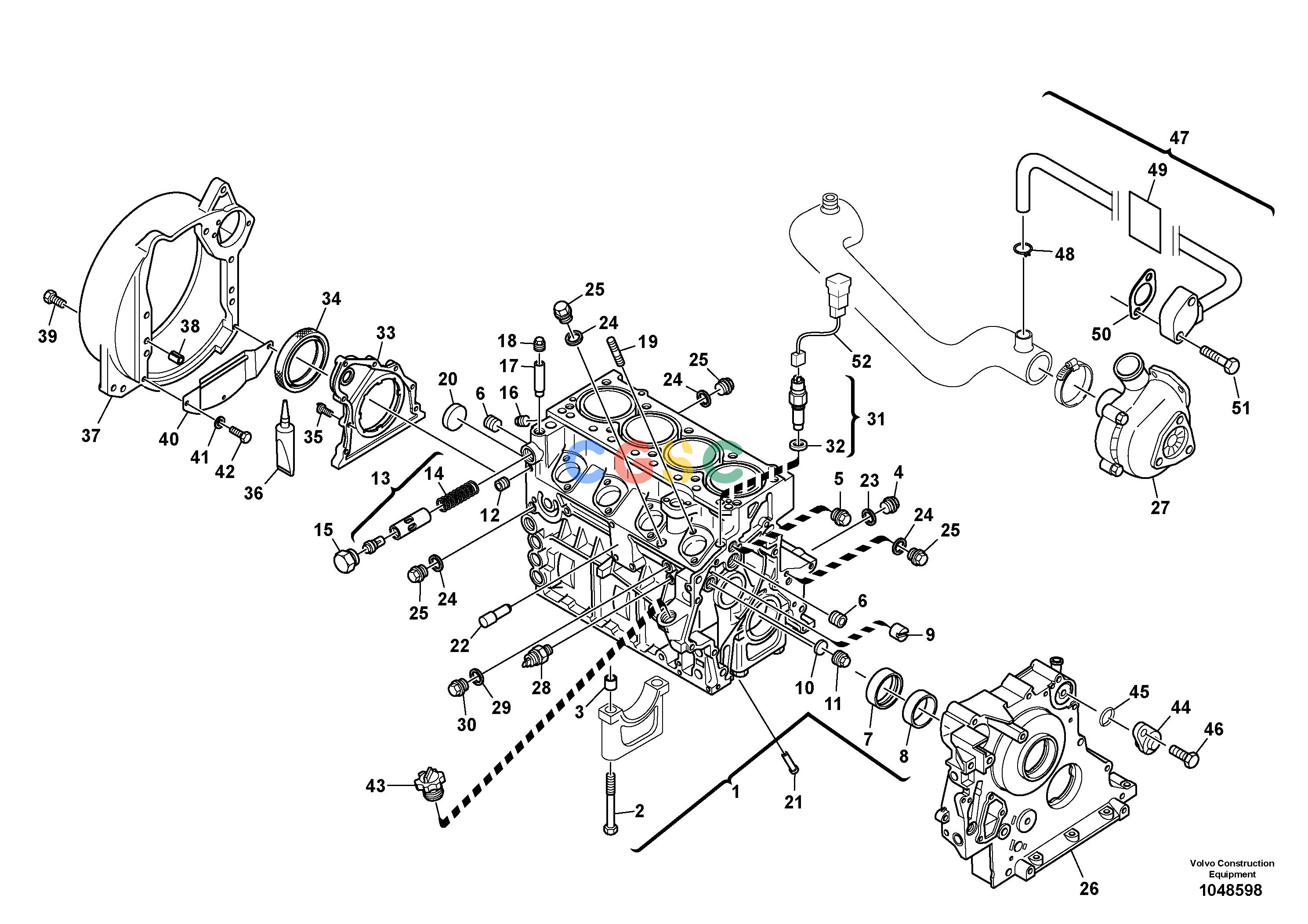

沃尔沃零件查询L35B Engine casing, VentilationTYPE 186, 187, 188, 189 SER NO 3000 - 600011306228,11309261-11308624NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
768 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370613
|
[1] |
Crankcase
|
|
| 1. |
VOE15053275
|
|
Cylinder block
|
|
| 2. |
ZM2290540
|
[10] |
Hexagon screw
|
|
| 3. |
ZM4010300
|
[10] |
Bushing
|
|
| 4. |
VOE20459941
|
[1] |
Plug
|
|
| 5. |
ZM2904050
|
[1] |
Screw plug
|
|
| 6. |
ZM2908480
|
[2] |
Screw plug
|
|
| 7. |
ZM2904048
|
[2] |
Bearing bush
|
|
| 8. |
VOE20795762
|
[3] |
Bushing
|
|
| 9. |
VOE15053296
|
[2] |
Guide sleeve
|
|
| 10. |
VOE11370177
|
[1] |
Plug
|
|
| 11. |
ZM2905346
|
[1] |
Screw plug
|
|
| 11. |
VOE15053810
|
|
Plug
|
|
| 12. |
VOE20860215
|
[1] |
Screw
|
|
| 13. |
ZM2904169
|
[1] |
Thermostat
|
|
| 14. |
ZM2904053
|
[1] |
Pressure spring
|
|
| 15. |
ZM2905345
|
[1] |
Screw plug
|
|
| 16. |
VOE20459853
|
[1] |
Screw
|
|
| 16. |
VOE20405718
|
|
Plug
|
|
| 17. |
ZM2904051
|
[1] |
Tube
|
|
| 18. |
ZM2905344
|
[1] |
Screw plug
|
|
| 19. |
VOE11715739
|
[8] |
Stud
|
|
| 20. |
VOE11370179
|
[1] |
Cover
|
|
| 21. |
ZM2904056
|
[8] |
Piston cooling jet
|
|
| 22. |
ZM2904057
|
[1] |
Pin
|
|
| 23. |
VOE20460061
|
[1] |
Sealing ring
|
|
| 24. |
VOE11700631
|
[4] |
Sealing ring
|
|
| 25. |
VOE960628
|
[4] |
Plug
|
|
| 26. |
|
[1] |
Front cover
|
|
| 27. |
|
[1] |
Turbocharger
|
|
| 28. |
ZM2905379
|
[1] |
Oil pressure switch
|
|
| 29. |
VOE13947624
|
[1] |
Plane gasket
|
|
| 30. |
VOE11305512
|
[1] |
Lock plug
|
AM18x1,5
|
| 31. |
ZM2904059
|
[1] |
Temperature transmitter
|
|
| 31. |
VOE15054496
|
|
Sensor
|
|
| 32. |
VOE13947621
|
[1] |
Plane gasket
|
A14x18
|
| 32. |
VOE15051423
|
|
Sealing ring
|
|
| 33. |
ZM15020566
|
[1] |
Cover rear
|
|
| 34. |
ZM2292220
|
[1] |
Radial seal
|
|
| 35. |
ZM2290455
|
[8] |
Screw
|
|
| 36. |
ZM4084070
|
[REQ] |
Sealant
|
|
| 37. |
ZM2905335
|
[1] |
Intermediate housing
|
|
| 38. |
ZM2290547
|
[2] |
Bushing
|
|
| 39. |
VOE20554683
|
[4] |
Hexagon screw
|
|
| 40. |
ZM2290561
|
[1] |
Cover plate
|
|
| 41. |
VOE973494
|
[3] |
Washer
|
|
| 42. |
VOE20459986
|
[3] |
Screw
|
|
| 43. |
ZM2904064
|
[1] |
Filler cap
|
|
| 44. |
ZM2904065
|
[1] |
Valve
|
|
| 45. |
ZM2904066
|
[1] |
O-ring
|
|
| 46. |
VOE11370258
|
[1] |
Hexagon screw
|
|
| 47. |
VOE11715740
|
[1] |
Air vent pipe
|
|
| 48. |
ZM2904172
|
[1] |
Hose Clamp
|
|
| 49. |
VOE20450861
|
[1] |
Sleeve
|
|
| 50. |
VOE11370603
|
[1] |
Gasket
|
|
| 51. |
VOE11370593
|
[2] |
Hexagon screw
|
|
| 52. |
VOE15206043
|
|
Electric cable
|
S/N 1866001 -
S/N 1876001 -
|
| 52. |
VOE11306171
|
|
Housing
|
|
| 52. |
VOE15206036
|
|
Resistor
|
R8,2/5W
|
