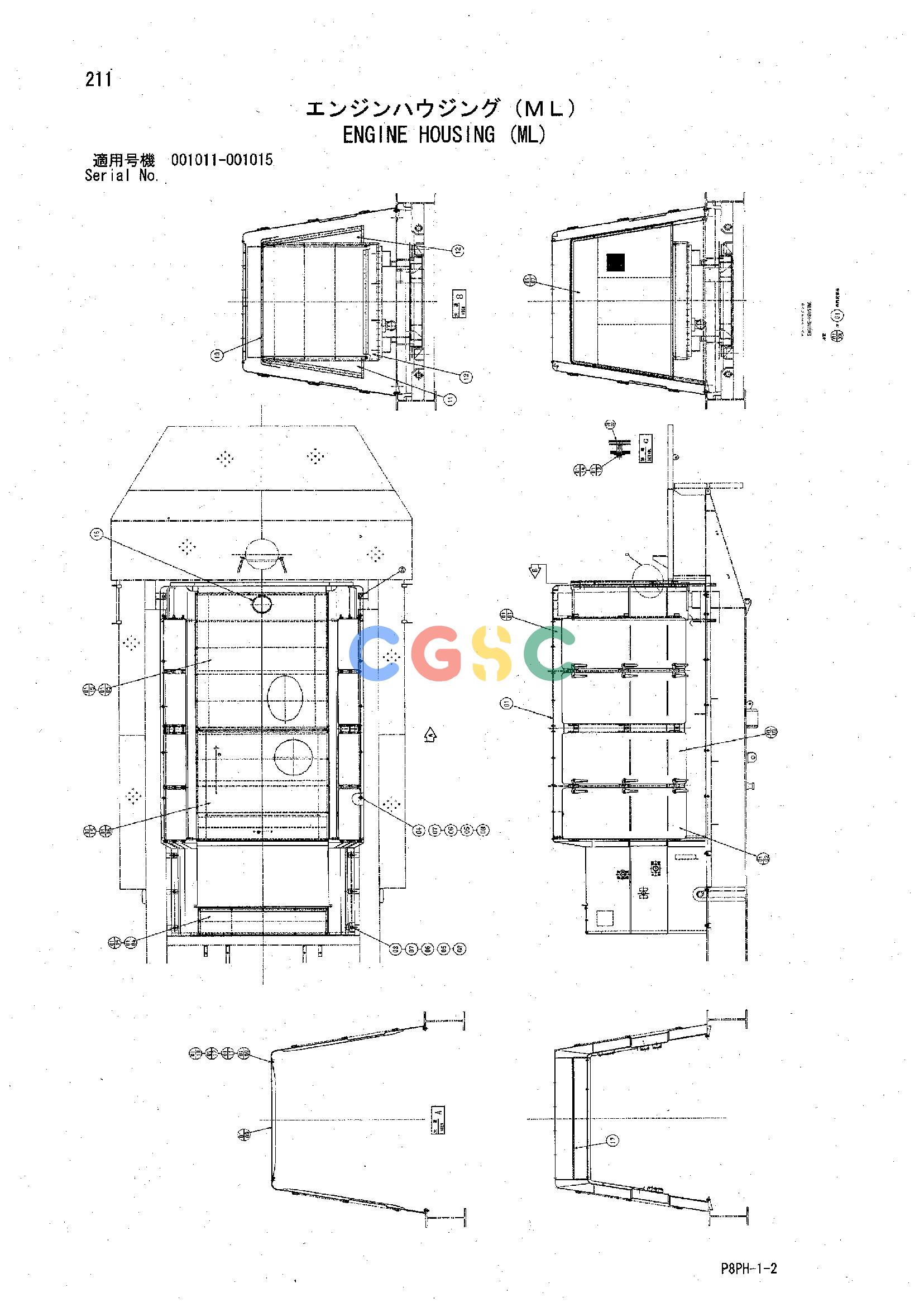

日立零件查询（AR2000）ENGINE HOUSING (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
822 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y410014 | [1] | ENGINE HOUSING | |
| 0101. | Y500238 | [1] | HOUSING | |
| 0102. | Y801808 | [4] | DOOR;LEFT | |
| 0103. | Y801809 | [4] | DOOR;RIGHT | |
| 0104. | Y301504 | [1] | ROOF SHEET METAL | |
| 0105. | Y700788 | [1] | ROOF | |
| 0106. | Y801806 | [1] | ROOF | |
| 0107. | Y700789 | [1] | COVER | |
| 0108. | Y801805 | [1] | BEAM | |
| 0109. | M470820 | [2] | SCREW | |
| 0110. | M500807 | [2] | NUT | |
| 0111. | A590108 | [2] | WASHER;PLANE | |
| 0112. | A590908 | [2] | WASHER;SPRING | |
| 0113. | J020825 | [4] | BOLT;SEMS | |
| 0114. | J217083 | [4] | WASHER | |
| 0115. | J020820 | [42] | BOLT;SEMS | |
| 03. | J901030 | [6] | BOLT | |
| 04. | J901040 | [12] | BOLT | |
| 05. | J217083 | [18] | WASHER | |
| 06. | A590110 | [18] | WASHER;PLANE | |
| 07. | A590910 | [18] | WASHER;SPRING | |
| 08. | J950010 | [18] | NUT | |
| 10. | Y410310 | [1] | RUBBER | |
| 11. | Y801872 | [1] | COVER | |
| 12. | Y801873 | [1] | COVER | |
| 13. | Y801871 | [1] | COVER | |
| 15. | Y410466 | [1] | RUBBERIZED CORD | |
| 17. | Y410878 | [1] | RUBBERIZED CORD | |
