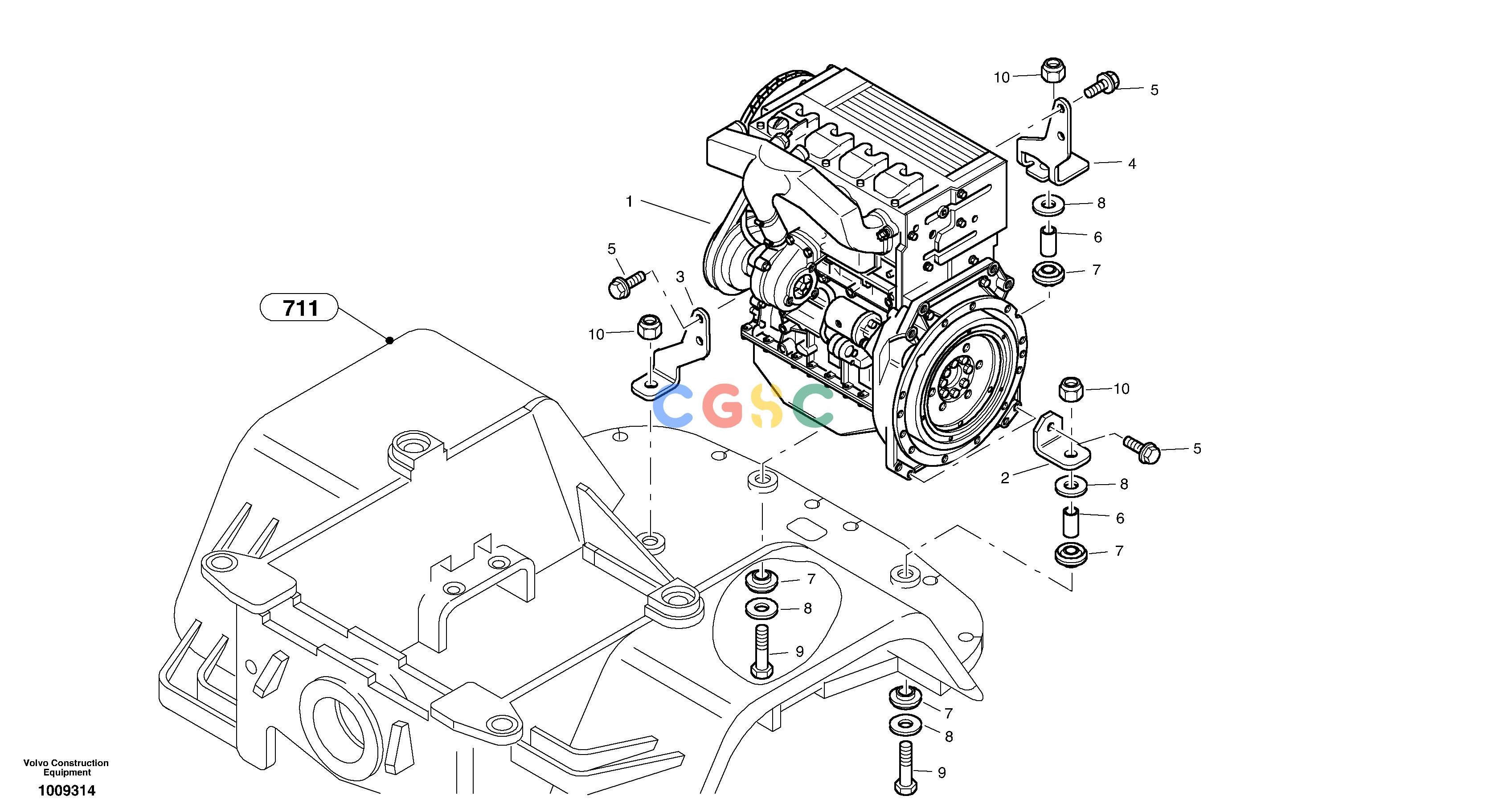

沃尔沃零件查询L35B Engine assyTYPE 186, 187, 188, 189 SER NO 3000 - 600011306228-11309261NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
653 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306228
|
[1] |
Diesel engine
|
|
| 1. |
VOE11309261
|
|
Diesel engine
|
1873663 -
1863884 -
|
| 1. |
VOE11308624
|
|
Engine
|
|
| 1. |
VOE15211728
|
|
Engine
|
|
| 1. |
VOE15216364
|
|
Engine
|
|
| 2. |
VOE11306348
|
[2] |
Retainer
|
|
| 3. |
VOE11306347
|
[1] |
Retainer
|
|
| 4. |
VOE11306346
|
[1] |
Retainer
|
|
| 5. |
VOE975121
|
[6] |
Flange screw
|
M14x30
|
| 5. |
VOE14689739
|
[6] |
Spacer
|
|
| 6. |
ZM2812436
|
[4] |
Tube
|
|
| 7. |
ZM2811225
|
[8] |
Buffer
|
|
| 8. |
VOE11307333
|
[4] |
Washer
|
|
| 9. |
VOE997477
|
[4] |
Hexagon screw
|
M20x100
S/N - 1876047
|
| 9. |
VOE997477
|
[4] |
Hexagon screw
|
M20x100
S/N - 1866419
|
| 9. |
VOE997477
|
[4] |
Hexagon screw
|
M20x100
S/N - 1896283
|
| 9. |
VOE997477
|
[4] |
Hexagon screw
|
M20x100
S/N - 1886165
|
| 9. |
VOE997478
|
[4] |
Hexagon screw
|
M20x100
S/N 1876048 -
|
| 9. |
VOE997478
|
[4] |
Hexagon screw
|
M20x100
S/N 1866420 -
|
| 9. |
VOE997478
|
[4] |
Hexagon screw
|
M20x100
S/N 1896284 -
|
| 9. |
VOE997478
|
[4] |
Hexagon screw
|
M20x100
S/N 1886166 -
|
| 10. |
VOE982489
|
[4] |
Lock nut
|
|
