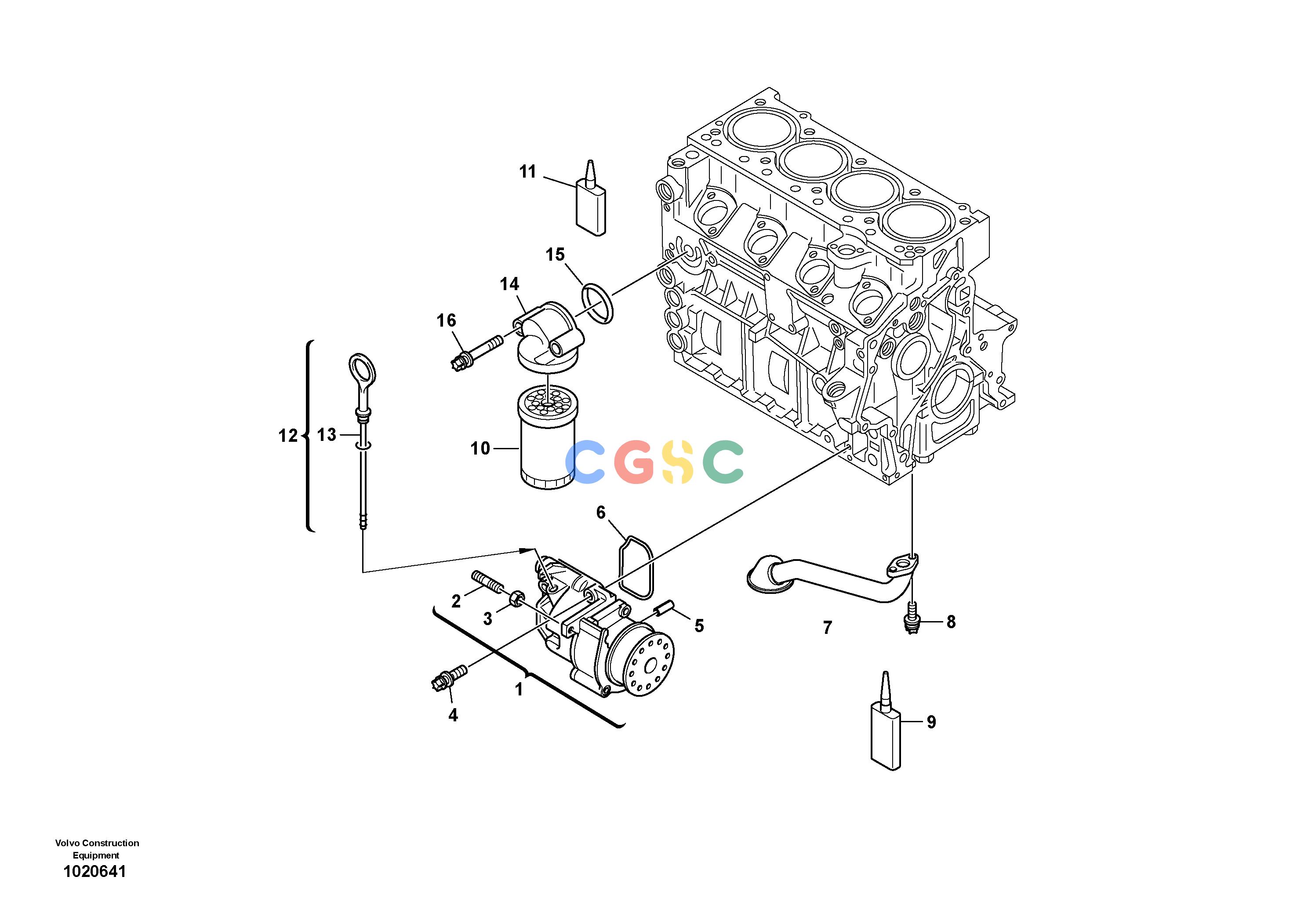

沃尔沃零件查询L35B Oil pump, oil filterTYPE 186, 187, 188, 189 SER NO 3000 - 60001863000--1873000-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE15053902
|
[1] |
Oil pump
|
|
| 2. |
ZM2908502
|
[1] |
Screw Nail
|
M6x40
|
| 3. |
VOE20460939
|
[1] |
Hexagon nut
|
M6
|
| 4. |
ZM2904117
|
[4] |
Screw
|
|
| 5. |
ZM2904118
|
[2] |
Clamping pin
|
|
| 6. |
ZM2904119
|
[1] |
Gasket
|
|
| 7. |
VOE11715751
|
[1] |
Oil pipe
|
|
| 8. |
VOE20797217
|
[2] |
Flange screw
|
|
| 9. |
ZM2903828
|
[REQ] |
Locking agent
|
|
| 10. |
VOE11715272
|
[1] |
Oil filter
|
SB CWL1
|
| 11. |
VOE20464471
|
[REQ] |
Locking fluid
|
|
| 12. |
VOE17506014
|
[1] |
Dipstick
|
|
| 13. |
ZM2905171
|
[1] |
O-ring
|
|
| 14. |
ZM2907622
|
[1] |
Bracket
|
|
| 15. |
ZM2907372
|
[1] |
O-ring
|
|
| 16. |
ZM2908513
|
[2] |
Screw
|
|
