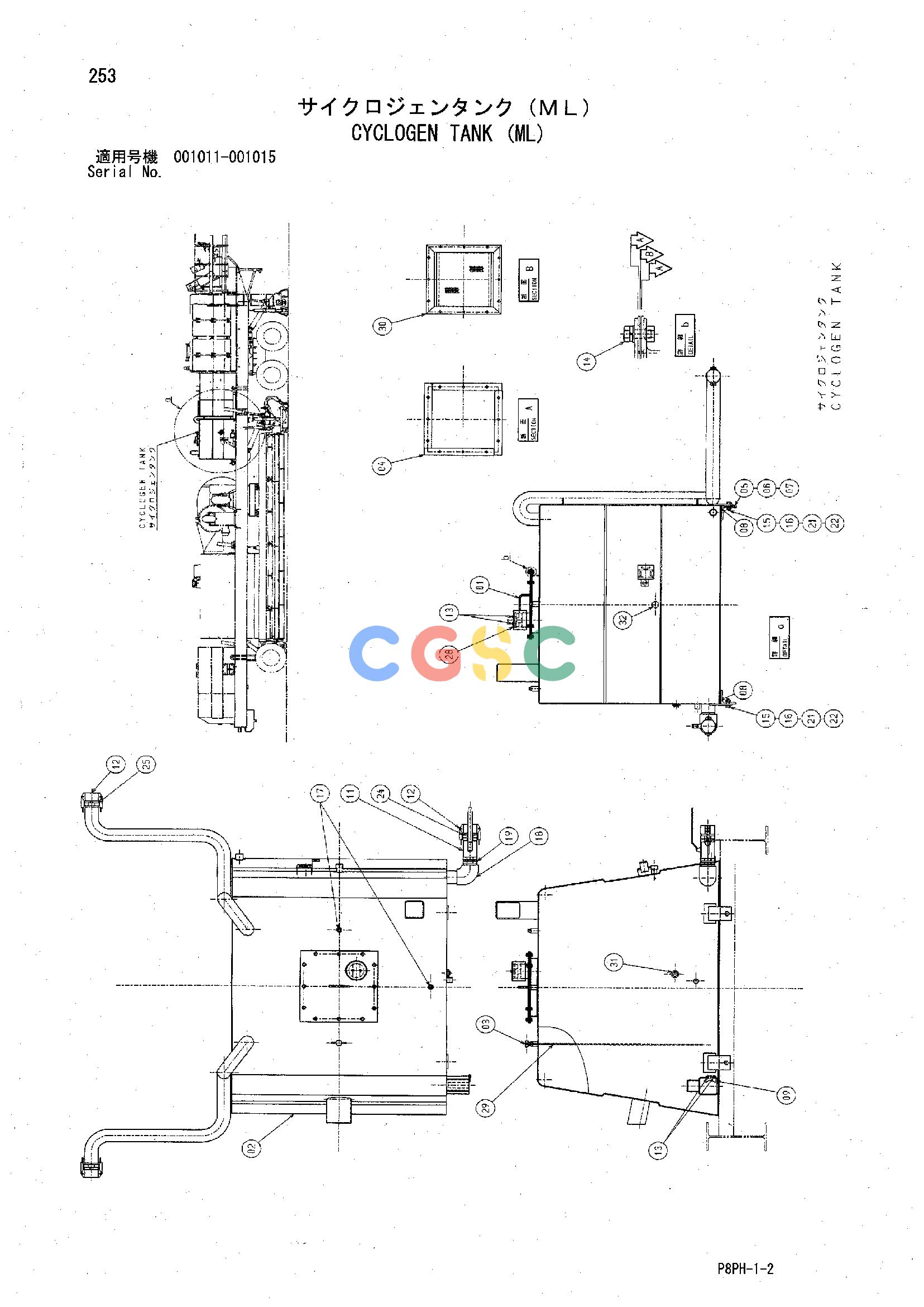

日立零件查询（AR2000）CYCLOGEN TANK (ML) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
178 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y801733 | [1] | COVER | |
| 02. | Y600339 | [1] | TANK | |
| 03. | Y970924 | [1] | PLUG | |
| 04. | Y408729 | [8] | RUBBER | |
| 05. | Y408732 | [4] | SHIM | |
| 06. | Y408731 | [4] | SHIM | |
| 07. | Y408730 | [2] | SHIM | |
| 08. | Y409372 | [2] | RUBBER WASHER | |
| 09. | Y409387 | [1] | PLATE | |
| 11. | Y409388 | [1] | VALVE;BALL | |
| 12. | Y409389 | [3] | CONNECT COUPLING | |
| 13. | J010825 | [4] | BOLT;SEMS | |
| 14. | J021230 | [12] | BOLT;SEMS | |
| 15. | 4248606 | [4] | BOLT | |
| 16. | J950016 | [4] | NUT | |
| 17. | 94-2025 | [2] | PLUG | |
| 18. | 94-0624 | [1] | ELBOW | |
| 19. | Y409390 | [1] | CONNECTOR | |
| 21. | A590916 | [4] | WASHER;SPRING | |
| 22. | A590116 | [4] | WASHER;PLANE | |
| 24. | Y409391 | [1] | PLUG | |
| 25. | Y409401 | [2] | CONNECT COUPLING | |
| 28. | Y801649 | [1] | COVER | |
| 29. | Y409386 | [1] | INDEX ROD | |
| 30. | Y801732 | [1] | STRAINER | |
| 31. | 4259787 | [1] | SWITCH;LEVEL | |
| 32. | Y402803 | [1] | CAP | |
