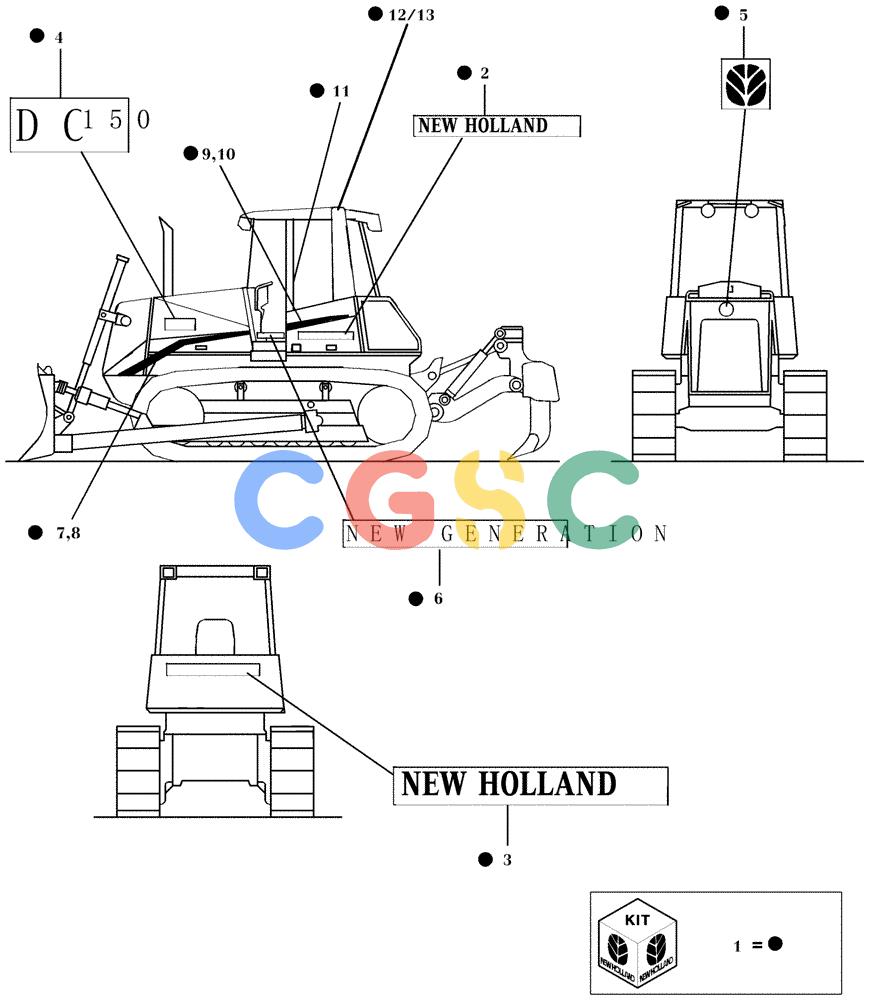

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (6.782[01]) - TRADE MARK DECALS - N.A. VERSION New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
903 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071307 | [1] | DECAL | TORKIT, DECAL - Includes Items 2 thru 11 Superseded by part number: 76069892, 76073083, 76069768, 76069890, 76069779, 76069889, 76069888, 76069893, 76073082, 76069887, 76069710, 76069712 |
| 2. | 76069710 | [2] | MAKERS BADGE | TORDECAL, NEW HOLLAND |
| 3. | 76069712 | [1] | MAKERS BADGE | TORDECAL, NEW HOLLAND |
| 4. | 76069892 | [2] | TYPE PLATE | TORDECAL, DC150 Model |
| 5. | 76069768 | [1] | DEALERSHIP IDENTITY LOGO | TORLOGO |
| 6. | 76069893 | [2] | TYPE PLATE | TORDECAL, NEW GENERATION |
| 7. | 76073082 | [1] | DECAL | TORRED STRIPE - LH |
| 8. | 76073083 | [1] | DECAL | TORRED STRIPE - RH |
| 9. | 76069887 | [1] | DECAL | TORRED STRIPE - LH |
| 10. | 76069888 | [1] | DECAL | TORRED STRIPE - RH |
| 11. | 76069779 | [1] | IDENTITY PLATE | LECPLATE, OPERATION INSTRUCTION |
| 12. | 76069889 | [1] | DECAL | TORLH |
| 13. | 76069890 | [1] | DECAL | TORRH |
