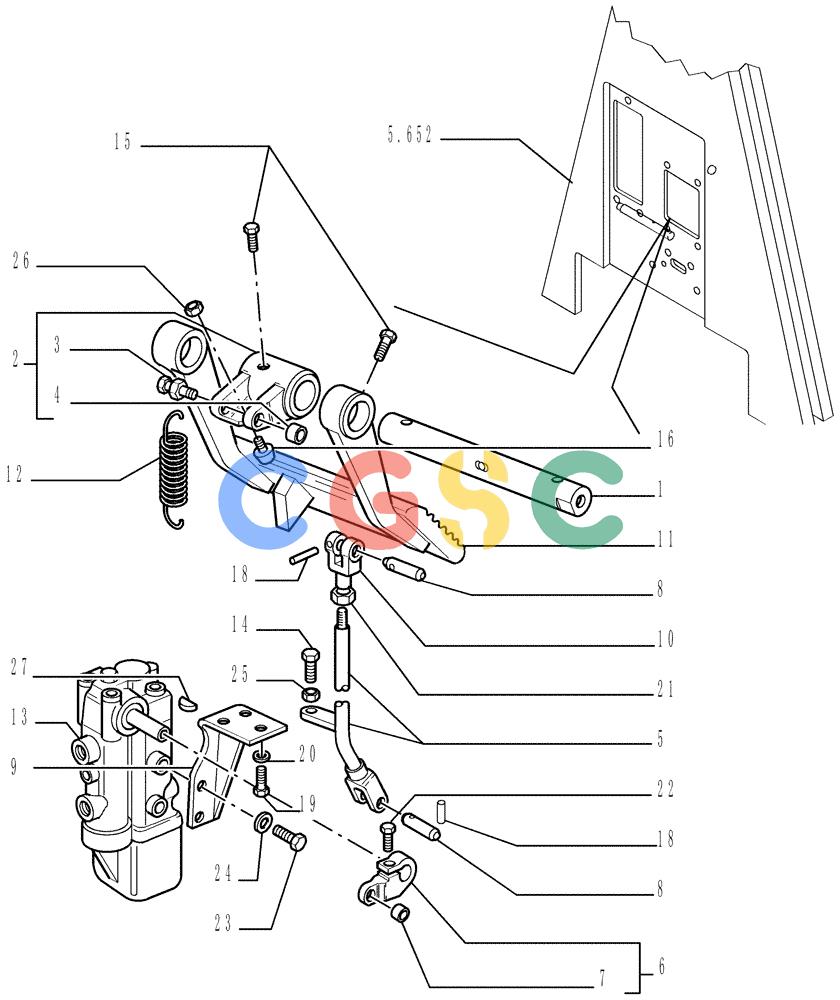

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (2.304[01]) - BRAKE CONTROLS - STEERING CLUTCH New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
819 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79103849 | [1] | PIN,20mm OD x 200mm L | LEC |
| 2. | 79103841 | [1] | HUB | LEC- ASSY |
| 3. | 79087266 | [1] | PIN | LEC |
| 4. | 79087112 | [1] | BUSHING,Needle, 10mm ID x 14mm OD x 10mm W | LEC |
| 5. | 76046982 | [1] | TIE-ROD | LEC |
| 6. | 79103851 | [1] | LEVER | LEC- ASSY |
| 8. | 79103848 | [2] | PIN,10mm OD x 38mm L | LEC |
| 9. | 79103852 | [1] | BRACKET | LEC |
| 10. | 79103837 | [1] | YOKE | LEC |
| 11. | 79089497 | [1] | PEDAL | LEC |
| 12. | 79097662 | [1] | SPRING | LEC |
| 13. | 76068424 | [1] | BRAKE VALVE | LEC- ASSY SEE TAV.4-5 |
| 14. | 76031346 | [1] | SCREW,Rd Slotted, M8 x 1.25 x 47mm | LEC |
| 15. | 569475 | [3] | SCREW | LEC Superseded by part number: 4968815 |
| 16. | 79037282 | [1] | PAD | LEC |
| 18. | 14163271 | [2] | ROLL PIN | LEC4X26 Superseded by part number: 14163270 |
| 19. | 16043531 | [3] | SCREW,Hex, M8 x 1.25 x 22mm, Cl 10.9, Full Thd | LEC |
| 20. | 14496531 | [3] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 21. | 11701721 | [1] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 22. | 16043831 | [1] | SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | BHB Superseded by part number: |
| 23. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
| 24. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 25. | 16102321 | [1] | THIN NUT,Thin, M8 x 1.25, Cl 05 | TTF Superseded by part number: 103889 |
| 26. | 12574521 | [1] | LOCK NUT,M10 x 1.25, Cl 10 | IMO |
| 27. | 10205720 | [1] | WOODRUFF KEY | LEC3X5 Superseded by part number: |
