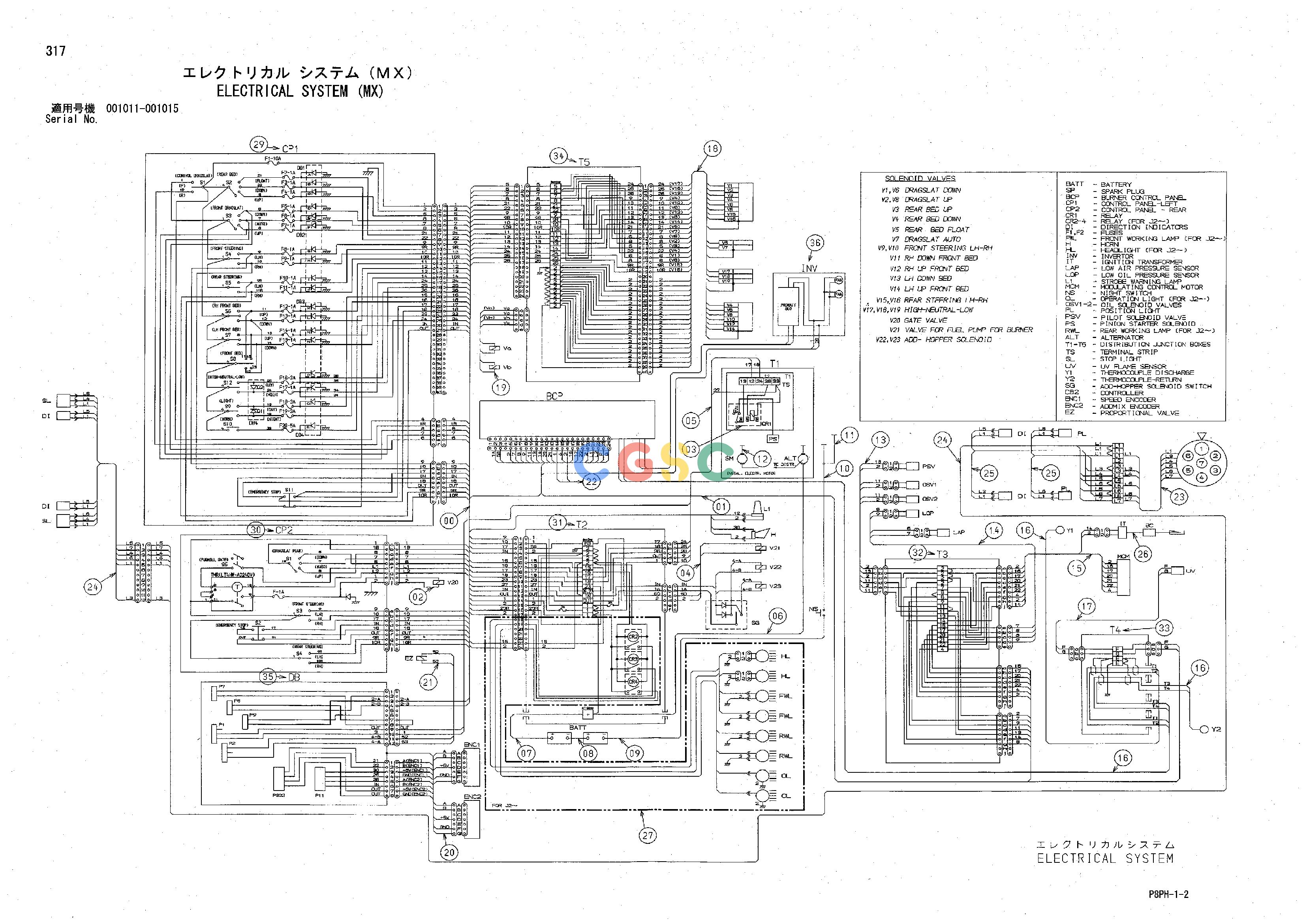

日立零件查询（AR2000）ELECTRICAL SYSTEM (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
876 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414464 | [1] | HARNESS;WIRE | |
| 01. | Y414465 | [1] | HARNESS;WIRE | |
| 02. | Y414466 | [1] | HARNESS;WIRE | |
| 03. | Y414467 | [1] | HARNESS;WIRE | |
| 04. | Y414468 | [1] | HARNESS;WIRE | |
| 05. | Y414469 | [1] | HARNESS;WIRE | |
| 06. | Y414470 | [1] | HARNESS;WIRE | |
| 07. | Y414471 | [1] | HARNESS;WIRE | |
| 08. | Y414472 | [1] | HARNESS;WIRE | |
| 09. | Y414473 | [1] | HARNESS;WIRE | |
| 10. | Y414474 | [1] | HARNESS;WIRE | |
| 11. | Y414475 | [1] | HARNESS;WIRE | |
| 12. | Y414476 | [1] | HARNESS;WIRE | |
| 13. | Y414477 | [1] | HARNESS;WIRE | |
| 14. | Y414478 | [1] | HARNESS;WIRE | |
| 15. | Y414479 | [1] | HARNESS;WIRE | |
| 16. | Y414480 | [1] | HARNESS;WIRE | |
| 17. | Y414481 | [1] | HARNESS;WIRE | |
| 18. | Y414482 | [1] | HARNESS;WIRE | |
| 19. | Y414483 | [1] | HARNESS;WIRE | |
| 20. | Y414484 | [1] | HARNESS;WIRE | |
| 21. | Y414485 | [1] | HARNESS;WIRE | |
| 22. | Y414486 | [1] | HARNESS;WIRE | |
| 23. | Y414487 | [1] | HARNESS;WIRE | |
| 24. | Y414488 | [1] | HARNESS;WIRE | |
| 25. | Y414489 | [1] | HARNESS;WIRE | |
| 26. | Y414490 | [1] | HARNESS;WIRE | |
| 27. | Y414627 | [1] | HARNESS;WIRE | |
| 29. | Y410891 | [1] | PANEL;CONTROL | (CP1) |
| 30. | Y410892 | [1] | PANEL;CONTROL | (CP2) |
| 31. | Y410893 | [1] | BOX;TERMINAL | (T2) |
| 32. | Y410882 | [1] | BOX;TERMINAL | (T3) |
| 33. | Y410883 | [1] | BOX;TERMINAL | (T4) |
| 34. | Y410896 | [1] | BOX;TERMINAL | (T5) |
| 35. | Y410937 | [1] | CONTROLLER | |
| 36. | Y413828 | [1] | PANEL;CONTROL | (DB) |
