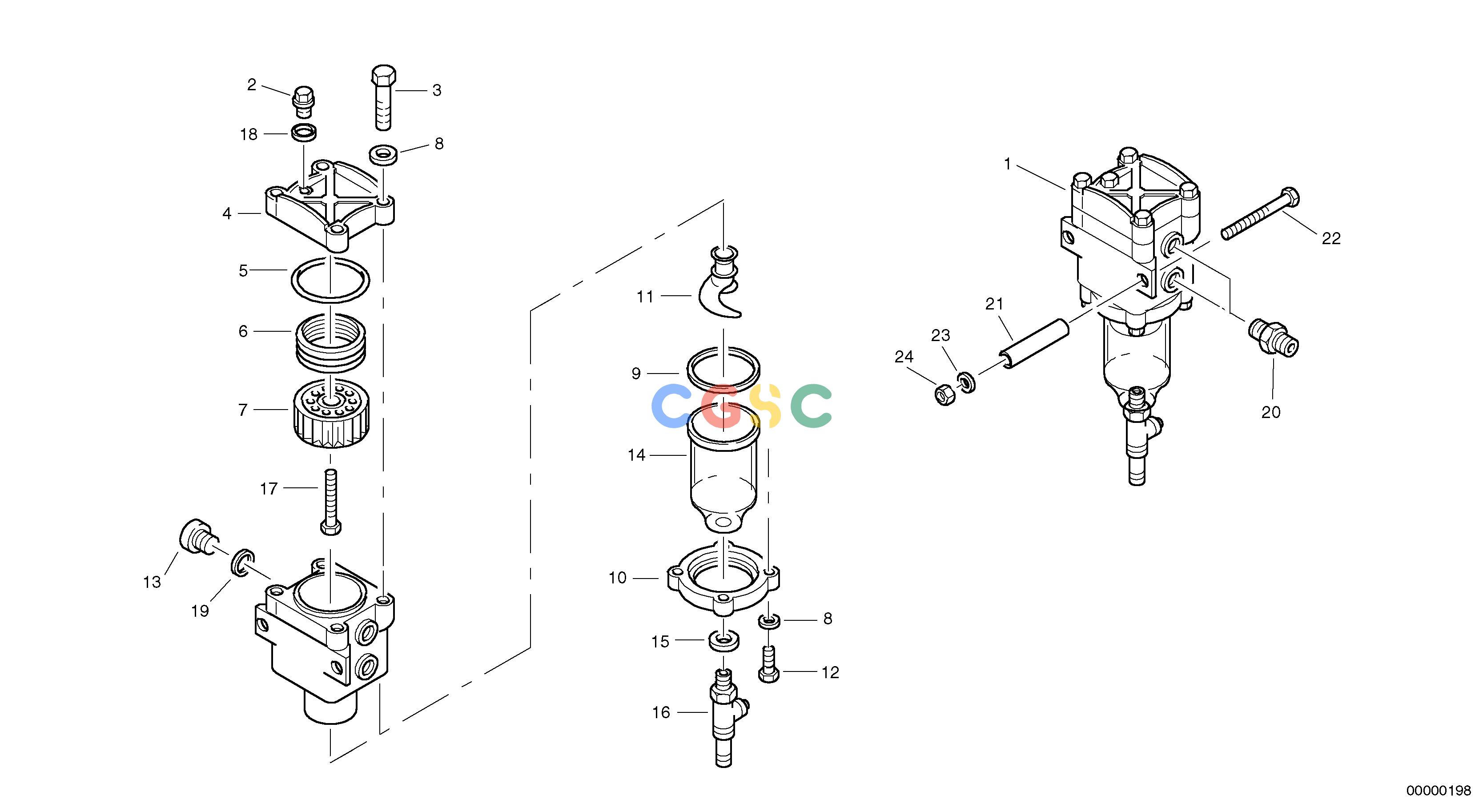

沃尔沃零件查询L40 Filter - Water separatorTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
760 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2805621
|
[1] |
Water separator
|
|
| 10. |
ZM2903692
|
[1] |
Retaining ring
|
|
| 11. |
ZM2903693
|
[1] |
Centrifuge
|
|
| 12. |
ZM2903694
|
[1] |
Screw
|
|
| 13. |
ZM2903695
|
[1] |
Plug
|
|
| 14. |
ZM2903696
|
[1] |
Tank
|
|
| 15. |
ZM2903697
|
[1] |
Gasket
|
|
| 16. |
ZM2903698
|
[1] |
Outlet cock
|
|
| 17. |
ZM2903699
|
[1] |
Screw
|
|
| 18. |
ZM2903700
|
[1] |
Gasket
|
|
| 19. |
ZM2903701
|
[1] |
Gasket
|
|
| 2. |
ZM2903684
|
[1] |
Release screw
|
|
| 20. |
VOE11306785
|
[2] |
Nipple
|
|
| 21. |
ZM2165610
|
[2] |
Pipe
|
|
| 22. |
VOE14370276
|
[2] |
Screw
|
M8x60
|
| 23. |
ZM7098750
|
[2] |
Washer
|
B 8,4
|
| 24. |
ZM7098010
|
[2] |
Nut
|
M8
|
| 3. |
ZM2903685
|
[4] |
Screw
|
|
| 4. |
ZM2903686
|
[1] |
Cover
|
|
| 5. |
ZM2903687
|
[1] |
Seal
|
|
| 6. |
ZM2903688
|
[1] |
Spring
|
|
| 7. |
ZM2903689
|
[1] |
Filter insert
|
|
| 8. |
ZM2903690
|
[4] |
Washer
|
|
| 9. |
ZM2903691
|
[1] |
Seal
|
|
