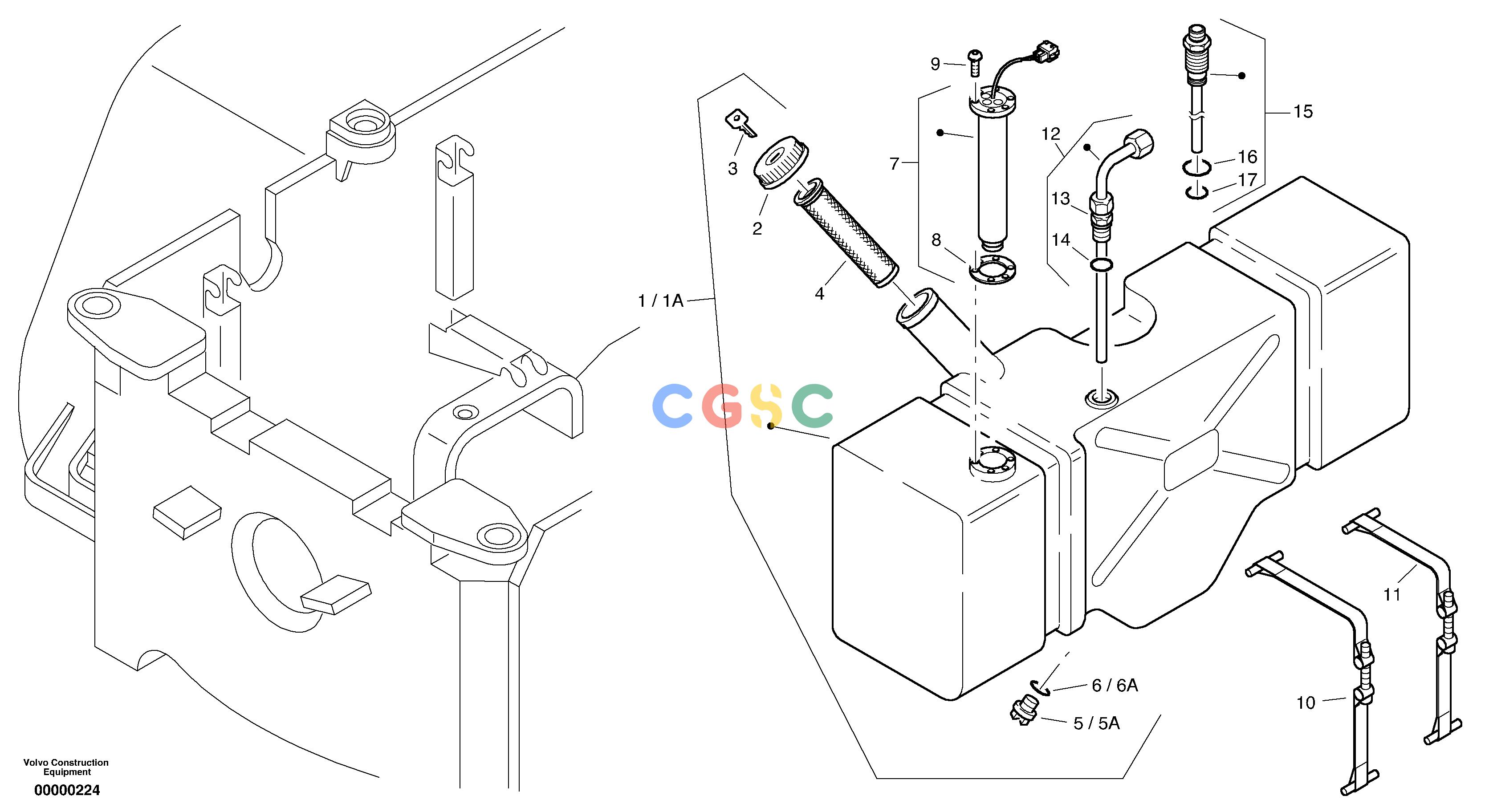

沃尔沃零件查询L40 Fuel tankTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
950 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11370526
|
[1] |
Conversion kit
|
-1911119, -1921326
|
| 1A. |
VOE11306054
|
[1] |
Fuel reservoir
|
1911120-, 1921327-
|
| 2. |
ZM2908944
|
[1] |
Tank cover
|
|
| 4. |
ZM2804112
|
[1] |
Fuel strainer
|
|
| 5. |
ZM2807633
|
[1] |
Plug
|
-1911119, -1921326
|
| 5A. |
ZM7099428
|
[1] |
Screw plug
|
1911120-, 1921327-
|
| 6. |
ZM4380412
|
[1] |
O-ring
|
17x2,5
-1911119, -1921326
|
| 6A. |
ZM1086268
|
[1] |
O-ring
|
1911120-, 1921327-
|
| 7. |
ZM2805650
|
[1] |
Fuel level sensor
|
|
| 8. |
ZM2906069
|
[1] |
Gasket
|
|
| 9. |
VOE11305438
|
[6] |
Screw
|
M4x12
|
| 10. |
ZM2811423
|
[1] |
Clip
|
|
| 11. |
ZM2811413
|
[1] |
Clamp
|
|
| 12. |
ZM2812636
|
[1] |
Suction pipe
|
-1911119, -1921327
|
| 13. |
ZM2811249
|
[1] |
Pipe end
|
-1911119, -1921326
|
| 14. |
ZM2906070
|
[1] |
O-ring
|
13,4x2,1
|
| 15. |
VOE11306080
|
[1] |
Suction pipe
|
1911120-, 1921327-
|
| 16. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 17. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
