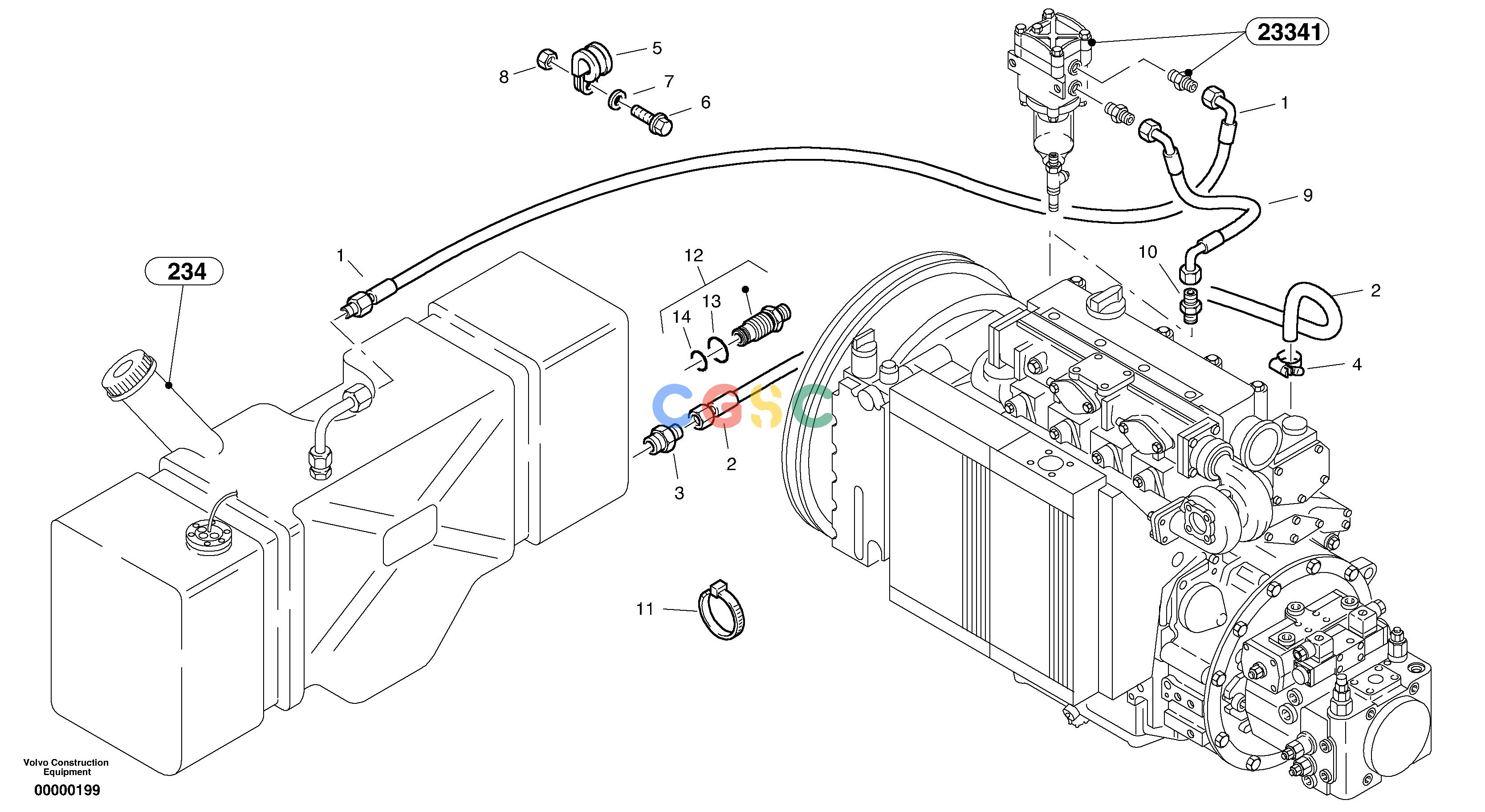

沃尔沃零件查询L40 Fuel pipesTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
303 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813358
|
[1] |
Fuel hose (suction)
|
|
| 2. |
ZM2817351
|
[1] |
Hose
|
|
| 3. |
ZM2811249
|
[1] |
Pipe end
|
-1911119, -1921326
|
| 4. |
ZM2060781
|
[1] |
Clip
|
12x9
|
| 5. |
ZM5054800
|
[5] |
Clip
|
D1-16X20
|
| 6. |
ZM2804624
|
[1] |
Screw
|
M6x20
|
| 7. |
ZM2803439
|
[1] |
Washer
|
B6,4
|
| 8. |
ZM7098000
|
[1] |
Nut
|
M6
|
| 9. |
ZM2813359
|
[1] |
Fuel hose
|
|
| 10. |
ZM2806536
|
[1] |
Nipple
|
|
| 11. |
ZM2193590
|
[6] |
Cable clip
|
|
| 12. |
VOE11306079
|
[1] |
Fitting
|
1911120-, 1921327-
|
| 13. |
VOE11370540
|
[1] |
O-ring
|
22x5,5
|
| 14. |
VOE11370541
|
[1] |
O-ring
|
14x5
|
