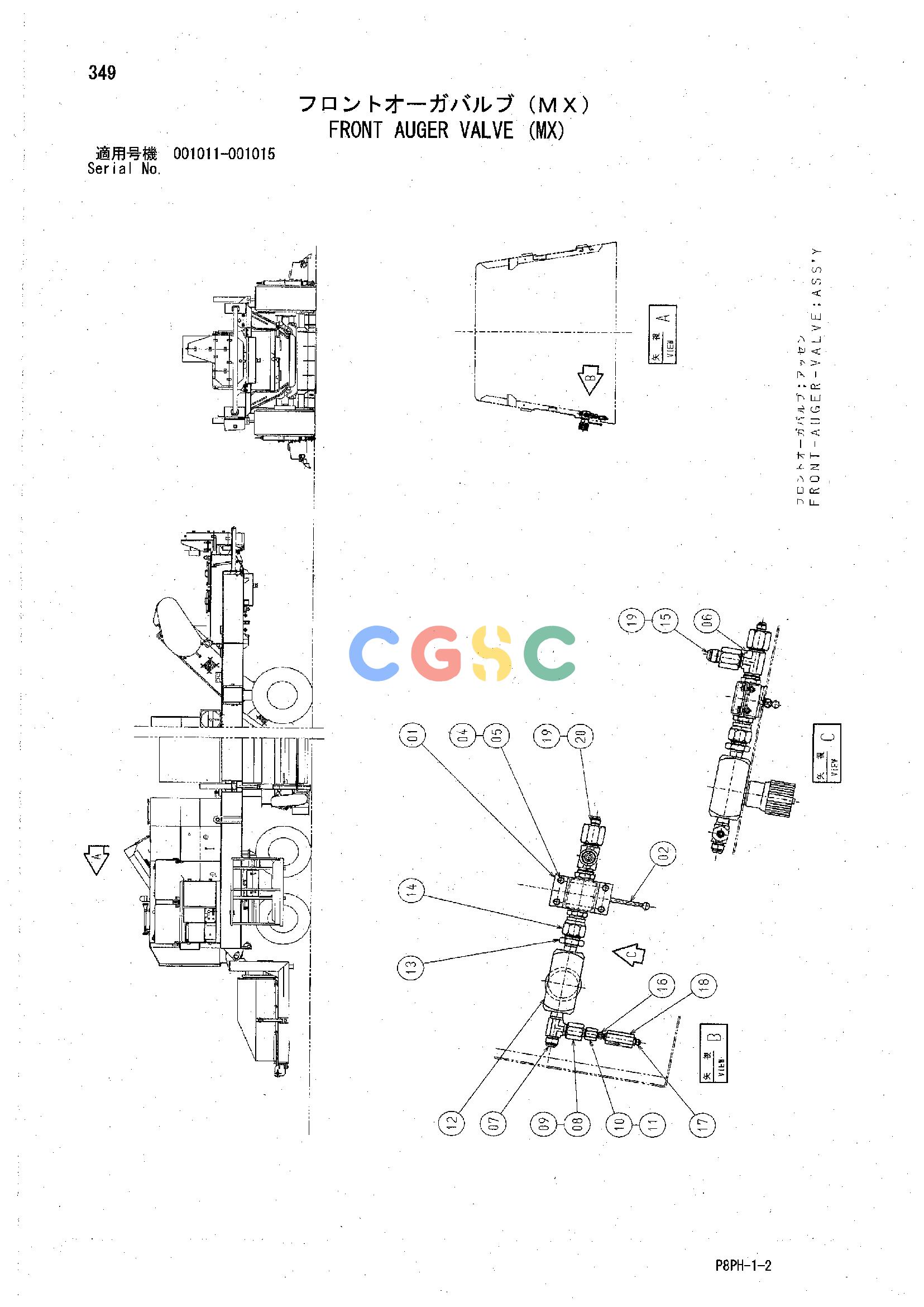

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 01. | Y407981 | [1] | CLAMPING RING | |
| 02. | 88-0133 | [1] | BALL VALVE | HYCON KHB25-SAE-1-1-1-4 |
| 04. | A590908 | [4] | WASHER;SPRING | |
| 05. | J900825 | [4] | BOLT | |
| 06. | 88-2104 | [1] | TEE | PARKER 16R50XSS |
| 07. | 88-2156 | [1] | TEE | PARKER 12RTXSS |
| 08. | 88-2115 | [1] | REDUCER | PARKER 12-8TRTXSS |
| 09. | 88-2004 | [1] | NUT | PARKER 12BMTXSS |
| 10. | 88-2062 | [1] | REDUCER | PARKER 8-4TRTXSS |
| 11. | 88-2001 | [1] | NUT | PARKER 8BMTXSS |
| 12. | 88-0131 | [1] | FLOW CONTROL VALVE | HYCON SRV-16-1.3/5V |
| 13. | 88-2155 | [1] | CONNECTOR | PARKER 16-12FTXSS |
| 14. | 88-2127 | [1] | CONNECTOR | PARKER 16F650MXSS |
| 15. | 88-2120 | [1] | REDUCER | PARKER 16-12TRTXSS |
| 16. | 88-2063 | [1] | CONNECTOR | PARKER 4F650MXSS |
| 17. | 88-2064 | [1] | CONNECTOR | PARKER 4F50XSS |
| 18. | 88-0058 | [1] | VALVE;CHECK | HYCON RV-8-1.0/12 |
| 19. | 88-2101 | [1] | NUT | PARKER 16BMTXSS |
| 20. | 88-2100 | [1] | REDUCER | PARKER 16-8TRTXSS |
