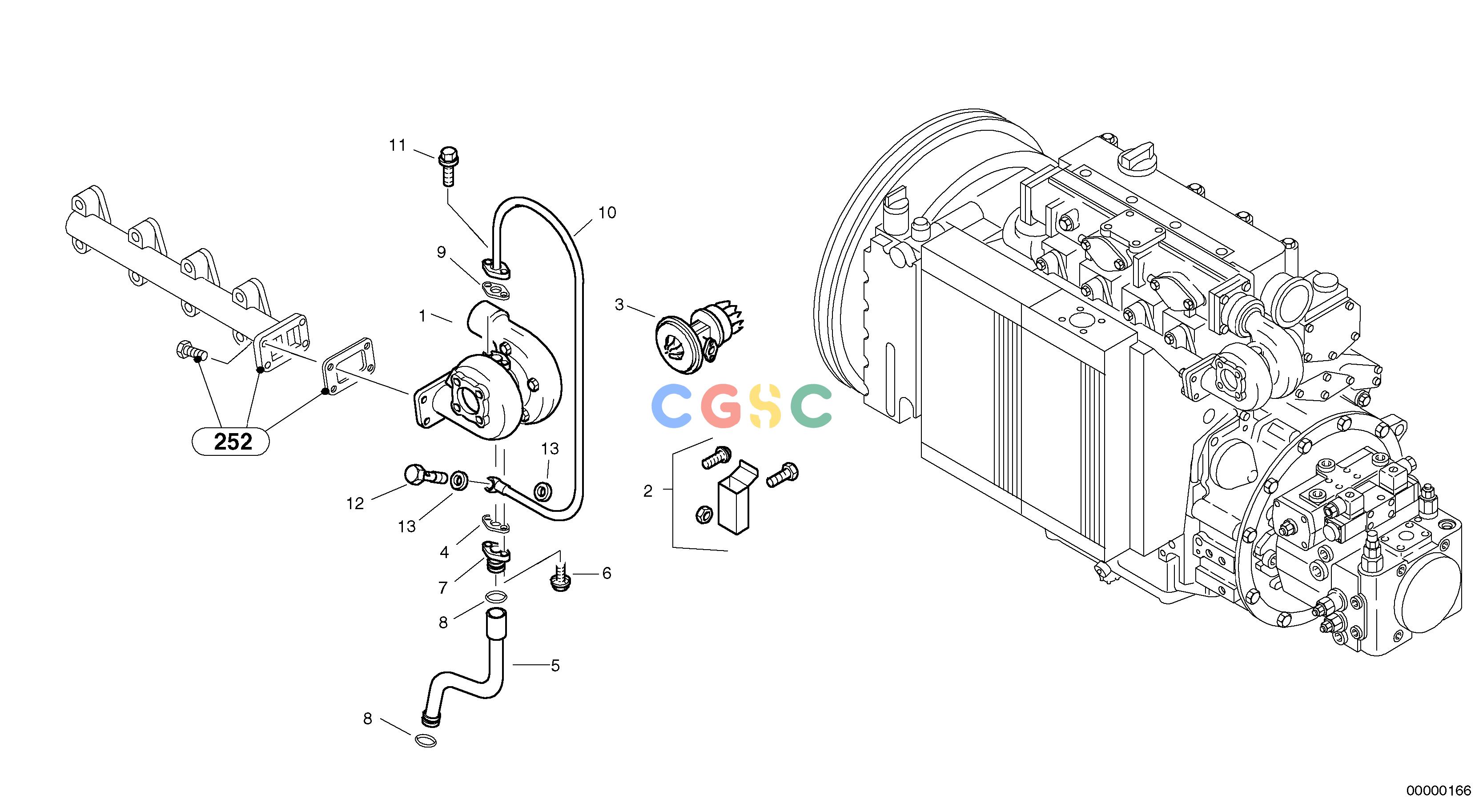

沃尔沃零件查询L40 Exhaust turbo - super chargerTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
484 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20412317
|
[1] |
Turbocharger
|
|
| 10. |
ZM2903719
|
[1] |
Oil Line
|
|
| 11. |
VOE20405885
|
[2] |
Screw
|
|
| 12. |
VOE60113509
|
[1] |
Hollow screw
|
|
| 13. |
ZM7099503
|
[2] |
Seal
|
A14x18
|
| 2. |
ZM2907021
|
[1] |
Repair Kit
|
|
| 3. |
VOE20412317
|
[1] |
Turbocharger
|
|
| 4. |
ZM4074630
|
[1] |
Gasket
|
|
| 5. |
ZM2904347
|
[1] |
Return Line
|
|
| 6. |
VOE20405885
|
[2] |
Screw
|
|
| 7. |
VOE20405879
|
[1] |
Flange
|
|
| 8. |
VOE20405822
|
[2] |
Sealing ring
|
|
| 9. |
VOE20405595
|
[1] |
Gasket
|
|
