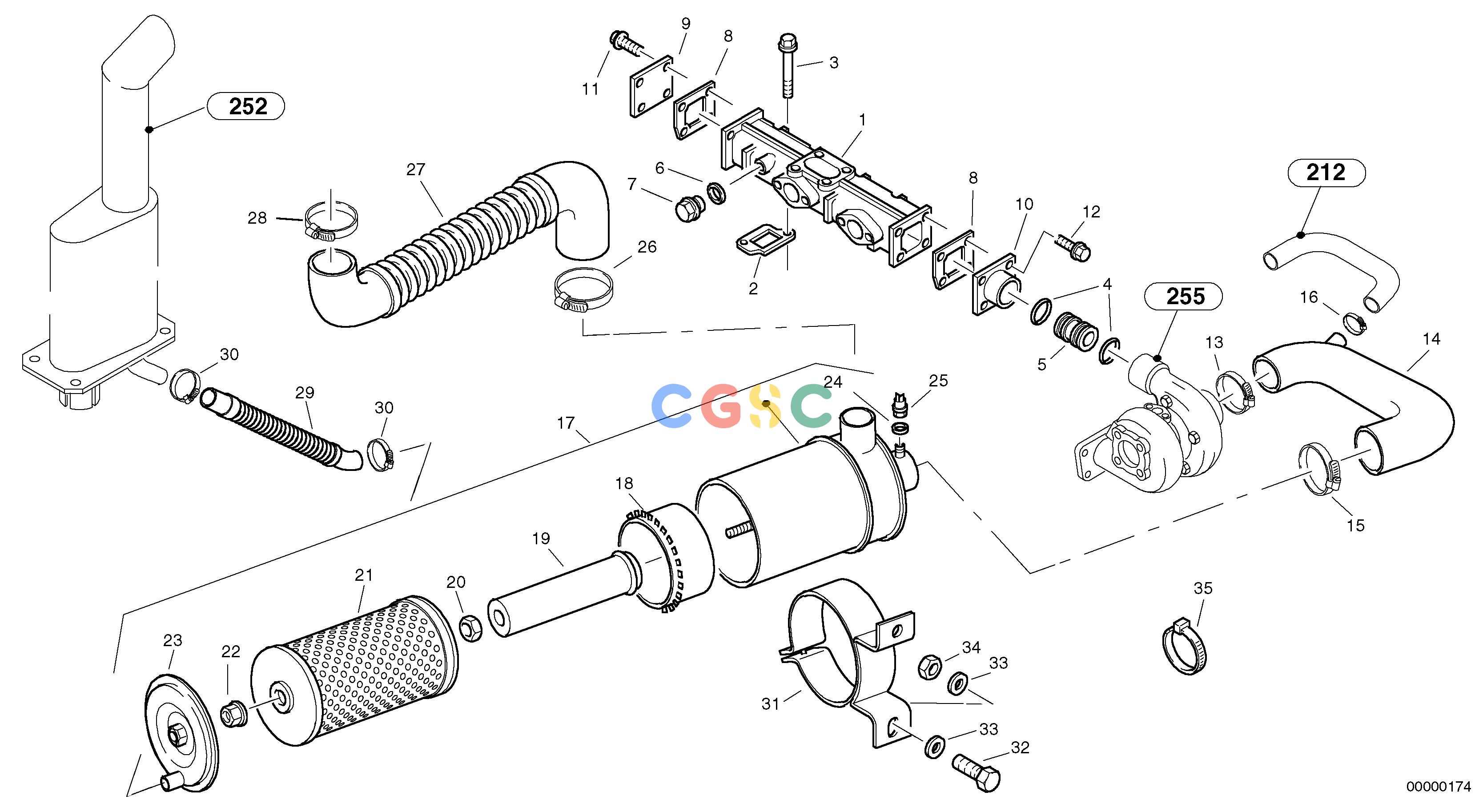

沃尔沃零件查询L40 Suction system, filterTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20586810
|
[1] |
Inlet Manifold
|
|
| 10. |
VOE22417599
|
[1] |
Flange
|
|
| 11. |
VOE20460241
|
[4] |
Screw
|
M8x22
|
| 12. |
VOE20481759
|
[4] |
Screw
|
|
| 13. |
ZM2060784
|
[1] |
Clip
|
AS50-70
|
| 14. |
ZM2812546
|
[1] |
Hose
|
|
| 15. |
VOE943483
|
[1] |
Hose clamp
|
|
| 16. |
ZM2060782
|
[1] |
Clip
|
AS20-32
|
| 17. |
VOE11033776
|
[1] |
Air cleaner
|
|
| 18. |
VOE11994340
|
[1] |
Turbine end unit
|
|
| 19. |
ZM2262480
|
[1] |
Filter
|
|
| 2. |
VOE21815267
|
[4] |
Gasket
|
|
| 20. |
ZM7098062
|
[1] |
Nut
|
BM16x1,5
|
| 21. |
ZM2078240
|
[1] |
Air filter
|
|
| 22. |
ZM2088790
|
[1] |
Nut
|
|
| 23. |
VOE787407
|
[1] |
Cover
|
|
| 24. |
VOE4836166
|
[1] |
Felt ring
|
|
| 25. |
ZM4373200
|
[1] |
Switch
|
|
| 26. |
VOE943483
|
[1] |
Hose clamp
|
|
| 27. |
ZM2810940
|
[1] |
Hose
|
|
| 28. |
ZM2060785
|
[1] |
Clip
|
AS70-90
|
| 29. |
ZM2810940
|
[1] |
Hose
|
|
| 3. |
VOE22278501
|
[8] |
Hexagon screw
|
M6x95
|
| 30. |
ZM2060782
|
[2] |
Clip
|
AS20-32
|
| 31. |
ZM2078290
|
[1] |
Bracket
|
|
| 32. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 33. |
VOE960148
|
[4] |
Plain washer
|
B10,5
|
| 34. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 35. |
ZM4375500
|
[2] |
Cable clamp
|
|
| 4. |
VOE20405536
|
[2] |
Sealing ring
|
|
| 5. |
VOE20405616
|
[1] |
Adapter
|
|
| 6. |
ZM7099503
|
[1] |
Seal
|
A14x18
|
| 7. |
ZM8099411
|
[1] |
Screw
|
M14x1,5
|
| 8. |
VOE20451009
|
[2] |
Gasket
|
|
| 9. |
ZM2903945
|
[1] |
Cover
|
|
