沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemAftercoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
582 次

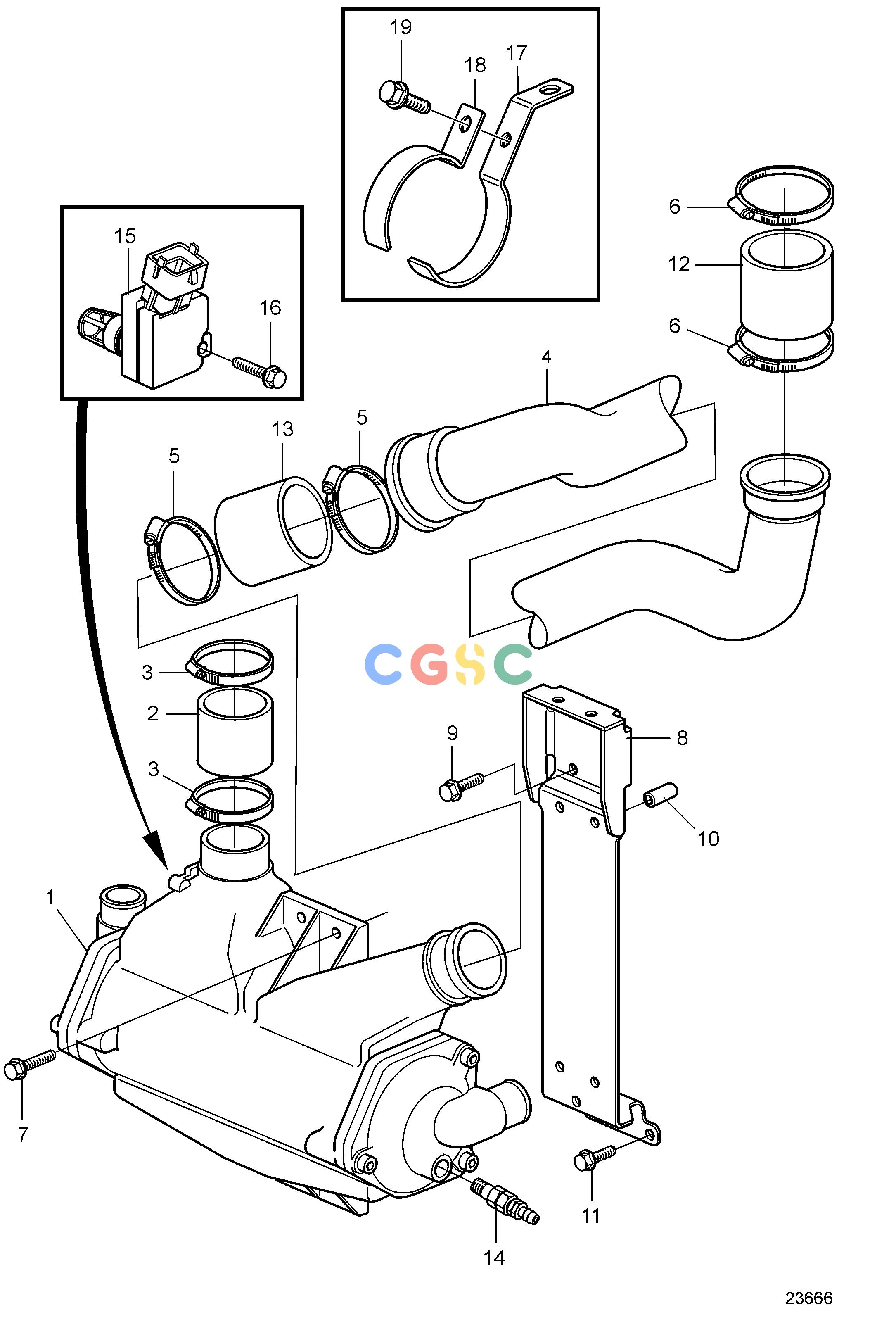

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
888513
|
[1] |
Charge air cooler
|
|
| 1. |
|
|
|
|
| 2. |
3584328
|
[1] |
Hose
|
|
| 3. |
943480
|
[2] |
Hose clamp
|
|
| 4. |
3589828
|
[1] |
Tube, turbo
|
(3588796)
|
| 5. |
943480
|
[2] |
Hose clamp
|
|
| 6. |
943479
|
[2] |
Hose clamp
|
|
| 7. |
946671
|
[4] |
Flange screw
|
|
| 8. |
3584472
|
[1] |
Bracket
|
|
| 9. |
965182
|
[2] |
Flange screw
|
|
| 10. |
858392
|
[2] |
Spacer sleeve
|
|
| 11. |
981177
|
[2] |
Flange screw
|
|
| 12. |
466327
|
[1] |
Hose
|
|
| 13. |
470464
|
[1] |
Radiator hose
|
|
| 14. |
949918
|
[1] |
Shut-off cock
|
|
| 15. |
8677288
|
[1] |
Sensor
|
|
| 16. |
969408
|
[1] |
Six point socket scr
|
|
| 17. |
3817119
|
[1] |
Bracket
|
|
| 18. |
3817121
|
[1] |
Bracket
|
|
| 19. |
967949
|
[1] |
Flange screw
|
|
