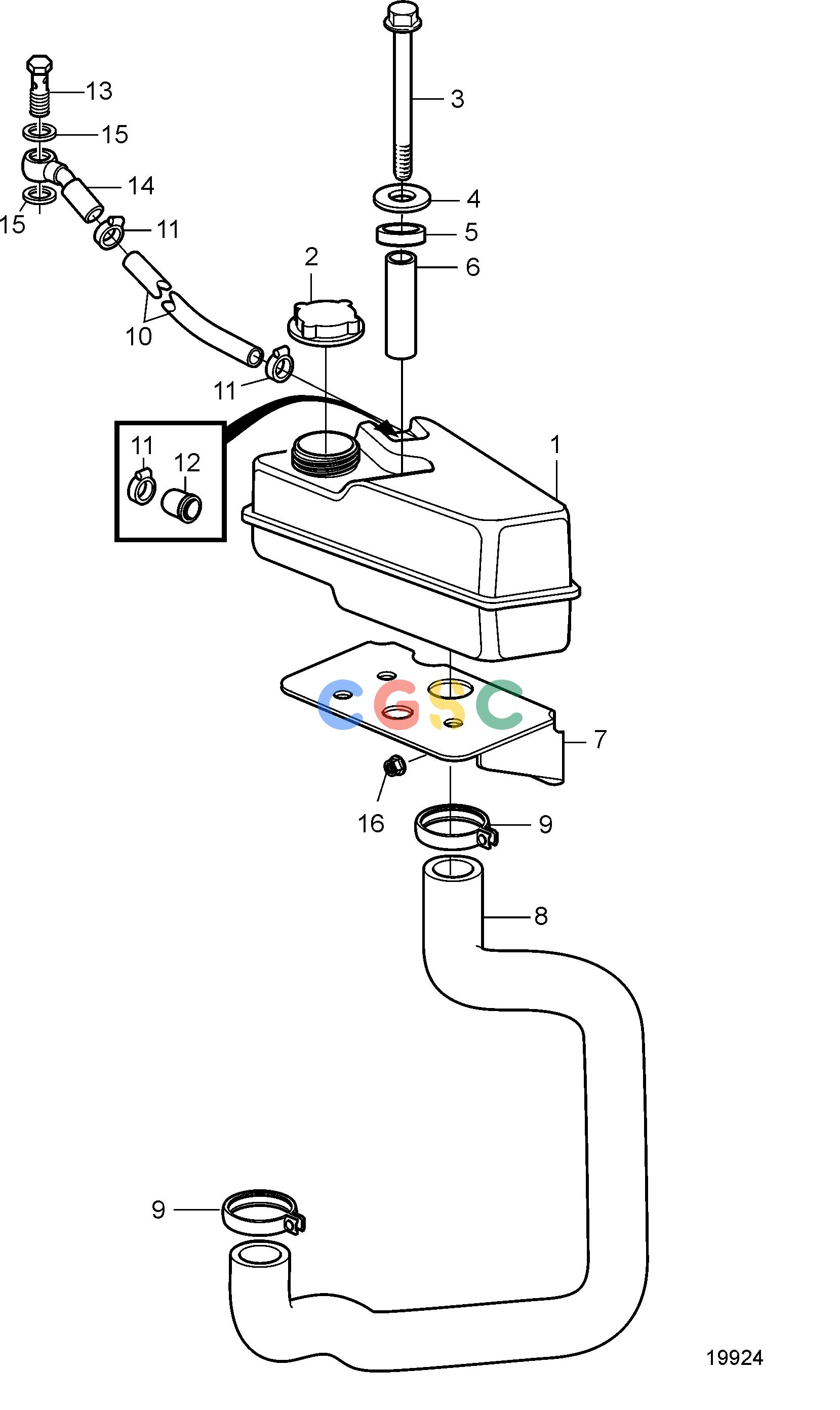

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemExpansion TankEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3580941
|
[1] |
Expansion tank
|
|
| 2. |
9445462
|
[1] |
Filler cap
|
|
| 3. |
968999
|
[1] |
Flange screw
|
|
| 4. |
976944
|
[1] |
Washer
|
|
| 5. |
3285120
|
[1] |
Spacer sleeve
|
|
| 6. |
3581032
|
[1] |
Spacer sleeve
|
|
| 7. |
3594262
|
[1] |
Bracket
|
|
| 8. |
3584326
|
[1] |
Hose
|
|
| 9. |
993961
|
[2] |
Hose clamp
|
|
| 10. |
942700
|
[1] |
Hose
|
L=680mm
|
| 11. |
945652
|
[3] |
Hose clamp
|
|
| 12. |
1276516
|
[1] |
Rubber cap
|
|
| 13. |
969299
|
[1] |
Hollow screw
|
|
| 14. |
858750
|
[1] |
Banjo nipple
|
|
| 15. |
11994
|
[2] |
Gasket
|
|
| 16. |
990940
|
[3] |
Flange nut
|
|
