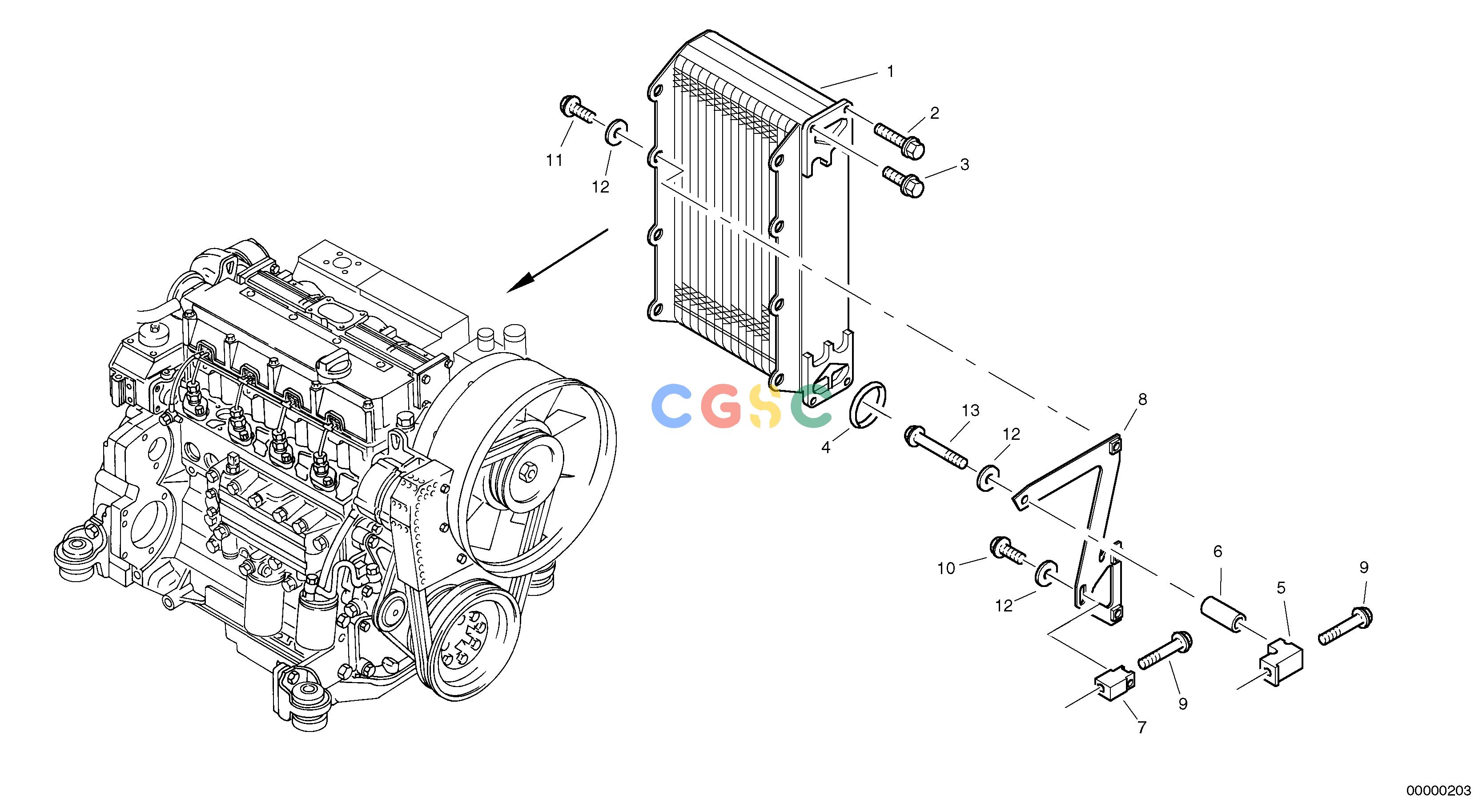

沃尔沃零件查询L40 Cooler with attaching partsTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906958
|
[1] |
Water cooler
|
-1910108/-1920219
|
| 9. |
VOE11700269
|
[2] |
Screw
|
|
| 10. |
VOE20412324
|
[1] |
Screw
|
|
| 11. |
VOE20405885
|
[3] |
Screw
|
|
| 12. |
VOE11305837
|
[5] |
Washer
|
B 8,4
|
| 13. |
VOE20405672
|
[1] |
Screw
|
|
| 1. |
ZM2810917
|
[1] |
Water cooler
|
1910109-/1920220-
|
| 2. |
VOE20412340
|
[4] |
Screw
|
|
| 3. |
VOE20781483
|
[4] |
Flange screw
|
|
| 4. |
VOE20799134
|
[2] |
O-ring
|
|
| 5. |
ZM2906950
|
[1] |
Bracket
|
|
| 6. |
ZM2906951
|
[1] |
Bushing
|
|
| 7. |
ZM2906952
|
[1] |
Bracket
|
|
| 8. |
ZM2906953
|
[1] |
Support
|
|
