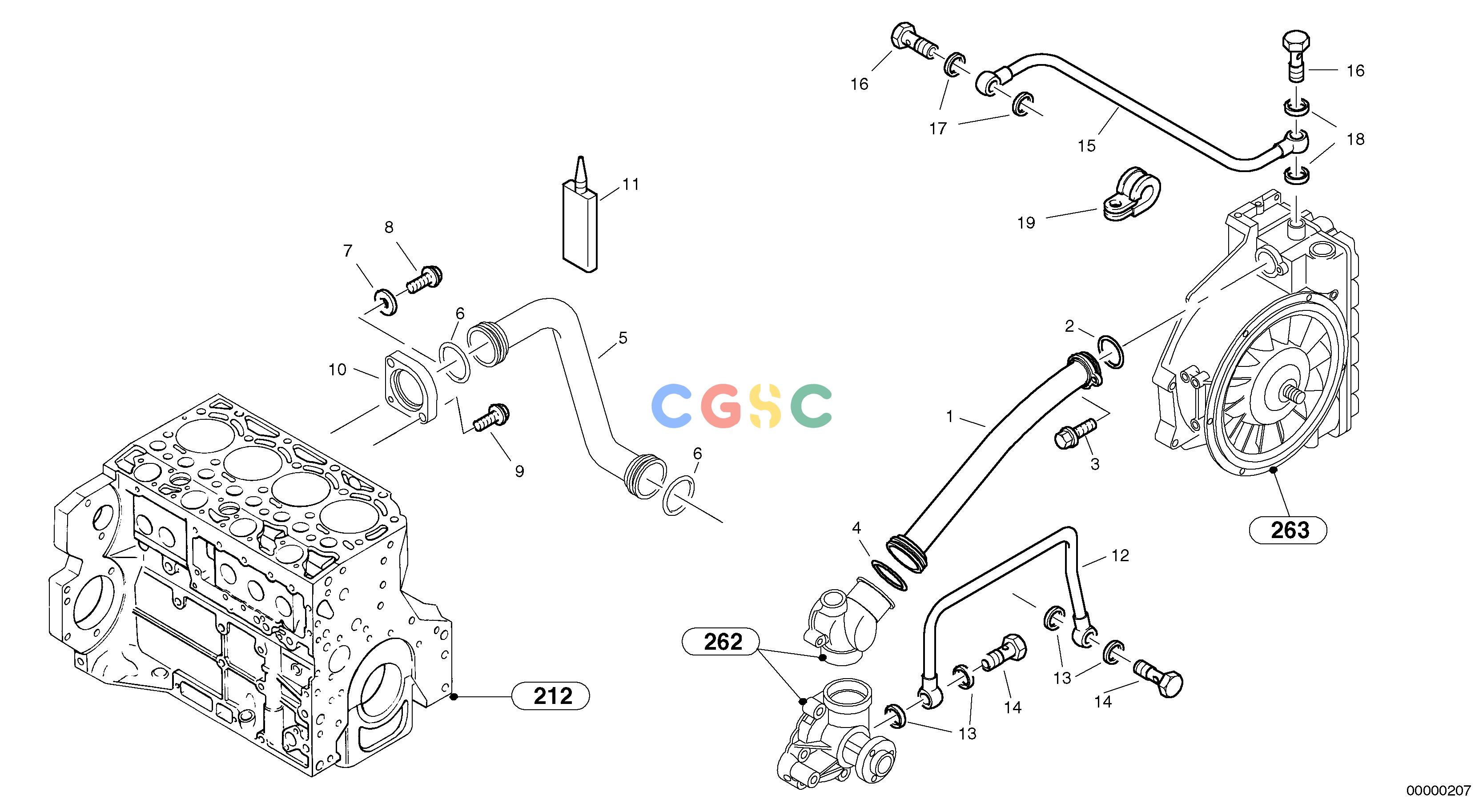

沃尔沃零件查询L40 Cooling pipesTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
580 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2906962
|
[1] |
Coolant Pipe
|
|
| 10. |
ZM2906970
|
[1] |
Flange
|
|
| 11. |
ZM2903828
|
[REQ] |
Locking agent
|
|
| 12. |
ZM2906965
|
[1] |
Tube
|
|
| 13. |
VOE957179
|
[4] |
Gasket
|
A16x20
|
| 14. |
VOE20460400
|
[2] |
Hollow screw
|
|
| 15. |
ZM2906967
|
[1] |
Pipe
|
|
| 16. |
VOE980973
|
[2] |
Hollow screw
|
6
|
| 17. |
ZM8099570
|
[2] |
Gasket
|
A10x16
|
| 18. |
VOE13947281
|
[2] |
Gasket
|
A10x13,5
|
| 19. |
ZM2903833
|
[2] |
Pipe clip
|
|
| 2. |
VOE21082689
|
[1] |
O-ring
|
|
| 3. |
VOE20405792
|
[1] |
Screw
|
|
| 4. |
ZM2906964
|
[1] |
O-ring
|
|
| 5. |
ZM2906968
|
[1] |
Coolant Pipe
|
|
| 6. |
VOE21082689
|
[2] |
O-ring
|
|
| 7. |
VOE11305837
|
[1] |
Washer
|
B 8,4
|
| 8. |
VOE20405885
|
[1] |
Screw
|
|
| 9. |
VOE20412324
|
[2] |
Screw
|
|
