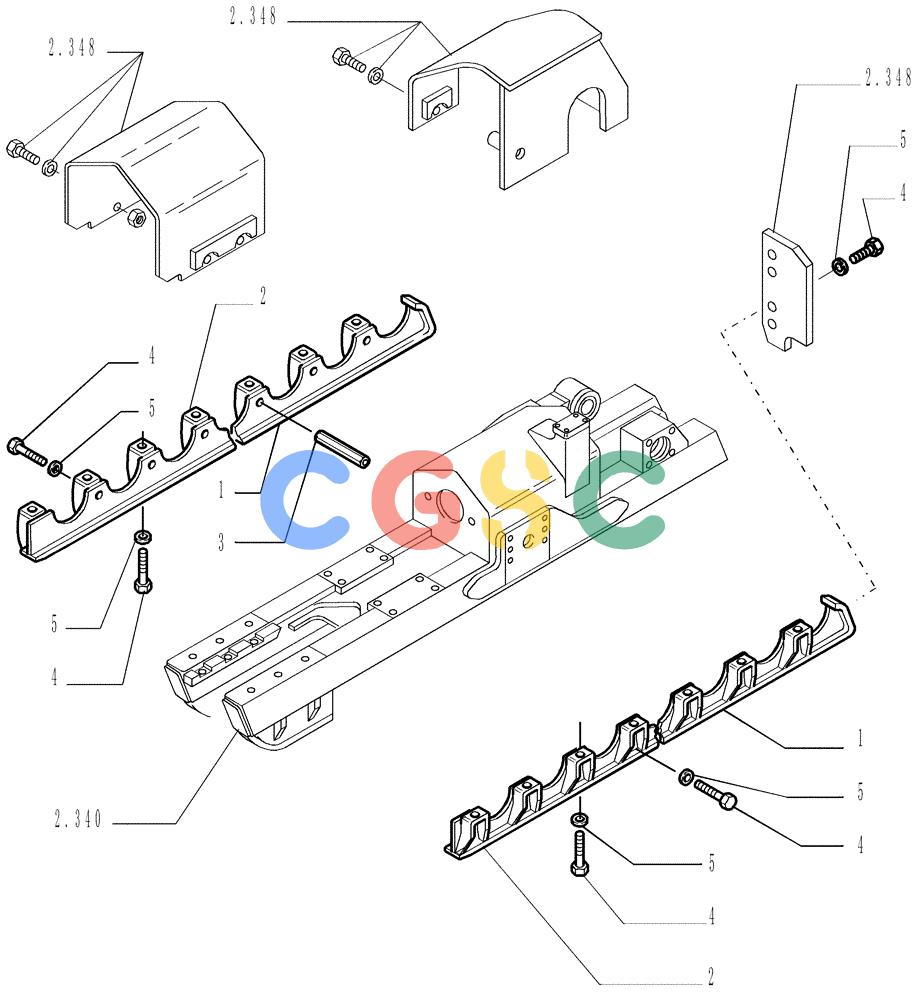

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.353[01]) - TRACK GUARDS - OPTIONAL CODE 76054955 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
672 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069319 | [2] | GUARD | LEC- REAR LEFT |
| 1. | 76069320 | [2] | GUARD | LEC- REAR RIGHT |
| 2. | 76069318 | [2] | GUARD | LEC- FRONT RIGHT |
| 2. | 76069317 | [2] | GUARD | LEC- FRONT LEFT |
| 3. | 76054818 | [8] | PROP | LEC |
| 4. | 11390531 | [32] | BOLT,Hex, M16 x 1.5 x 40, 10.9, Full Thd | LEC Superseded by part number: 11390534 |
| 5. | 79005240 | [32] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
