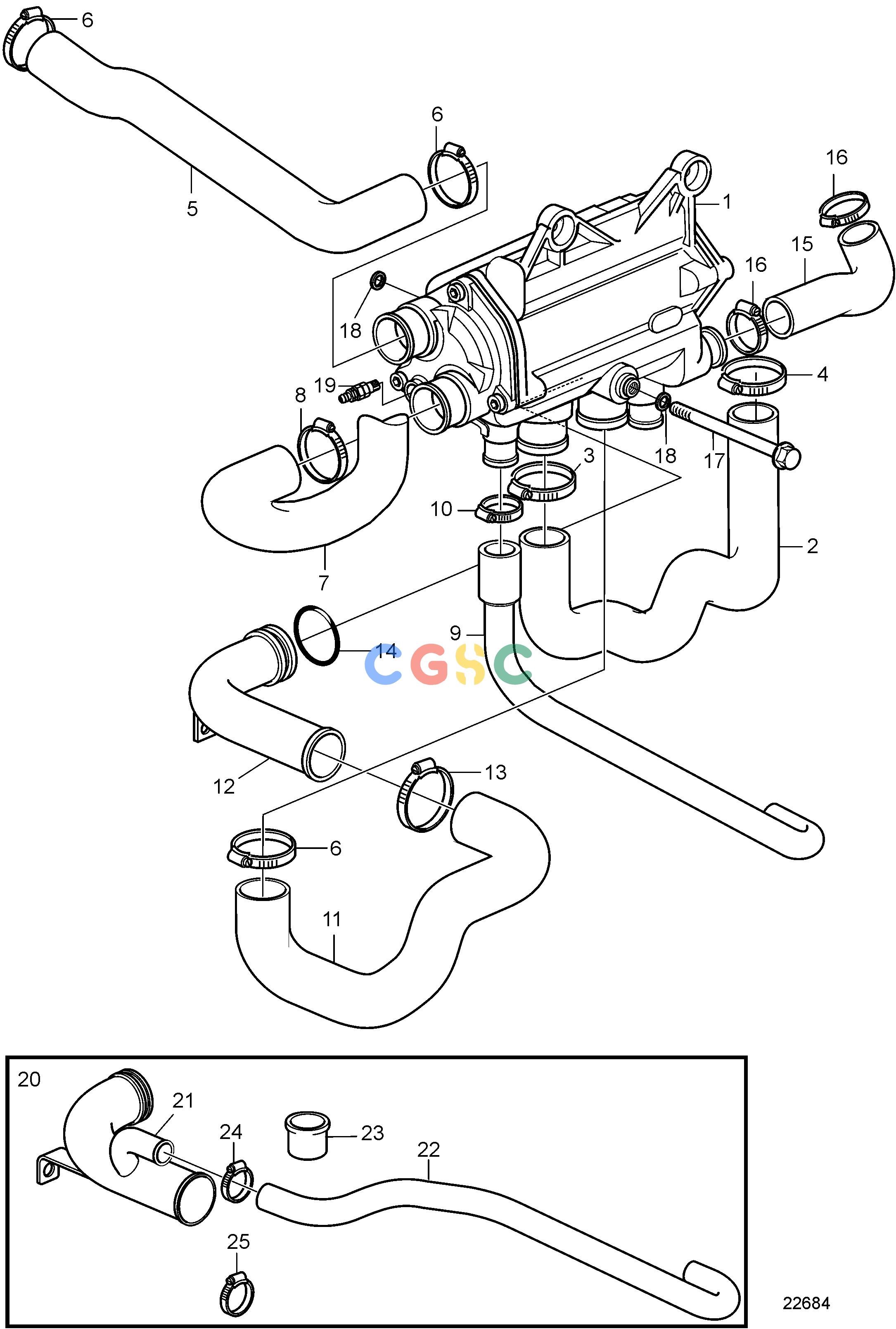

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemHeat Exchanger with Installation PartsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
910 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3586805
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
3584322
|
[1] |
Hose, therm. housing
|
|
| 3. |
994562
|
[1] |
Hose clamp
|
|
| 4. |
943478
|
[1] |
Hose clamp
|
|
| 5. |
3584323
|
[1] |
Hose
|
Heat exchanger-after cooler.
|
| 6. |
994562
|
[3] |
Hose clamp
|
|
| 7. |
3584324
|
[1] |
Hose
|
Heat exchanger-exhaust pipe elbow.
|
| 8. |
943479
|
[1] |
Hose clamp
|
|
| 9. |
3584291
|
[1] |
Hose
|
Heat exchanger-oil cooler., Superseded by kit 3817479. See fig No 20.
|
| 10. |
943473
|
[1] |
Hose clamp
|
|
| 11. |
3587150
|
[1] |
Hose, circulation pump
|
|
| 12. |
3587250
|
[1] |
Pipe connection, circulation pump
|
Superseded by kit 3817479. See fig No 20.
|
| 13. |
994561
|
[1] |
Hose clamp
|
|
| 14. |
976045
|
[1] |
O-ring
|
|
| 15. |
3584330
|
[1] |
Hose, therm. housing
|
|
| 16. |
993962
|
[2] |
Hose clamp
|
|
| 17. |
968892
|
[1] |
Flange screw
|
|
| 18. |
976944
|
[2] |
Washer
|
|
| 19. |
949918
|
[1] |
Shut-off cock
|
|
| 20. |
3817479
|
[1] |
Coolant pipe, kit
|
|
| 21. |
3817368
|
[1] |
Pipe
|
|
| 22. |
3812465
|
[1] |
Hose
|
|
| 23. |
845422
|
[1] |
Plastic plug
|
|
| 24. |
943472
|
[1] |
Hose clamp
|
|
| 25. |
943473
|
[1] |
Hose clamp
|
|
