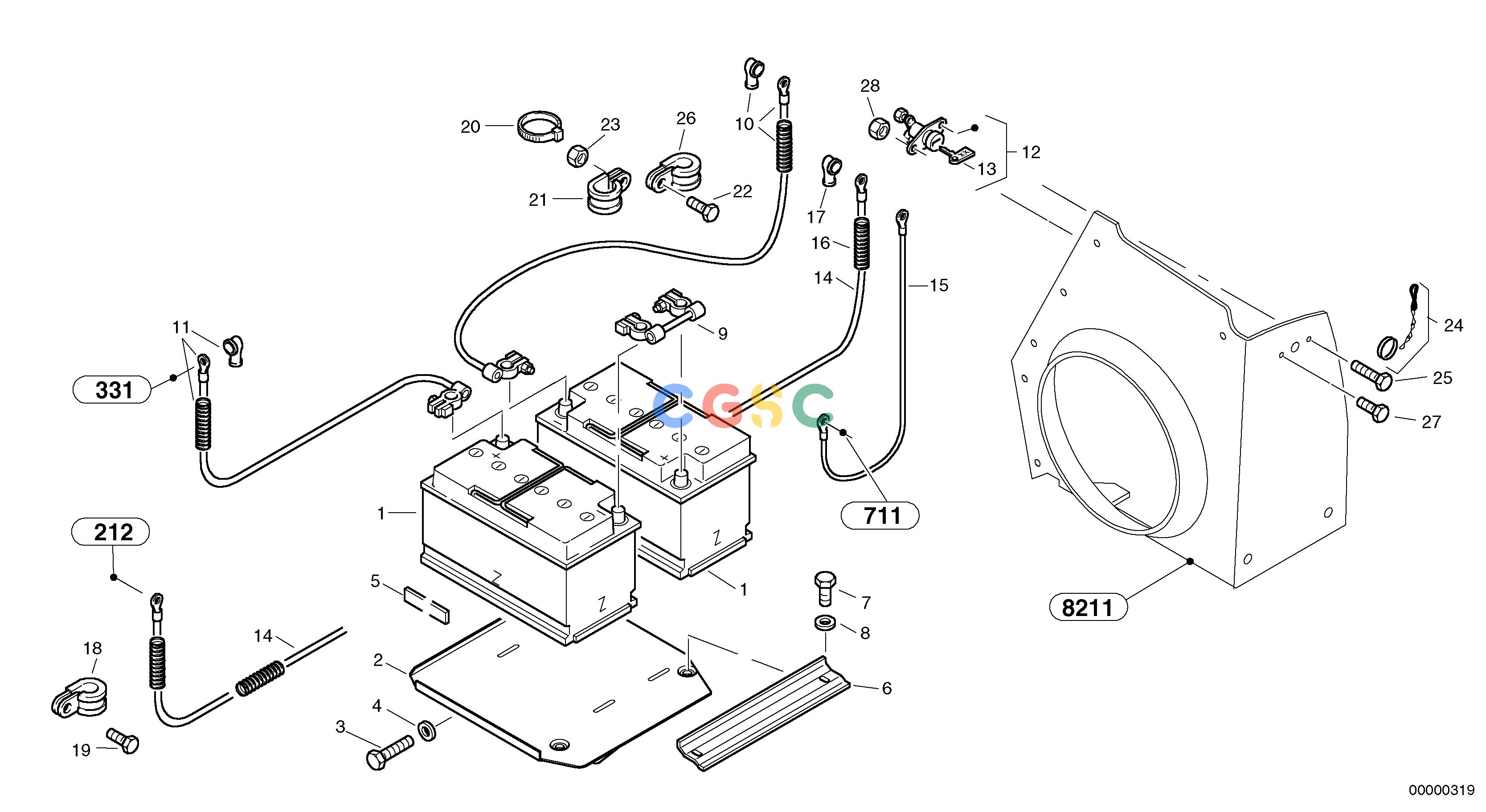

沃尔沃零件查询L40 Battery - Relay-groupTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
583 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11306682
|
[2] |
Battery
|
|
| 2. |
ZM2811518
|
[1] |
Holder
|
|
| 3. |
VOE11305305
|
[4] |
Hexagon screw
|
M10x50
|
| 4. |
VOE930842
|
[4] |
Plain washer
|
10,5
|
| 5. |
ZM4398352
|
[1] |
Sealing strip
|
L = 300MM
|
| 6. |
VOE15622111
|
[1] |
Battery shelf
|
|
| 7. |
VOE983242
|
[2] |
Hexagon screw
|
M8x20
|
| 8. |
VOE11307560
|
[2] |
Washer
|
B8,4
|
| 9. |
ZM2813803
|
[1] |
Wire Assembly
|
|
| 10. |
ZM2813554
|
[1] |
El Cable
|
|
| 11. |
ZM2813552
|
[1] |
Battery Cable
|
|
| 12. |
VOE3987034
|
[1] |
Main switch
|
|
| 13. |
ZM2906786
|
[1] |
Lever
|
|
| 14. |
ZM2813868
|
[1] |
Cable
|
|
| 15. |
ZM2813555
|
[1] |
Cable
|
|
| 16. |
ZM2814285
|
[1] |
Corrugated hose
|
|
| 17. |
ZM1114550
|
[1] |
Cap
|
|
| 18. |
ZM5054800
|
[1] |
Clip
|
D1-16X20
|
| 19. |
ZM7095370
|
[1] |
Screw
|
M8x16
|
| 20. |
ZM4375500
|
[3] |
Cable clamp
|
|
| 21. |
ZM2806377
|
[1] |
Clip
|
|
| 22. |
VOE955269
|
[1] |
Hexagon screw
|
M6x12
|
| 23. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 24. |
ZM2807696
|
[1] |
Chain
|
|
| 25. |
VOE983252
|
[1] |
Hexagon screw
|
|
| 26. |
ZM5242701
|
[1] |
Pipe clip
|
|
| 27. |
VOE13946544
|
[1] |
Screw
|
M6x16
|
| 28. |
ZM7098000
|
[1] |
Nut
|
M6
|
