沃尔沃零件查询L40 AlternatorTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
533 次

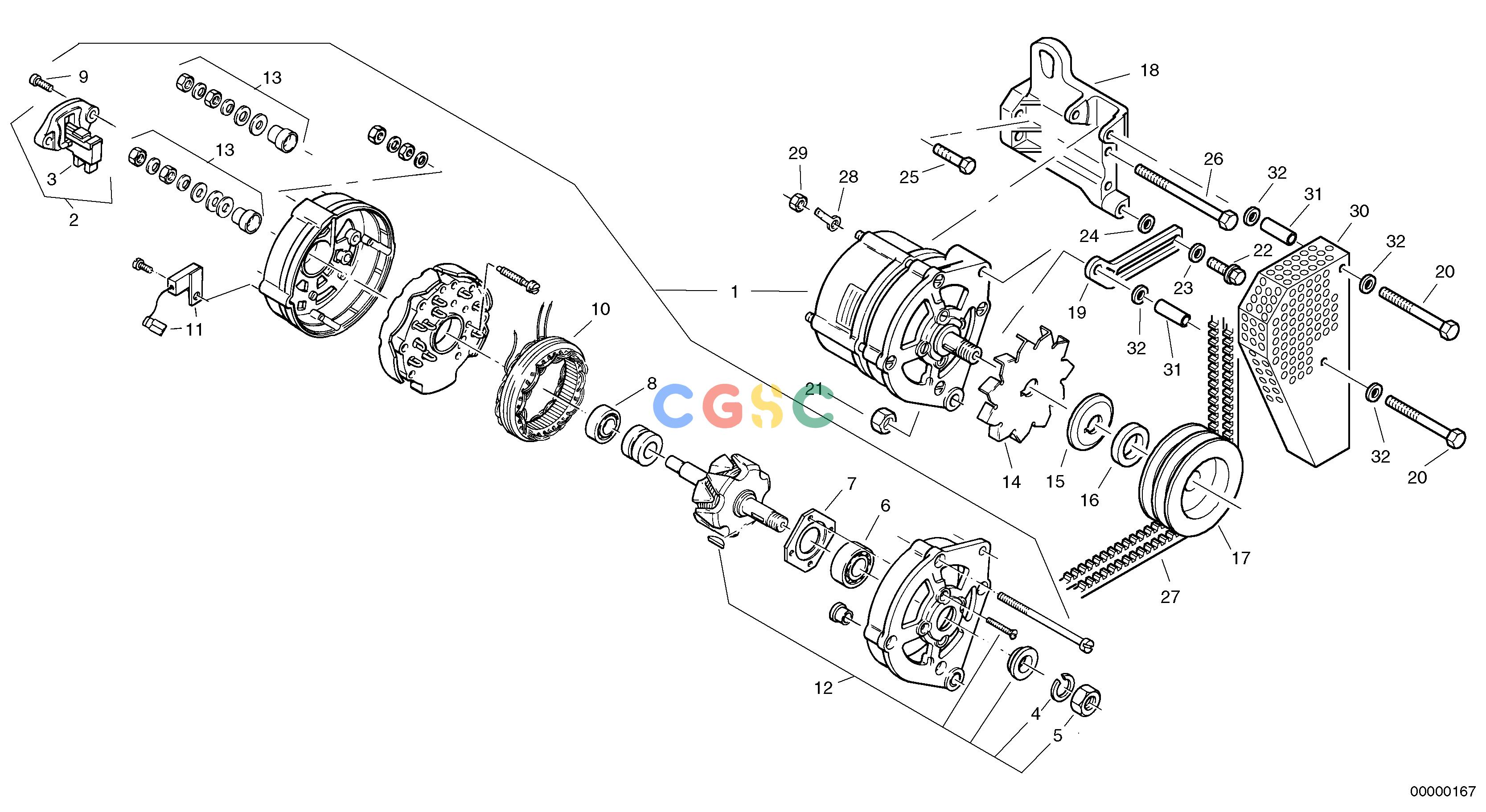

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE20776758
|
[1] |
Alternator
|
|
| 10. |
VOE20460451
|
[1] |
Stator
|
|
| 11. |
VOE20459031
|
[1] |
Capacitor
|
|
| 12. |
VOE20459032
|
[1] |
Small parts kit
|
|
| 13. |
VOE20460452
|
[1] |
Set
|
|
| 14. |
VOE20459039
|
[1] |
Fan
|
|
| 15. |
VOE20405797
|
[1] |
Back-up ring
|
|
| 16. |
ZM2907032
|
[1] |
Washer
|
|
| 17. |
ZM2907030
|
[1] |
Pulley
|
|
| 18. |
ZM2907024
|
[1] |
Bracket
|
|
| 19. |
VOE20405804
|
[1] |
Strap
|
|
| 2. |
VOE20459027
|
[1] |
Bracket
|
|
| 20. |
VOE955309
|
[2] |
Hexagon screw
|
M8x120
|
| 21. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 22. |
VOE20481759
|
[1] |
Screw
|
|
| 23. |
VOE20405802
|
[1] |
Washer
|
|
| 24. |
VOE11305837
|
[1] |
Washer
|
B 8,4
|
| 25. |
VOE11307042
|
[2] |
Hexagon screw
|
M10x35
|
| 26. |
ZM2907026
|
[1] |
Screw
|
M10x190
|
| 27. |
ZM2810878
|
[1] |
V-belt set
|
10x1675
|
| 27. |
ZM2906976
|
[1] |
V-belt
|
10x1700
|
| 28. |
VOE20459038
|
[1] |
Pin
|
|
| 3. |
VOE20459030
|
[1] |
Carbon brush
|
|
| 29. |
VOE955780
|
[1] |
Hexagon nut
|
M5
|
| 30. |
ZM2812464
|
[1] |
Belt Protector
|
|
| 31. |
ZM2165610
|
[2] |
Pipe
|
|
| 32. |
ZM7098750
|
[4] |
Washer
|
B 8,4
|
| 4. |
ZM4332264
|
[1] |
Ring
|
A16
|
| 5. |
VOE20555090
|
[1] |
Nut
|
M16x1,5
|
| 6. |
ZM2907036
|
[1] |
Bearing
|
|
| 7. |
ZM2907037
|
[1] |
Hatch
|
|
| 8. |
ZM2907038
|
[1] |
Bearing
|
|
| 9. |
ZM2907039
|
[2] |
Screw
|
|
