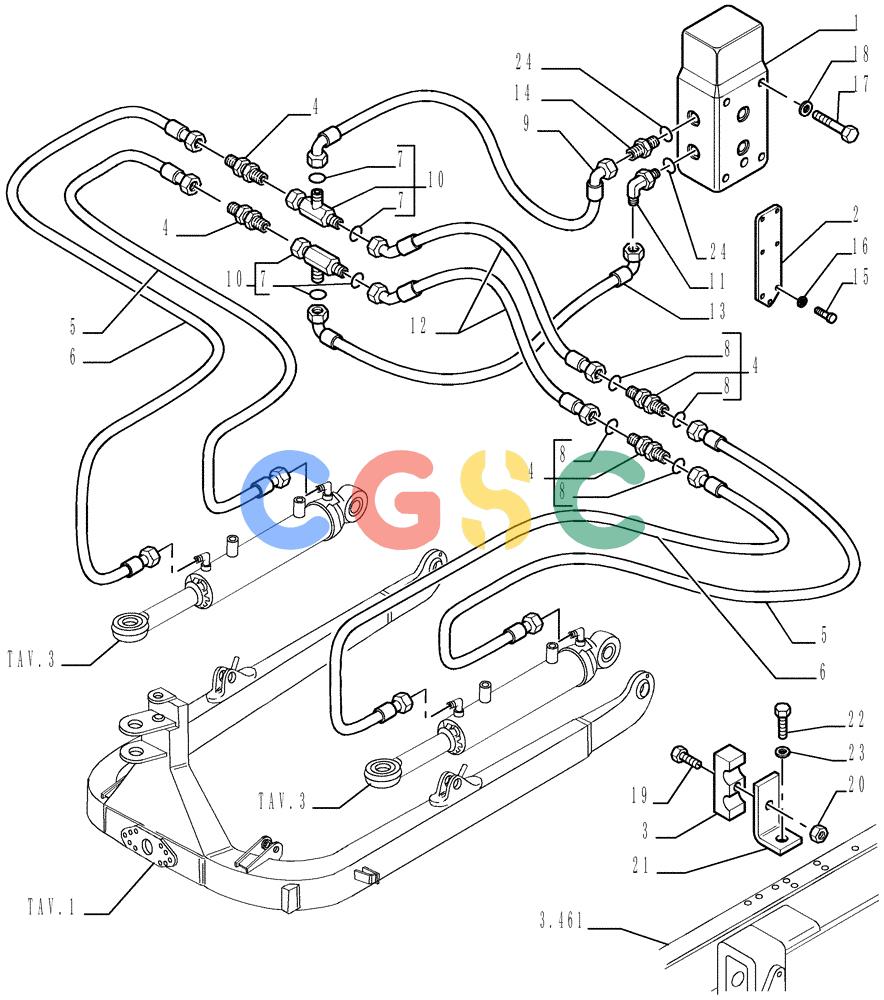

纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.440[04]) - FRONT IMPLEMENT ALL HYDR.- HYDR. SYSTEM - OPTIONAL CODE 76054902 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040313 | [1] | SHUNTER | LEC- ASSY SEE TAV. 9 |
| 2. | 76054870 | [1] | PLATE | TOR |
| 3. | 79076680 | [2] | CLAMP | LEC |
| 4. | 78100066 | [4] | HYD CONNECTOR | LEC- ASSY 16 - A90° |
| 5. | 76054865 | [2] | FLEXIBLE HOSE | LEC |
| 6. | 76054866 | [2] | FLEXIBLE HOSE | LEC |
| 7. | 70930357 | [2] | O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro | LEC Superseded by part number: 9992069 |
| 9. | 76054864 | [1] | HOSE | TOR |
| 10. | 78100053 | [2] | HYD CONNECTOR | LEC- ASSY |
| 11. | 76054861 | [1] | HYD CONNECTOR | LEC |
| 12. | 76054862 | [2] | FLEXIBLE HOSE | LEC |
| 13. | 76054863 | [1] | HOSE | TOR |
| 14. | 76054848 | [1] | HYD CONNECTOR | TOR |
| 15. | 11106431 | [3] | SCREW,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 9515003 |
| 16. | 14496631 | [3] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 17. | 11032331 | [4] | BOLT,Hex, M6 x 90mm, Cl 10.9 | TOR Superseded by part number: 11032321 |
| 18. | 14496431 | [4] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
| 19. | 11107631 | [2] | SCREW,Hex, M10 x 70mm, Cl 10.9 | LEC Superseded by part number: 828-10070 |
| 20. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 21. | 76066330 | [2] | BRACKET | LEC |
| 22. | 11114031 | [2] | BOLT,Hex, M12 x 90, 10.9 | LEC Superseded by part number: 412605 |
| 23. | 14496731 | [2] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 24. | 70923841 | [2] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
