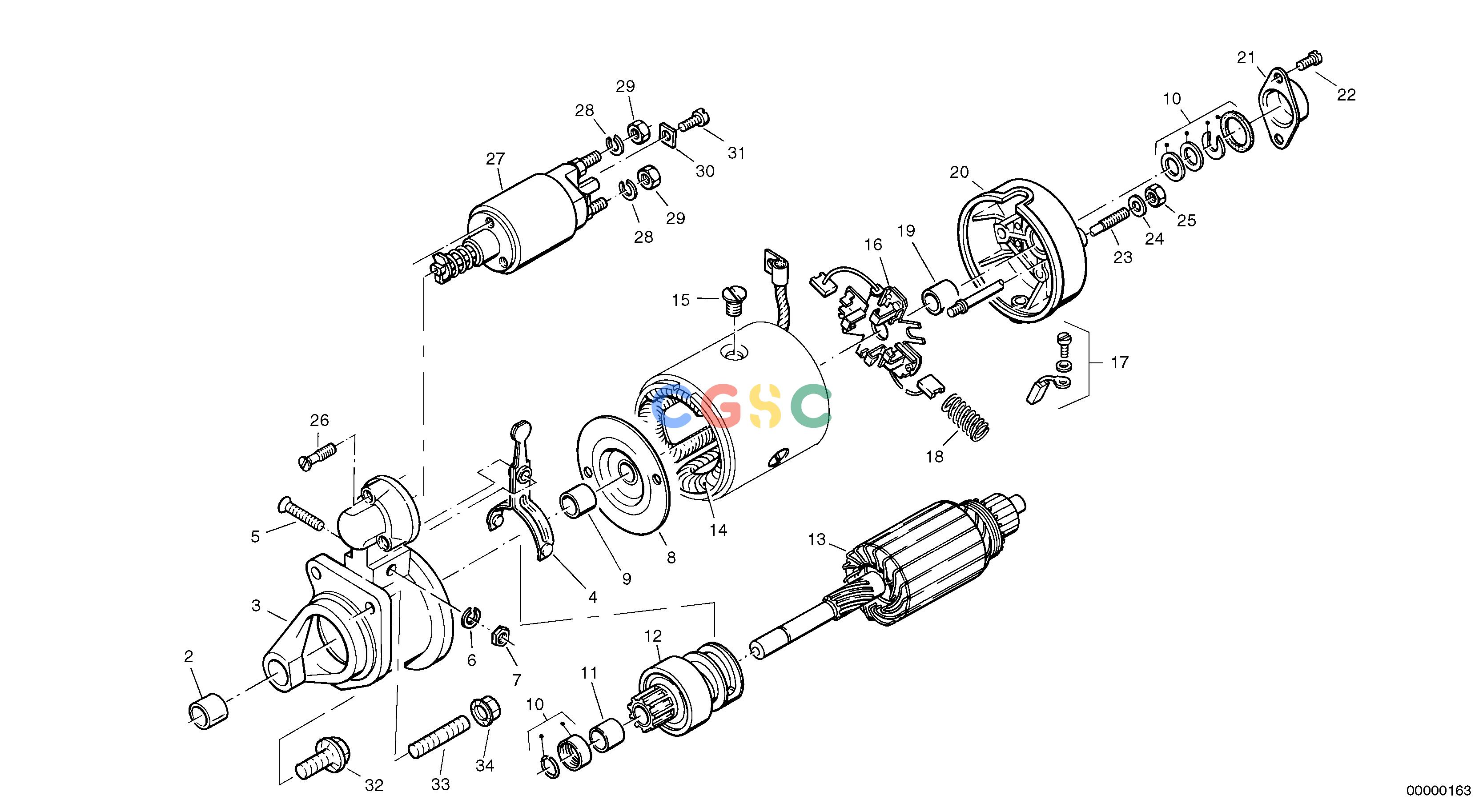

沃尔沃零件查询L40 StarterTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
189 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE21798914
|
[1] |
Starter Motor
|
|
| 10. |
ZM2900446
|
[1] |
Parts kit (armature)
|
|
| 11. |
ZM2900431
|
[1] |
Bush
|
|
| 12. |
VOE888855
|
[1] |
Pinion
|
|
| 13. |
ZM2900427
|
[1] |
Armature
|
|
| 14. |
ZM2900436
|
[1] |
Winding
|
|
| 15. |
ZM2900437
|
[4] |
Screw
|
|
| 16. |
ZM2900445
|
[1] |
Brush holder
|
|
| 17. |
VOE888856
|
[1] |
Carbon brush
|
|
| 18. |
ZM2900438
|
[4] |
Pressure spring
|
|
| 19. |
VOE20460113
|
[1] |
Bearing bushing
|
|
| 2. |
VOE20460112
|
[1] |
Bushing
|
|
| 20. |
ZM2900439
|
[1] |
Bearing
|
|
| 21. |
ZM2900442
|
[1] |
Cap
|
|
| 22. |
VOE13956078
|
[2] |
Screw
|
M5x16
|
| 23. |
ZM2900434
|
[2] |
Stud
|
|
| 24. |
ZM2900441
|
[2] |
Washer
|
|
| 25. |
ZM7098000
|
[2] |
Nut
|
M6
|
| 26. |
ZM2900435
|
[3] |
Screw
|
|
| 27. |
ZM2900448
|
[1] |
Relay
|
|
| 28. |
ZM7098325
|
[2] |
Spring ring
|
A10
|
| 29. |
VOE13971080
|
[2] |
Hexagon nut
|
M10
|
| 3. |
ZM2900449
|
[1] |
Bearing
|
|
| 30. |
ZM2900443
|
[1] |
Brace
|
|
| 32. |
VOE20593357
|
[2] |
Flange screw
|
|
| 33. |
ZM2907028
|
[1] |
Stud
|
|
| 34. |
ZM2907029
|
[1] |
Flange nut
|
|
| 4. |
VOE17439350
|
[1] |
Lever fork
|
|
| 5. |
ZM2900433
|
[1] |
Screw
|
|
| 6. |
VOE20460063
|
[1] |
Spring washer
|
A8
|
| 7. |
VOE982116
|
[1] |
Hexagon nut
|
BM8
|
| 8. |
ZM2900428
|
[1] |
Bearing
|
BM8
|
| 9. |
VOE20460111
|
[1] |
Bearing bushing
|
|
