沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemHot Water OutletEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
656 次

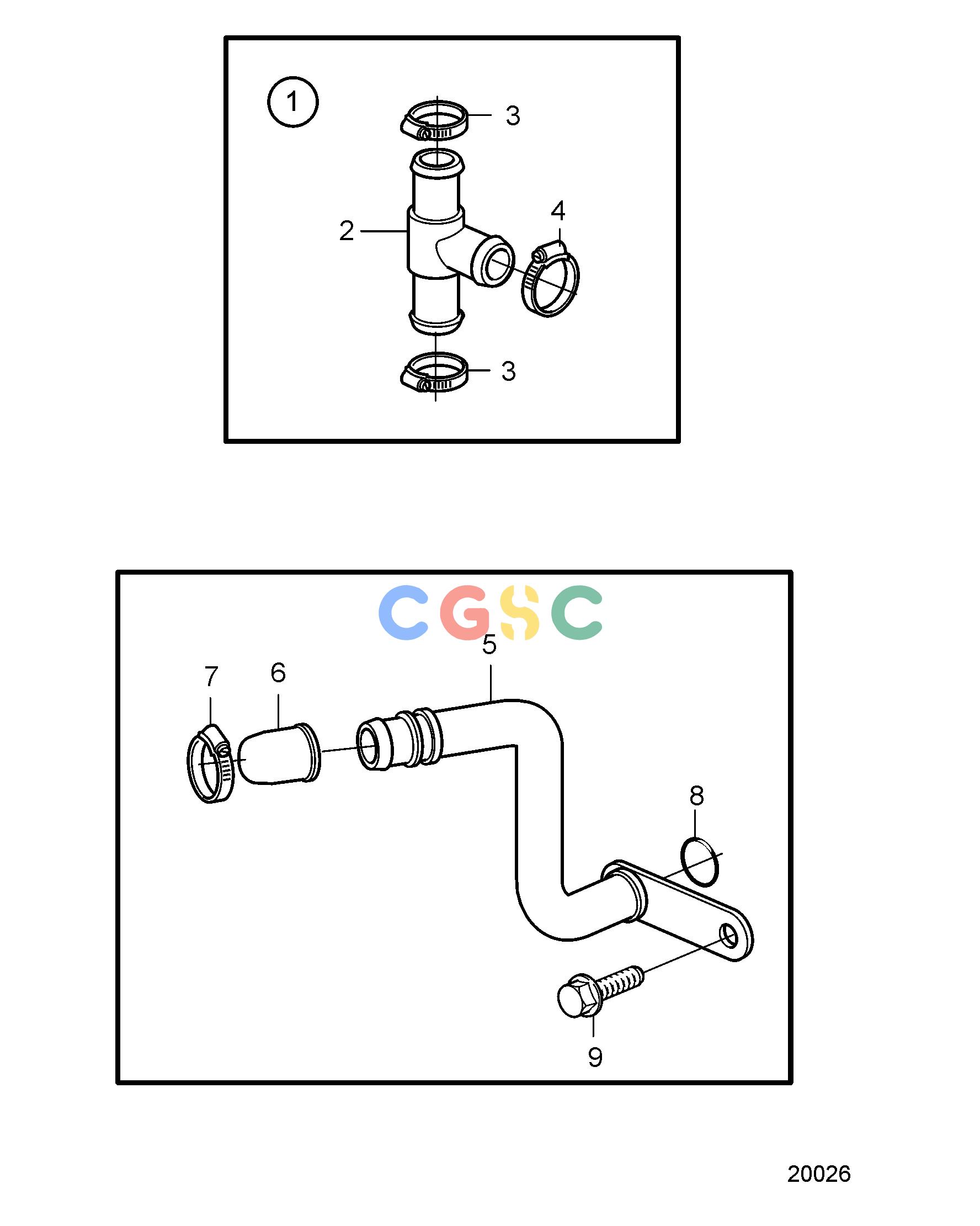

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3588682
|
[1] |
Hot water outlet kit
|
|
| 2. |
3588519
|
[1] |
T-nipple
|
|
| 3. |
961667
|
[2] |
Hose clamp
|
|
| 4. |
961665
|
[1] |
Hose clamp
|
|
| 5. |
30713691
|
[1] |
Pipe
|
(6900069)
|
| 6. |
842235
|
[1] |
Cap
|
|
| 7. |
943472
|
[1] |
Hose clamp
|
|
| 8. |
982292
|
[1] |
O-ring
|
|
| 9. |
968813
|
[1] |
Flange screw
|
|
