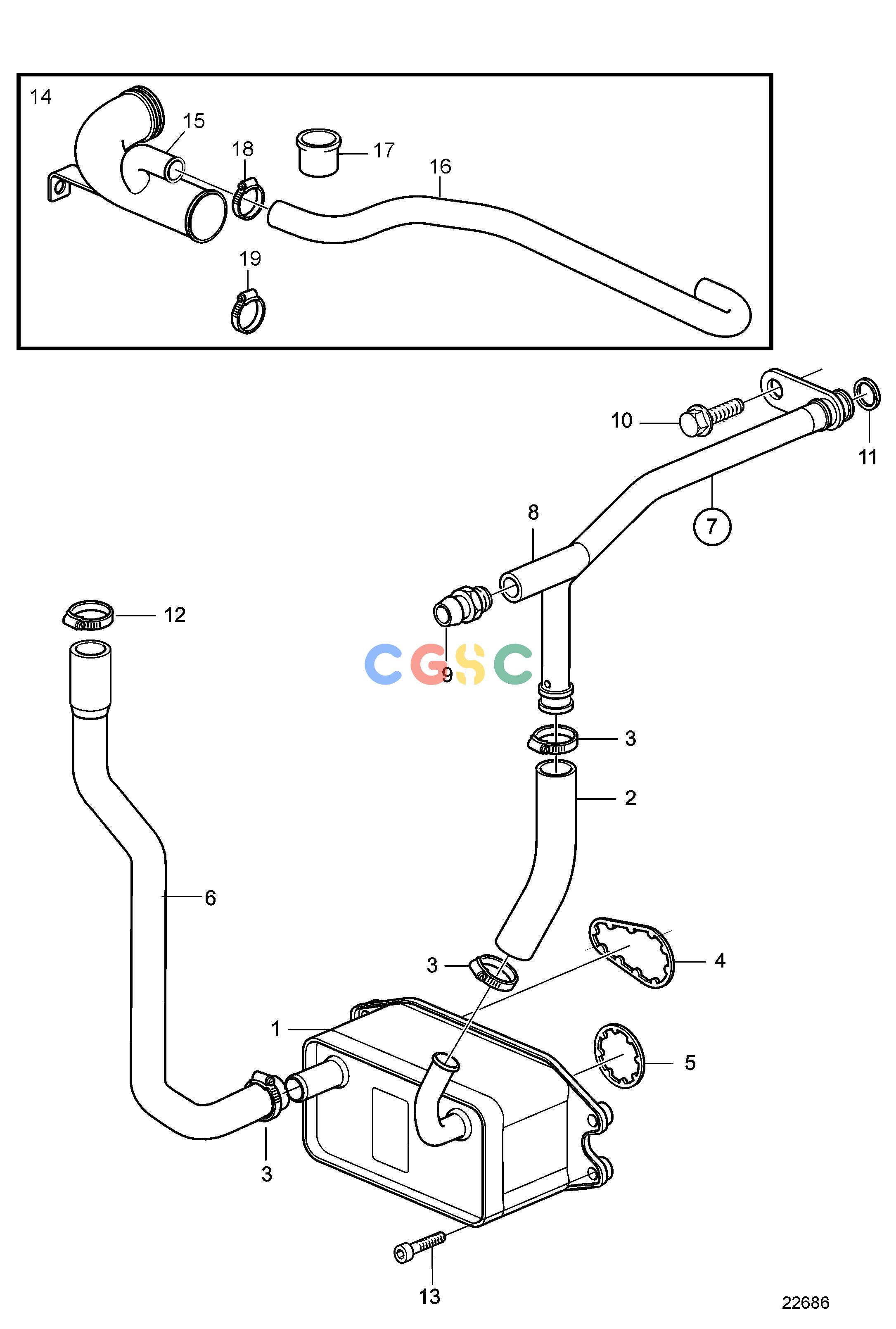

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemOil CoolerEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
404 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
8677973
|
[1] |
Oil cooler
|
Replaced by kit 3888133.
|
| 2. |
3808566
|
[1] |
Hose
|
(31104688)
|
| 3. |
943472
|
[3] |
Hose clamp
|
|
| 4. |
30637199
|
[1] |
Sealing ring
|
|
| 5. |
30637339
|
[1] |
Seal
|
(9463173)
|
| 6. |
3584291
|
[1] |
Hose
|
Superseded by kit 3817479. See fig No 14.
|
| 7. |
8636658
|
[1] |
Pipe
|
|
| 8. |
31104740
|
[1] |
Nipple
|
|
| 9. |
947893
|
[1] |
Shut-off cock
|
|
| 10. |
945444
|
[1] |
Flange screw
|
|
| 11. |
982292
|
[1] |
O-ring
|
|
| 12. |
943473
|
[1] |
Hose clamp
|
|
| 13. |
986318
|
[4] |
Six point socket scr
|
|
| 14. |
3817479
|
[1] |
Coolant pipe
|
|
| 15. |
3817368
|
[1] |
Pipe
|
|
| 16. |
3812465
|
[1] |
Hose
|
|
| 17. |
845422
|
[1] |
Plastic plug
|
|
| 18. |
943472
|
[1] |
Hose clamp
|
|
| 19. |
943473
|
[1] |
Hose clamp
|
|
