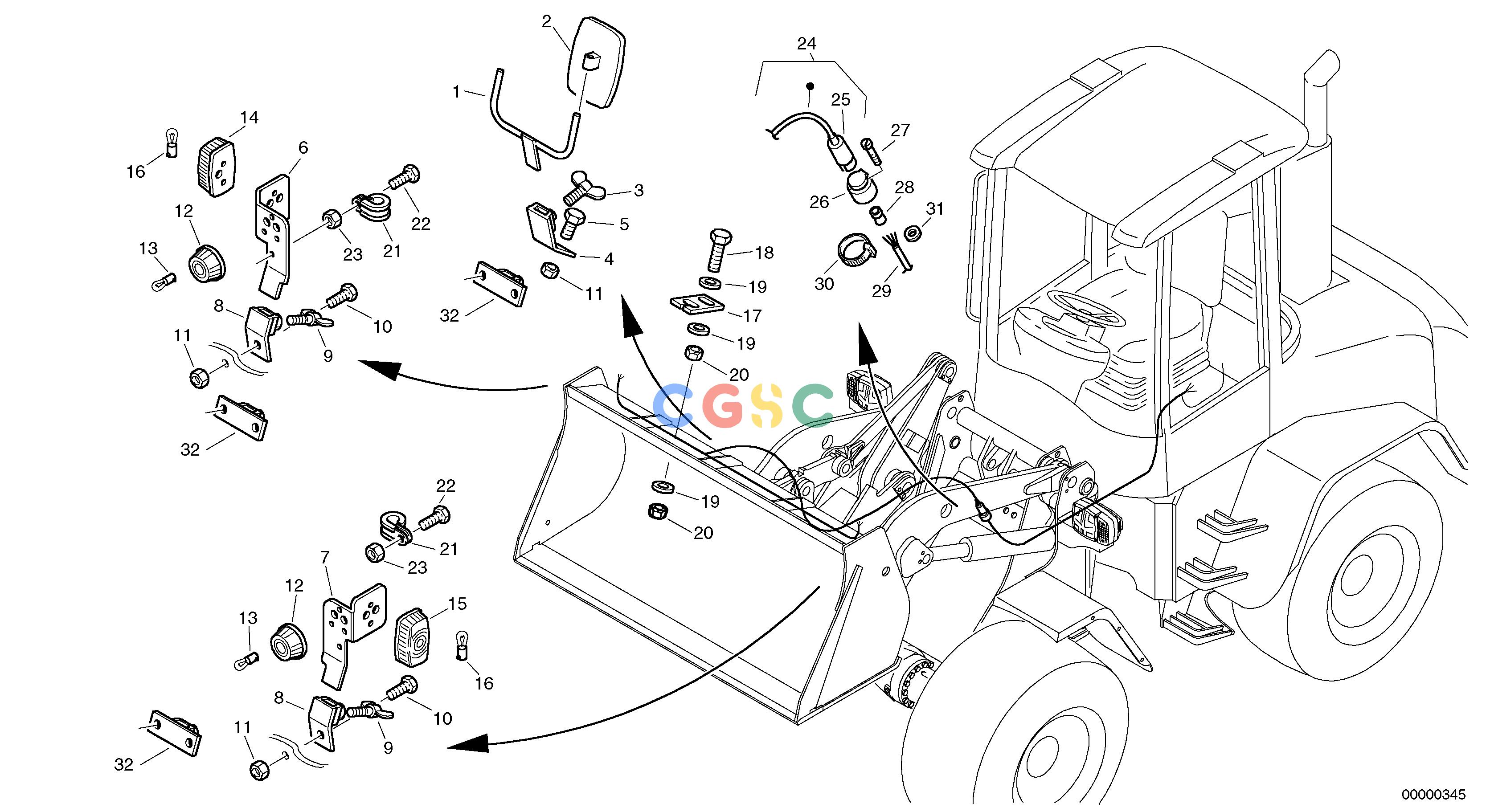

沃尔沃零件查询L40 Additional lighting - SwissTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
400 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2805942
|
[1] |
Mirror Mount
|
|
| 10. |
VOE983251
|
[2] |
Hexagon screw
|
M10x25
|
| 11. |
ZM7098002
|
[2] |
Nut
|
M10
|
| 12. |
VOE11305939
|
[2] |
Side marker lamp
|
|
| 13. |
ZM7050632
|
[2] |
Bulb
|
C11 24V 5W
|
| 14. |
VOE11305938
|
[1] |
Flash light, right-hand
|
|
| 15. |
VOE11305937
|
[1] |
Flash light, left-hand
|
|
| 16. |
VOE992521
|
[1] |
Bulb
|
P21W 24V 21W
|
| 17. |
ZM2805175
|
[1] |
Holder
|
|
| 18. |
VOE983244
|
[1] |
Hexagon screw
|
M8x30
|
| 19. |
ZM7098750
|
[3] |
Washer
|
B 8,4
|
| 2. |
VOE11305894
|
[2] |
Mirror
|
|
| 20. |
ZM7098010
|
[1] |
Nut
|
M8
|
| 21. |
VOE952625
|
[4] |
Clamp
|
|
| 22. |
VOE955246
|
[2] |
Hexagon screw
|
M5x16
|
| 23. |
VOE955780
|
[2] |
Hexagon nut
|
M5
|
| 24. |
ZM2805174
|
[1] |
Wire
|
|
| 25. |
VOE11305928
|
[1] |
Socket
|
B7
|
| 26. |
VOE11305874
|
[1] |
Socket
|
12V
|
| 27. |
ZM4331114
|
[3] |
Screw
|
M5x30
|
| 28. |
VOE11306430
|
[1] |
Cable grommet
|
|
| 29. |
ZM2814138
|
[1] |
Cable
|
|
| 3. |
VOE11305892
|
[1] |
Wing screw
|
M10x25
|
| 30. |
ZM4375500
|
[13] |
Cable clamp
|
|
| 31. |
VOE13940090
|
[1] |
Washer
|
A5,3
|
| 32. |
ZM2815671
|
[1] |
Holder
|
|
| 4. |
ZM2800189
|
[1] |
Retainer
|
|
| 5. |
VOE983251
|
[1] |
Hexagon screw
|
M10x25
|
| 6. |
ZM2805167
|
[1] |
Holder, right
|
|
| 7. |
ZM2805168
|
[1] |
Holder, left
|
|
| 8. |
ZM2800189
|
[2] |
Retainer
|
|
| 9. |
VOE11305892
|
[2] |
Wing screw
|
M10x25
|
