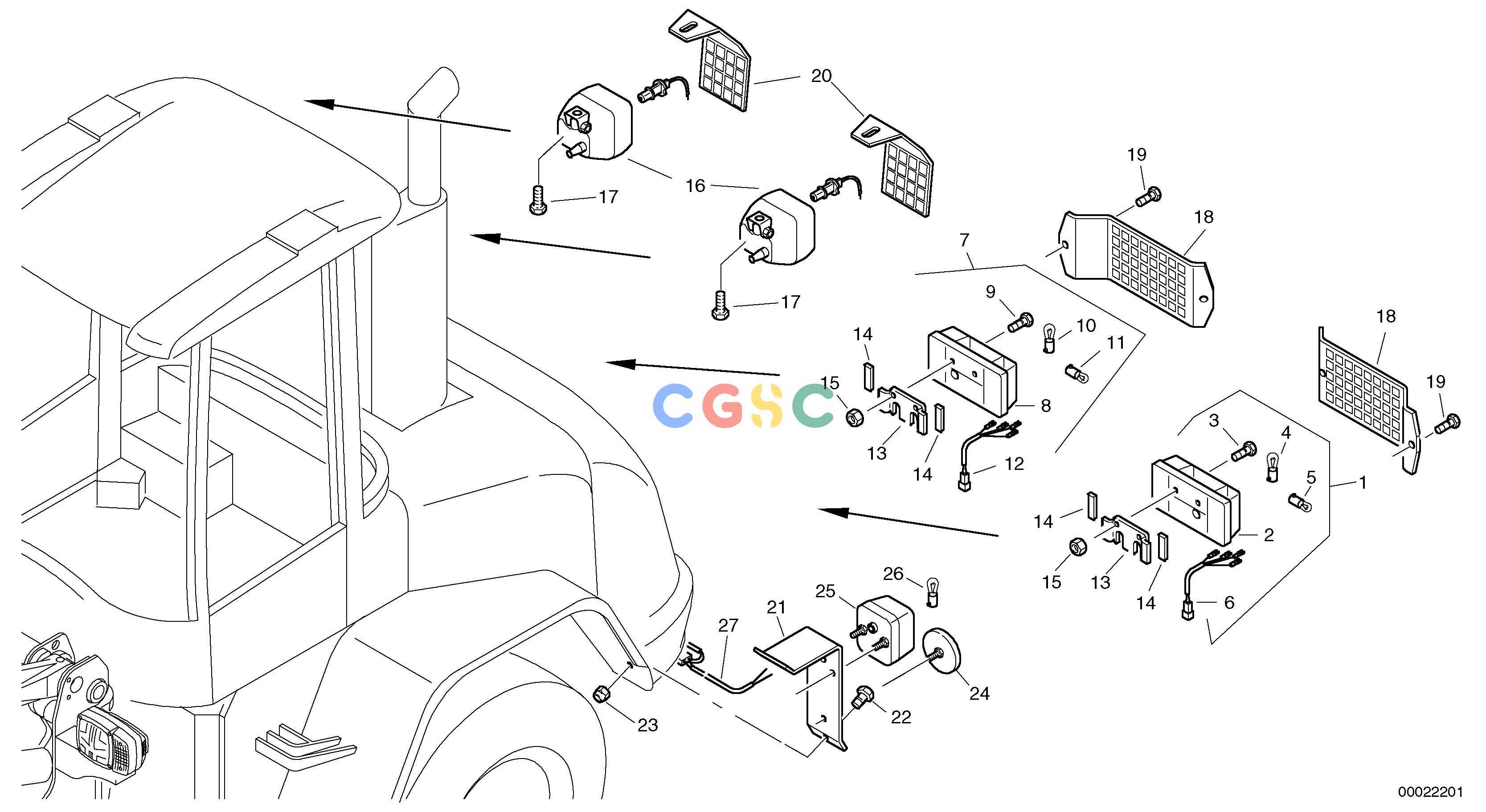

沃尔沃零件查询L40 Lighting, rearTYPE 191, 192 SER NO - 10001910001-1920001NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
399 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
ZM2813419
|
[1] |
Tail lamp
|
|
| 2. |
ZM2804478
|
[1] |
Tail light
|
|
| 3. |
VOE13955272
|
[2] |
Screw
|
M6x20
|
| 4. |
VOE992521
|
[3] |
Bulb
|
P21W 24V 21W
|
| 5. |
ZM7050638
|
[1] |
Bulb
|
R19/10 24V 10W
|
| 6. |
ZM2813297
|
[1] |
Line
|
|
| 7. |
ZM2813420
|
[1] |
Tail lamp
|
|
| 8. |
ZM2804479
|
[1] |
Tail light
|
|
| 9. |
VOE13955272
|
[2] |
Screw
|
M6x20
|
| 10. |
VOE992521
|
[3] |
Bulb
|
P21W 24V 21W
|
| 11. |
ZM7050638
|
[1] |
Bulb
|
R19/10 24V 10W
|
| 12. |
ZM2813299
|
[1] |
Line
|
|
| 13. |
ZM2811120
|
[2] |
Holder
|
|
| 14. |
VOE11305888
|
[4] |
Sealing strip
|
L = 200MM
|
| 15. |
ZM7098422
|
[6] |
Nut
|
VM6
|
| 16. |
ZM2907377
|
[2] |
Work Lamp
|
|
| 17. |
VOE997434
|
[6] |
Hexagon screw
|
M10x20
|
| 18. |
ZM2813896
|
[2] |
Ptct Grating
|
|
| 19. |
ZM7095370
|
[4] |
Screw
|
M8x16
|
| 20. |
ZM2816861
|
[2] |
Protection
|
|
| 21. |
ZM2815204
|
[2] |
Holder
|
|
| 22. |
VOE13955247
|
[4] |
Screw
|
M5x20
|
| 23. |
ZM2907531
|
[4] |
Nut
|
M5
|
| 24. |
ZM2013361
|
[2] |
Reflector
|
|
| 25. |
ZM4374291
|
[2] |
Tail Light
|
|
| 26. |
ZM7050638
|
[2] |
Bulb
|
R19/10 24V 10W
|
| 27. |
ZM2815205
|
[1] |
Cable
|
|
