纽荷兰零件查询(DC150LT) - CRAWLER DOZER (6/00-) (9.440[06]) - FRONT IMPLEMENT ALL HYDR.- HYDR. SYSTEM - OPTIONAL CODE 76054902 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
765 次

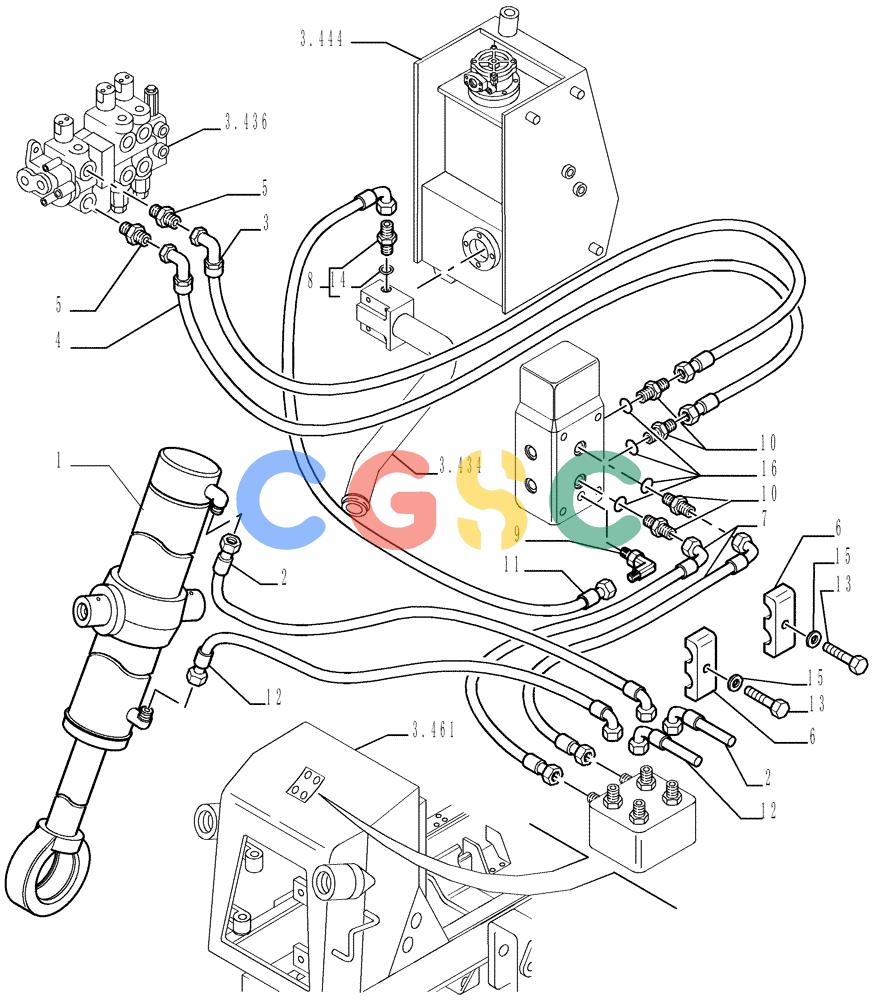

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76043960 | [2] | OPERATING CYLINDER,Double Acting, 50mm Rod, 826mm Stroke | TORSEE TAV.10 |
| 1. | 76043960R | [2] | REMAN-HYD CYLINDER | TORDC150LT |
| 1. | 76043960C | [1] | CORE-HYD CYLINDER | TORReturn Number |
| 2. | 76054853 | [2] | HOSE | TOR |
| 3. | 76054850 | [1] | HOSE | TOR |
| 4. | 76054849 | [1] | HOSE | TOR |
| 5. | 76043754 | [2] | HYD CONNECTOR | LEC |
| 6. | 79076680 | [2] | CLAMP | LEC |
| 7. | 76054851 | [2] | HOSE | TOR |
| 8. | 79066934 | [1] | HYD CONNECTOR | BHB- ASSY |
| 9. | 76041847 | [1] | HYD CONNECTOR | LEC90° |
| 10. | 76054848 | [4] | HYD CONNECTOR | TOR- ASSY |
| 11. | 76054869 | [1] | HOSE | TOR |
| 12. | 76054852 | [2] | FLEXIBLE HOSE | TOR |
| 13. | 16040831 | [4] | BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 43248 |
| 14. | 14437585 | [1] | O-RING,8.00mm ID x 1.50mm | IMO |
| 15. | 12626231 | [4] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 16. | 70923841 | [4] | O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro | LEC Superseded by part number: 9992298 |
