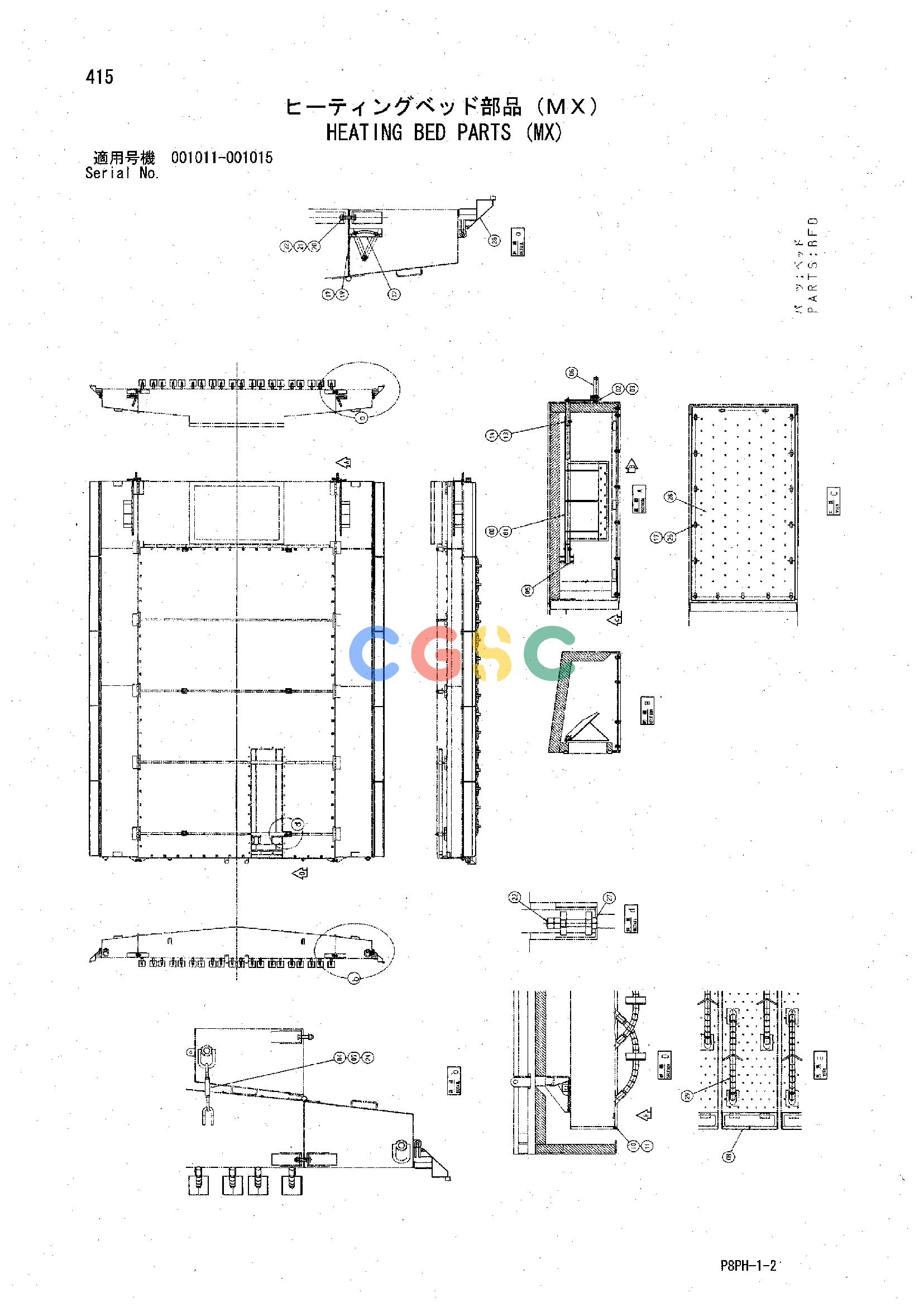

日立零件查询（AR2000）HEATING BED PARTS (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y801931 | [1] | DIAPHRAGM | |
| 01. | Y801932 | [1] | DIAPHRAGM | |
| 02. | Y801896 | [1] | LEVER | |
| 03. | Y801897 | [1] | LEVER | |
| 04. | Y408029 | [2] | LUG | |
| 05. | Y407850 | [2] | PIN | |
| 06. | Y970843 | [2] | BODY | |
| 07. | Y971057 | [2] | BODY | |
| 08. | Y801653 | [8] | SHEET-METAL | |
| 10. | A740513 | [8] | PIN | |
| 11. | 4022695 | [8] | PIN;LOCK | |
| 12. | Y410861 | [2] | PLATE | |
| 13. | J900835 | [4] | BOLT | |
| 14. | M500807 | [4] | NUT | |
| 17. | A590908 | [38] | WASHER;SPRING | |
| 19. | J900816 | [4] | BOLT | |
| 20. | J921670 | [4] | BOLT | |
| 21. | A590116 | [4] | WASHER;PLANE | |
| 22. | J950016 | [16] | NUT | |
| 24. | Y410186 | [4] | LUG | |
| 25. | J900820 | [34] | BOLT | |
| 26. | Y200308 | [2] | SHEET-METAL | |
| 27. | J921690 | [6] | BOLT | |
| 28. | Y700853 | [10] | SHIELD | |
| 29. | Y410319 | [150] | BLADE;WIRE | |
