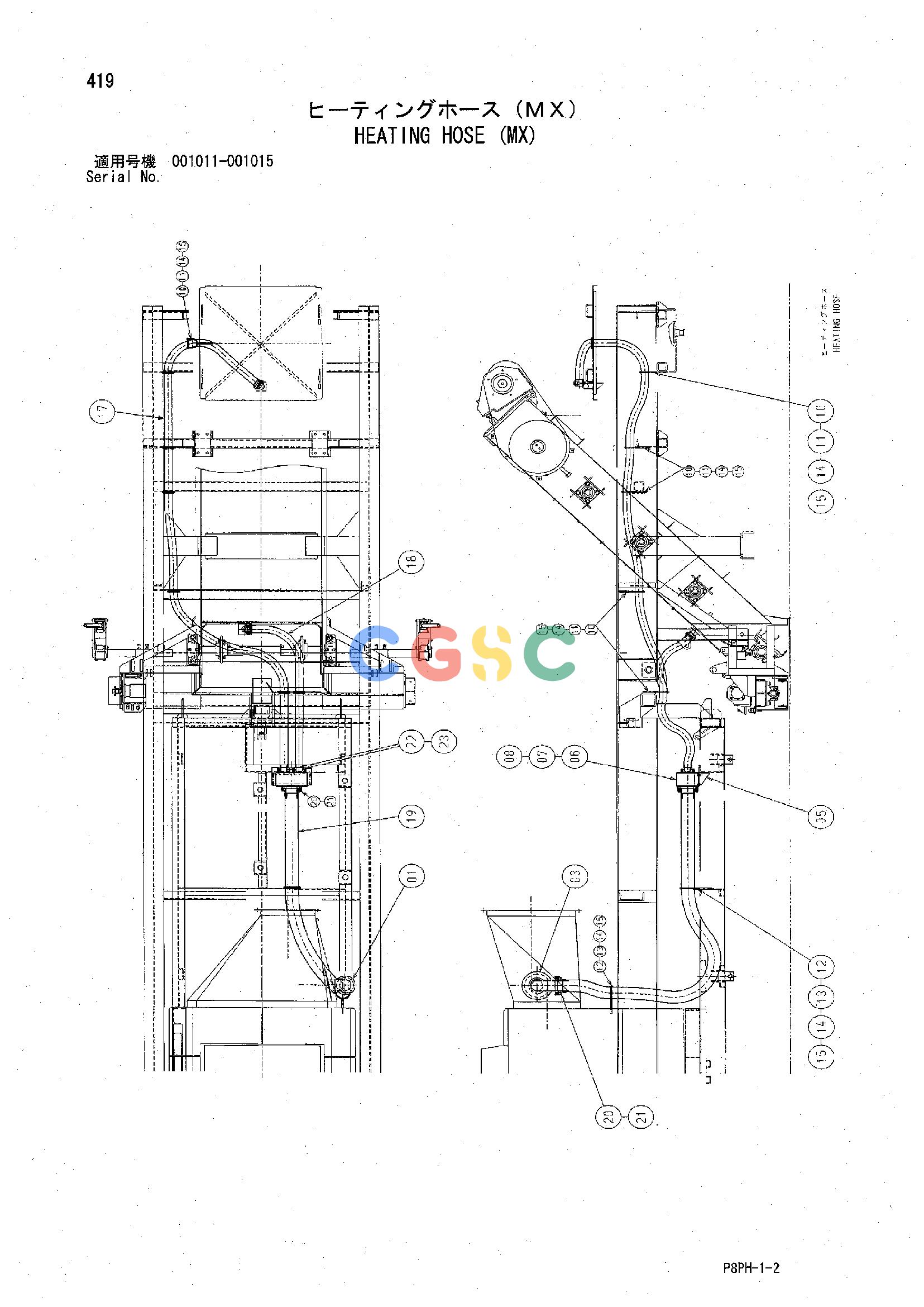

日立零件查询（AR2000）HEATING HOSE (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
169 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y802401 | [1] | FLANGE;PIPE | |
| 03. | Y414615 | [2] | PLATE | |
| 05. | Y971618 | [1] | BRACKET | |
| 06. | Y802397 | [1] | BOX;HEATING | |
| 07. | J901025 | [4] | BOLT | |
| 08. | A590910 | [4] | WASHER;SPRING | |
| 10. | Y971082 | [10] | CLAMP | |
| 11. | Y414616 | [10] | PLATE | |
| 12. | Y971619 | [4] | CLAMP | |
| 13. | Y414617 | [4] | PLATE | |
| 14. | M500807 | [56] | NUT | |
| 15. | A590908 | [28] | WASHER;SPRING | |
| 17. | Y414618 | [1] | HOSE | |
| 18. | Y414619 | [1] | HOSE | |
| 19. | Y414620 | [1] | HOSE | |
| 20. | J901645 | [16] | BOLT | |
| 21. | A590916 | [16] | WASHER;SPRING | |
| 22. | J901235 | [16] | BOLT | |
| 23. | A590912 | [16] | WASHER;SPRING | |
