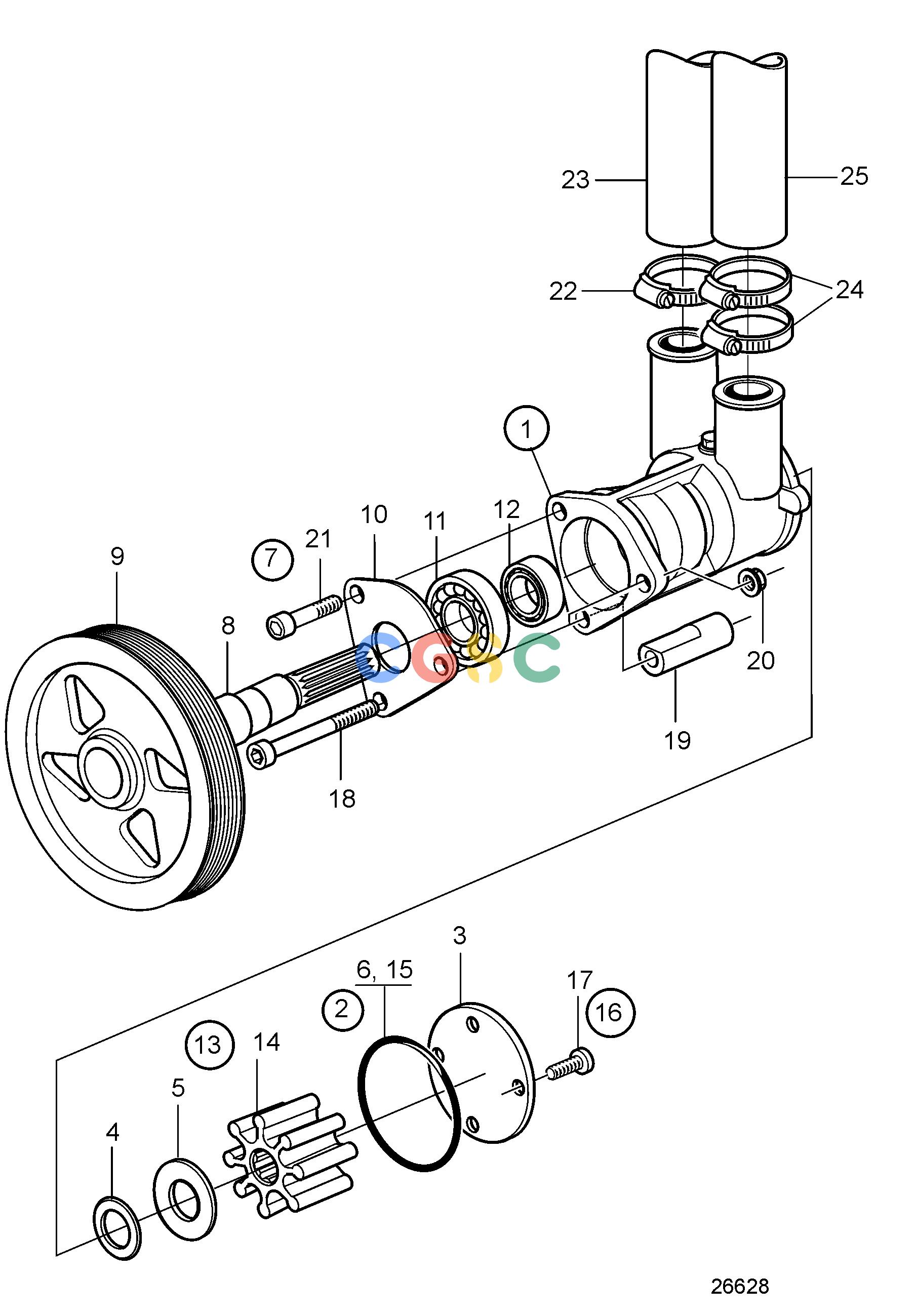

沃尔沃零件查询D3-110I-A; D3-110I-B; D3-110I-C; D3-130A-A; D3-130I-A; D3-130A-B; D3-130I-B; D3-130A-C; D3-130I-C; D3-160A-A; D3-160I-A; D3-160A-B; D3-160I-Cooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
447 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21141637
|
[1] |
Sea water pump
|
|
| 2. |
21951384
|
[1] |
Wear kit
|
|
| 3. |
3584353
|
[1] |
Cap
|
|
| 4. |
3584349
|
[1] |
Sealing ring
|
|
| 5. |
827247
|
[1] |
Sealing ring
|
|
| 6. |
3583809
|
[1] |
O-ring
|
|
| 7. |
21951439
|
[1] |
Shaft kit
|
|
| 8. |
|
|
|
|
| 9. |
|
|
|
|
| 10. |
|
|
|
|
| 11. |
|
|
|
|
| 12. |
181800
|
[1] |
Ball bearing
|
|
| 13. |
21951352
|
[1] |
Impeller kit
|
|
| 13. |
3593660
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 13. |
21381693
|
[1] |
Impeller kit
|
Replaced by next part number
|
| 14. |
|
|
|
|
| 15. |
3583809
|
[1] |
O-ring
|
|
| 16. |
21951334
|
[1] |
Screw kit
|
|
| 17. |
21346724
|
[4] |
Hexagon screw
|
M5x12mm, Use screw kit 21951334
|
| 18. |
959227
|
[2] |
Hex. socket screw
|
M8x50mm
|
| 19. |
3884647
|
[1] |
Spacer sleeve
|
|
| 20. |
945408
|
[1] |
Flange nut
|
|
| 21. |
959222
|
[1] |
Hex. socket screw
|
M8x25mm
|
| 22. |
993964
|
[1] |
Hose clamp
|
|
| 23. |
3584355
|
[1] |
Hose
|
Sea water pump-heat exchanger.
|
| 24. |
993963
|
[2] |
Hose clamp
|
|
| 25. |
3584356
|
[1] |
Hose
|
Sea water pump-oil cooler.
|
