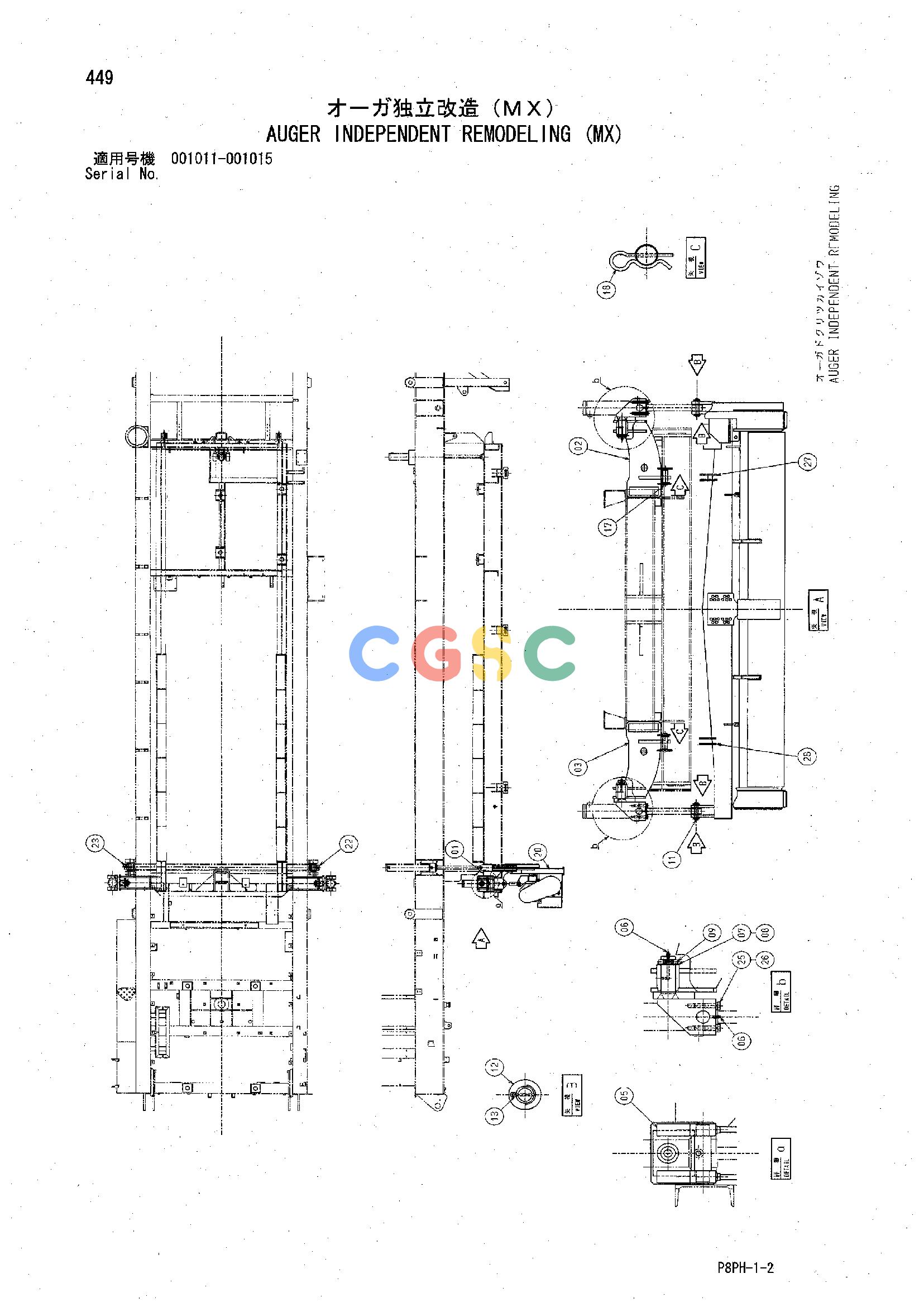

日立零件查询（AR2000）AUGER INDEPENDENT REMODELING (MX) Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
683 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y411902 | [2] | PLATE | |
| 02. | Y802096 | [1] | BRACKET | |
| 02. | Y802177 | [1] | BRACKET | |
| 03. | Y802097 | [1] | BRACKET | |
| 03. | Y802178 | [1] | BRACKET | |
| 05. | Y801761 | [2] | BRACKET | |
| 05. | Y802131 | [2] | BRACKET | |
| 06. | J75481 | [6] | FITTING;GREASE | |
| 07. | Y412451 | [4] | SHIM | |
| 08. | Y410823 | [2] | SHIM | |
| 09. | Y971423 | [2] | CLAMP | |
| 11. | Y410349 | [2] | PIN | |
| 11. | Y412450 | [2] | PIN | |
| 12. | A590124 | [10] | WASHER;PLANE | |
| 13. | A764040 | [4] | PIN;SPLIT | |
| 17. | Y970884 | [2] | PIN | |
| 18. | K422098 | [2] | PIN;LOCK | |
| 20. | Y412575 | [1] | AUGER | |
| 20. | Y413716 | [1] | AUGER | |
| 22. | Y411901 | [1] | GUIDE | |
| 22. | Y971513 | [1] | GUIDE | |
| 23. | Y411901 | [1] | GUIDE | |
| 23. | Y971514 | [1] | GUIDE | |
| 25. | J921680 | [8] | BOLT | |
| 26. | A590916 | [8] | WASHER;SPRING | |
| 27. | Y971425 | [1] | BRACKET | |
| 28. | Y971426 | [1] | BRACKET | |
