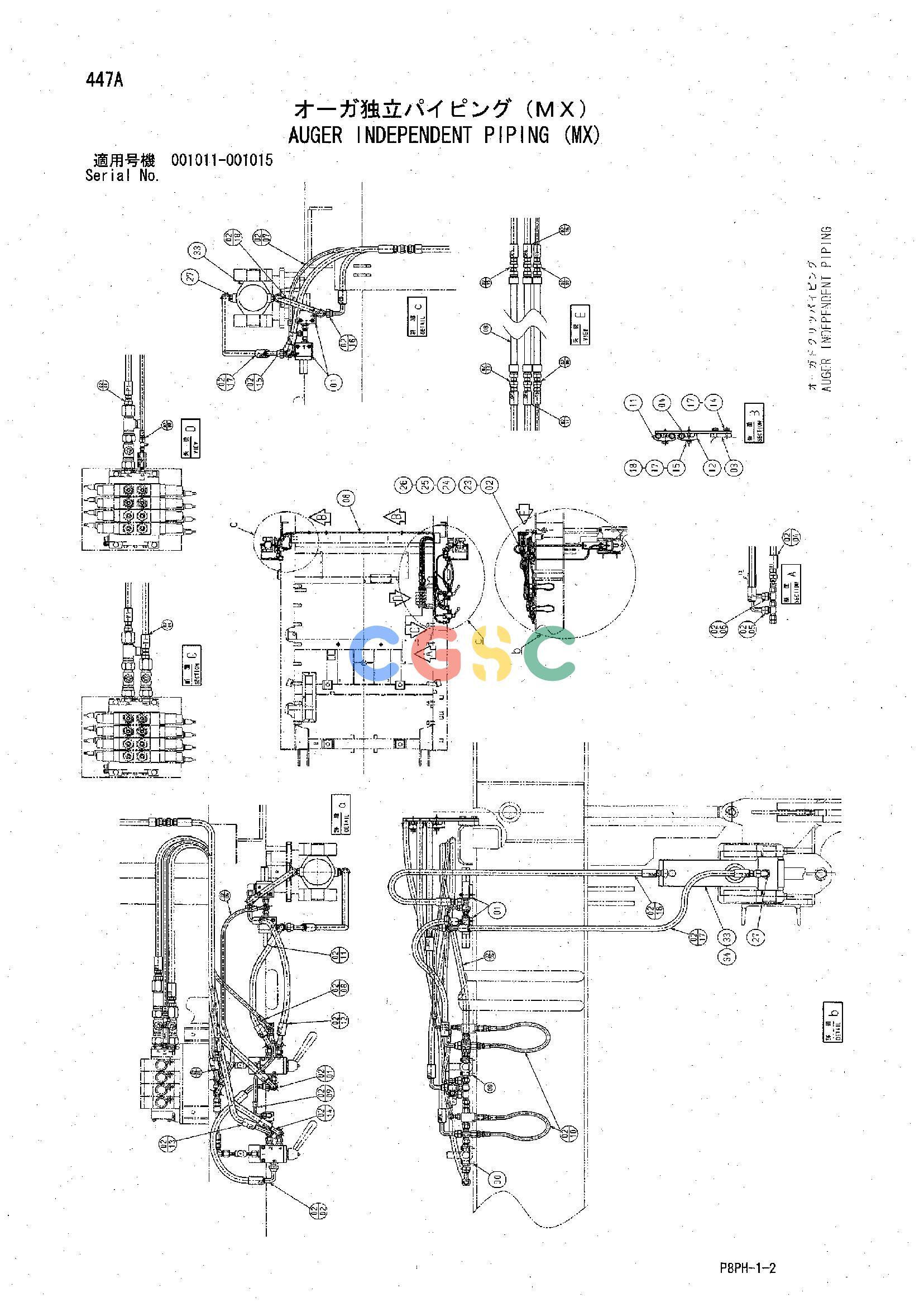

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 00. | Y412583 | [2] | SEAT;SCREW | |
| 01. | Y412584 | [4] | SEAT;SCREW | |
| 02. | Y412605 | [1] | HOSE ASS'Y | |
| 0201. | +++++++ | [1] | HOSE | (P1) 3/4-16(90)X3/4-16(ST)-1700 20.5MPa |
| 0202. | +++++++ | [1] | HOSE | (P2) 3/4-16(45)X3/4-16(90)-560 20.5MPa |
| 0204. | +++++++ | [1] | HOSE | (T1) 3/4-16(ST)X3/4-16(ST)-1930 3.0MPa |
| 0205. | +++++++ | [1] | HOSE | (T2) 9/16-18(90)X3/4-16(90)-750 3.0MPa |
| 0206. | +++++++ | [1] | HOSE | (T3) 3/4-16(90)X3/4-16(ST)-1185 3.0MPa |
| 0207. | +++++++ | [1] | HOSE | (T4) 9/16-18(90)X3/4-16(ST)-620 3.0MPa |
| 0208. | +++++++ | [1] | HOSE | (LS1) 7/16-20(ST)X7/16-20(90)-1600 20.5MPa |
| 0209. | +++++++ | [1] | HOSE | (LS2) 7/16-20(90)X7/16-20(ST)-340 20.5MPa |
| 0210. | +++++++ | [2] | HOSE | (LS3) 7/16-20(ST)X7/16-20(ST)-520 20.5MPa |
| 0211. | +++++++ | [1] | HOSE | (OP1) 3/4-16(90)X3/4-16(90)-465 20.5MPa |
| 0212. | +++++++ | [1] | HOSE | (OP2) 3/4-16(90)X3/4-16(90)-650 20.5MPa |
| 0213. | +++++++ | [1] | HOSE | (OP3) 3/4-16(90)X3/4-16(ST)-1420 20.5MPa |
| 0214. | +++++++ | [1] | HOSE | (OP4) 3/4-16(90)X3/4-16(ST)-1420 20.5MPa |
| 0215. | +++++++ | [1] | HOSE | (OP5) 3/4-16(90)X3/4-16(ST)-760 20.5MPa |
| 0216. | +++++++ | [1] | HOSE | (OP6) 3/4-16(90)X3/4-16(ST)-520 20.5MPa |
| 0217. | +++++++ | [2] | HOSE | (OP7) 3/4-16(45)X3/4-16(ST)-1130 20.5MPa |
| 0218. | +++++++ | [2] | HOSE | (OP8) 3/4-16(ST)X3/4-16(ST)-1290 20.5MPa |
| 03. | Y412586 | [2] | SEAT;SCREW | |
| 04. | Y412587 | [2] | STAY | |
| 08. | Y971428 | [3] | PIPE | |
| 11. | 4053593 | [2] | CLAMP;PIPE | |
| 12. | 4053594 | [2] | CLAMP;PIPE | |
| 14. | J901025 | [4] | BOLT | |
| 15. | J901045 | [4] | BOLT | |
| 17. | A590910 | [8] | WASHER;SPRING | |
| 18. | A590110 | [4] | WASHER;PLANE | |
| 23. | 4044420 | [30] | PROTECTOR | (LARGE) |
| 24. | 4327315 | [40] | PROTECTOR | (SMALL) |
| 25. | 4055312 | [20] | CLIP;BAND | (L=250) |
| 26. | 4121859 | [10] | CLIP;BAND | (L=382) |
| 27. | 88-2008 | [4] | ELBOW | PARKER 8-12C50XSS |
| 27. | A852334 | [4] | ELBOW;S | |
| 33. | +++++++ | [2] | CYL.;AUGER | SEALUM B33-12.5-14-H 1155 |
| 33. | Y412543 | [2] | CYL.;AUGER | |
| 34. | Y410730 | [1] | KIT;SEAL |
